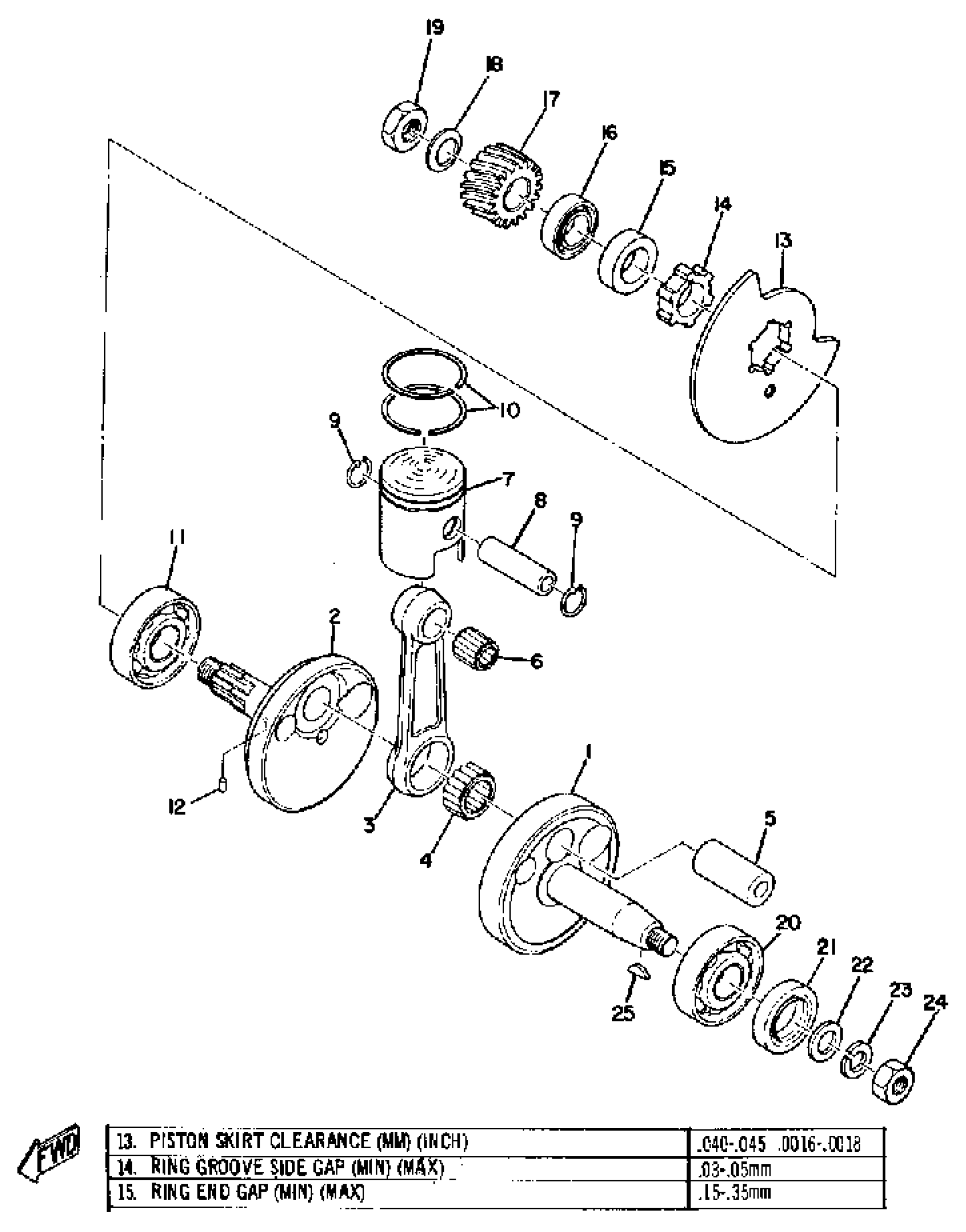

Yamaha JT2MX (JT2_JT2MX) 1972 CRANK - PISTON Diagram

#

Description
Price

1

CRANK 1

(259-11412-00-00)

Unavailable

1

CRANKSHAFT ASSEMBLY

(356-11400-00-00)

Unavailable

2

CRANK 2

(259-11422-00-00)

Unavailable

3

ROD, CONNECTING

3R1-11651-01-00

$125.99

4

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

5

PIN, CRANK 1

257-11681-10-00

$29.99

6

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

$35.99

7

PISTON STD

289-11631-00-96

Unavailable

7

PISTON 1 O/S 0.25

289-11635-00-00

Unavailable

7

PISTON 2 O/S 0.50

289-11636-00-00

Unavailable

8

PIN, PISTON

102-11633-02-00

Unavailable

9

CIRCLIP 132116340000

93450-13022-00

$8.49

10

PISTON RINGSET 1ST

388-11601-10-00

Unavailable

10

PISTON RINGSET 2ND

288-11601-20-00

Unavailable

10

PISTON RINGSET STD

388-11601-00-00

Unavailable

11

BRG,R-B 6303 47MM 115G NK

93306-30302-00

Unavailable

12

PIN,DOWEL (257)

93603-08067-00

Unavailable

13

VALVE, ROTARY

99999-03082-00

Unavailable

14

COLLAR, VALVE

(257-13515-00-00)

Unavailable

15

COLLAR

(90387-17135-00)

Unavailable

16

OIL SEAL (28X47X8-137)

93103-28012-00

Unavailable

17

GEAR, PRI DRIVE

(257-16111-00-00)

Unavailable

18

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

19

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable

20

BEARING(1GJ)

93306-20458-00

Unavailable

21

OIL SEAL (20X35X7-136)

93102-20009-00

Unavailable

22

WASHER (492)

90201-12535-00

Unavailable

23

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

24

NUT(3DM)

95304-12600-00

Unavailable

25

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

26

PISTON KIT

(289-11630-00-00)

Unavailable

26

PISTON 1 O/S 0.25

289-11635-00-00

Unavailable

26

PISTON 2 O/S 0.50

289-11636-00-00

Unavailable
