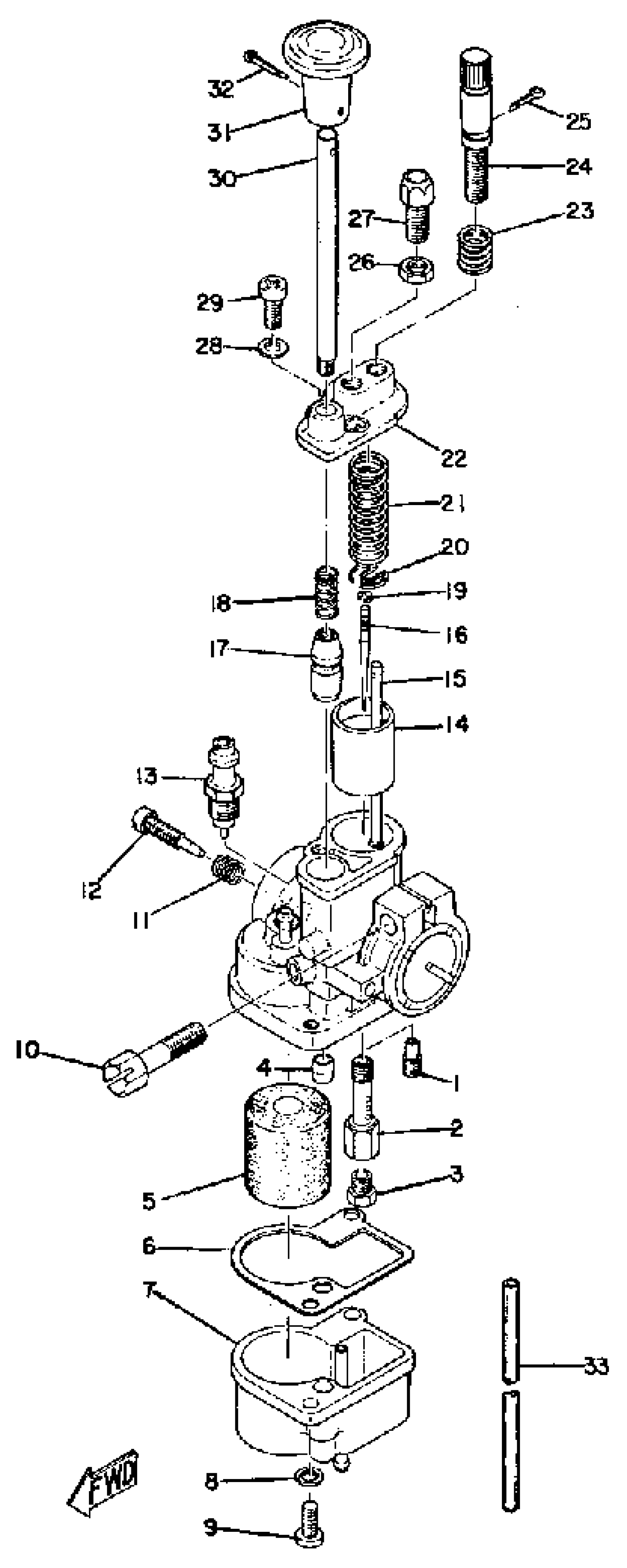

Yamaha JT2MX (JT2_JT2MX) 1972 CARBURETOR Diagram

#

Description

Price

1

CARBURETOR ASSEMBLY 1

288-14301-60-00

Unavailable

1

JET, PILOT #38

(288-14342-38-00)

Unavailable

2

NOZZLE, MAIN

(288-14341-01-00)

Unavailable

3

. JET, MAIN #78

288-14343-39-00

Unavailable

3

. JET, MAIN #80

288-14343-40-00

Unavailable

3

JET, MAIN #82

288-14343-41-00

Unavailable

4

JET, STARTER #50

(288-14344-25-00)

Unavailable

5

FLOAT

288-14385-00-00

Unavailable

6

GASKET, FLOAT CHMBR

288-14384-00-00

Unavailable

7

BODY, FLOAT CHAMBER

(288-14381-00-00)

Unavailable

8

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

9

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

10

. SCREW, CABLE ADJUSTING

288-14124-00-00

Unavailable

11

SPRING, AIR ADJUSTING

288-14334-00-00

Unavailable

12

SCREW, THROTTLE

(288-14321-00-00)

Unavailable

13

NEEDLE VALVE ASSEMBLY

288-14390-10-00

Unavailable

14

VALVE, THROTTLE 1

288-14312-15-00

Unavailable

15

VALVE, THROTTLE 1

288-14312-15-00

Unavailable

16

NEEDLE

288-14336-00-00

Unavailable

17

PLUNGER, STARTER

288-14371-00-00

Unavailable

18

SPRING, THRTL VALVE

(288-14331-00-00)

Unavailable

19

. CLIP

288-14137-00-00

Unavailable

20

. CLIP

288-14137-00-00

Unavailable

21

SPRING, THRTL VALVE

(288-14331-00-00)

Unavailable

22

GASKET, INSULATING

367-14156-00-00

Unavailable

23

SPRING, THRTL STOP

(288-14333-00-00)

Unavailable

24

SCREW, THROTTLE

(288-14321-00-00)

Unavailable

25

. PIN, COTTER

91490-12012-00

Unavailable

26

NUT, CABLE ADJUSTING

85L-14161-00-00

Unavailable

27

. SCREW, CABLE ADJUSTING

288-14124-00-00

Unavailable

28

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

29

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

30

PLUNGER, STARTER

288-14371-00-00

Unavailable

31

KNOB STARTER

288-14118-00-00

Unavailable

32

PIN, COTTER

91490-16020-00

Unavailable

33

HOSE

(90445-05016-00)

Unavailable
