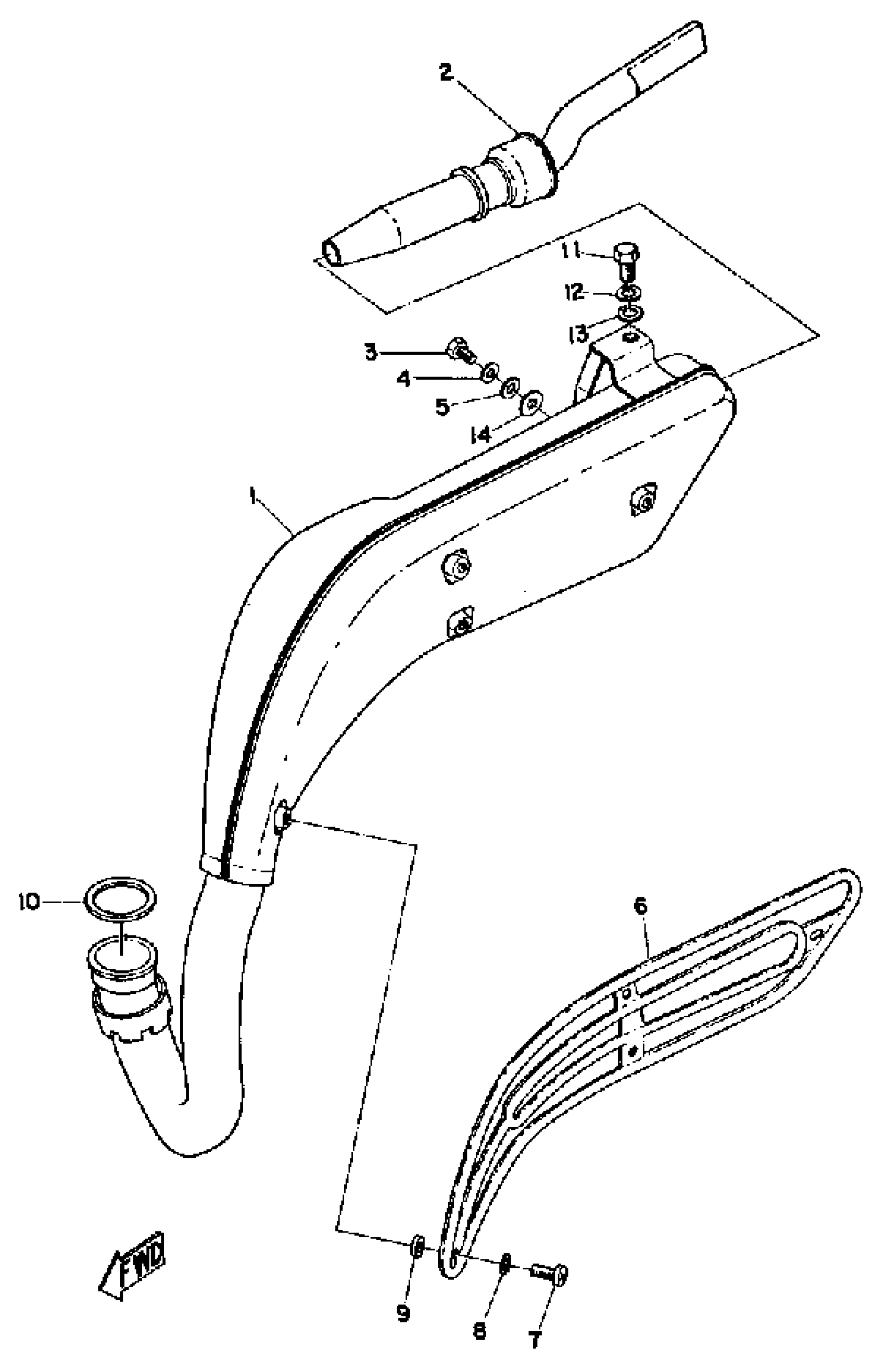

Yamaha JT1L (JT1_JT1L) 1971 MUFFLER Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

(288-14610-31-00)

Unavailable

2

PIPE, OUTLET

(288-14752-31-00)

Unavailable

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

4

WASHER, SPRING

92995-06100-00

$2.95

5

WASHER, PLATE

90201-06M08-00

$2.16

6

PROTECTOR, MUFF 1

(288-14718-30-00)

Unavailable

7

SCREW, BIND(1JK)

98980-06010-00

$5.47

8

WASHER, PLATE(3MB)

90202-05187-00

$1.01

9

WASHER, PLATE(3MT)

90202-05188-00

$5.76

10

GASKET, EXHAUST PIPE

3MT-14613-00-00

$8.92

11

BOLT(62E)

97013-08012-00

Unavailable

12

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

13

WASHER, PLAIN

92990-08200-00

$2.36

14

GASKET(1MH)

90430-05223-00

Unavailable
