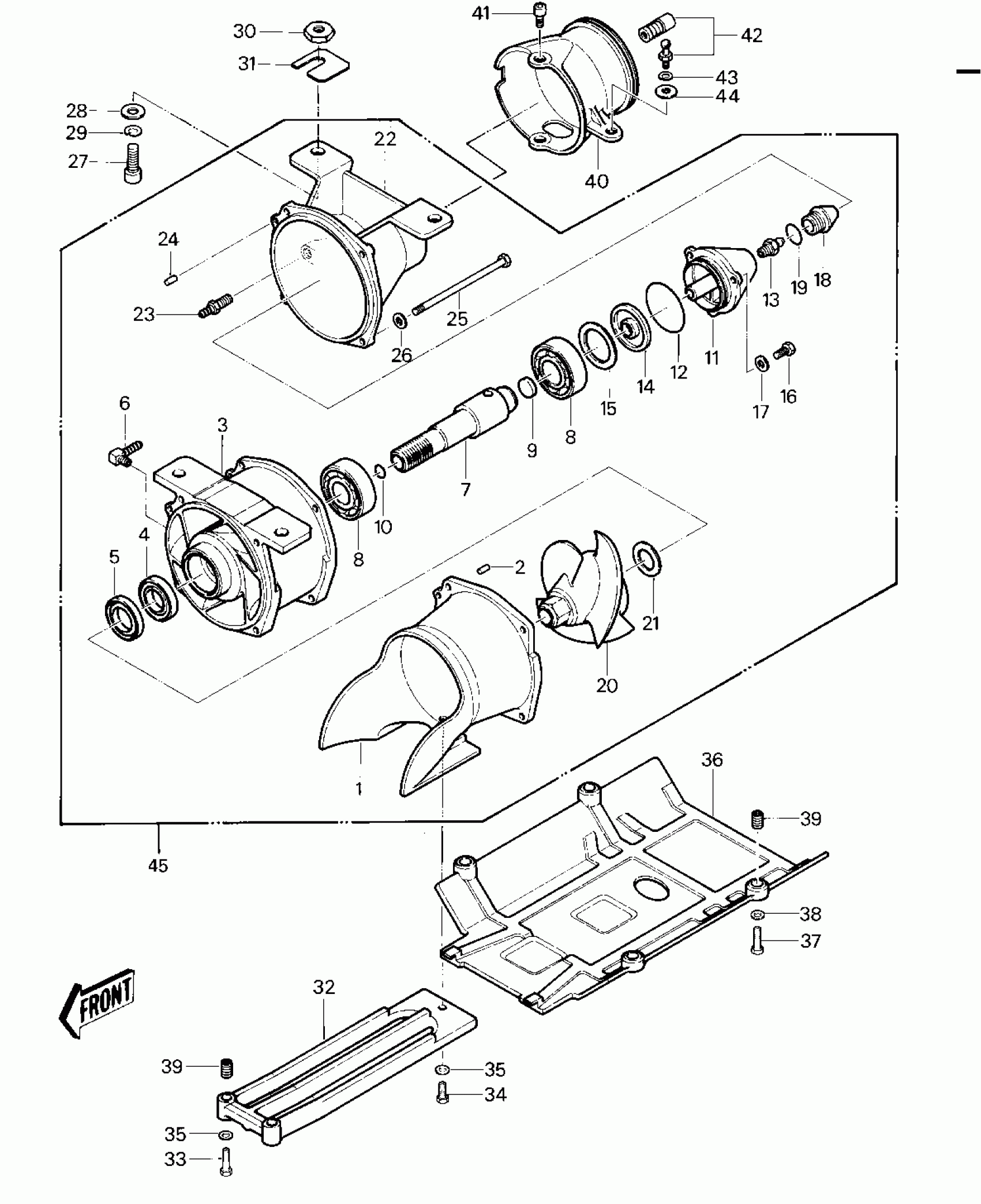

Kawasaki JS550 JET PUMP Diagram
#
1
CASE-PUMP
59336-3702
Unavailable
2
PIN-DOWEL
551R0612
$4.69
3
VANE-GUIDE
59496-3002
$566.26
4
SEAL-OIL
92049-3010
Unavailable
5
SEAL-OIL
92049-3011
Unavailable
6
ELBOW
52014-3002
$34.82
7
SHAFT,PUMP
13107-3007
Unavailable
8
BALL BEARING,#6206
601B6206
$22.50
9
PLUG,PUMP SHAFT
92066-3013
$6.62
10
RING-O
92055-3019
Unavailable
11
CAP
11012-3009
Unavailable
12
RING-O,59.6X2.4
92055-3018
$6.22
13
FITTING,GREASE
92005-501
Unavailable
14
PLUG,CAP
92066-3014
Unavailable
15
SHIM,T=0.15
92025-502
Unavailable
15
SHIM,T=0.3
92025-503
Unavailable
16
BOLT,6X20
110R0620
$5.31
17
WASHER-PLAIN,6MM
411S0600
$2.06
18
CAP,GREASE FITTING
11012-3010
Unavailable
19
O RING,20MM
670B2020
$1.22
20
IMPELLER
59256-3704
Unavailable
21
SHIM,T=1.0MM
92025-3022
Unavailable
21
SHIM,T=2.0MM
92025-3023
Unavailable
21
SHIM,T=1.5MM
92025-3025
Unavailable
22
NOZZLE-PUMP
59136-3713
Unavailable
23
FITTING,HOSE
92005-3001
$10.88
24
PIN-DOWEL
551R0612
$4.69
25
BOLT,6X125
110R06125
$8.80
26
WASHER-PLAIN,6MM
411S0600
$2.06
27
BOLT-SOCKET
120R1025
$9.17
28
WASHER-PLAIN,10MM
411S1000
$2.67
29
WASHER-SPRING,10MM
461S1000
$1.03
30
NUT,10MM
92015-3005
Unavailable
31
SHIM,T=0.3MM
92025-3701
Unavailable
31
SHIM,T=0.5MM
92025-3702
Unavailable
31
SHIM,T=1.0MM
92025-3703
Unavailable
31
SHIM,T=1.5MM
92025-3704
Unavailable
32
GRATE
59366-3001
Unavailable
33
BOLT,6X25
110R0625
$3.20
34
BOLT,6X14
110R0614
$3.40
35
WASHER-PLAIN,6MM
411S0600
$2.06
36
COVER-JET PUMP
59446-3002
$164.32
37
BOLT,6X25
110R0625
$3.20
38
WASHER-PLAIN,6MM
411S0600
$2.06
39
NUT,INSERT,6MM
92015-523
Unavailable
40
NOZZLE-STRG
59476-3702
Unavailable
41
BOLT,SOCKET,6X11
92001-3701
$14.67
42
JOINT-BALL
59266-3707
$66.16
43
WASHER-SPRING,6MM
461S0600
$1.07
44
WASHER
92022-567
$2.67
45
PUMP-ASSY-JET
59486-3701
$2,035.70
