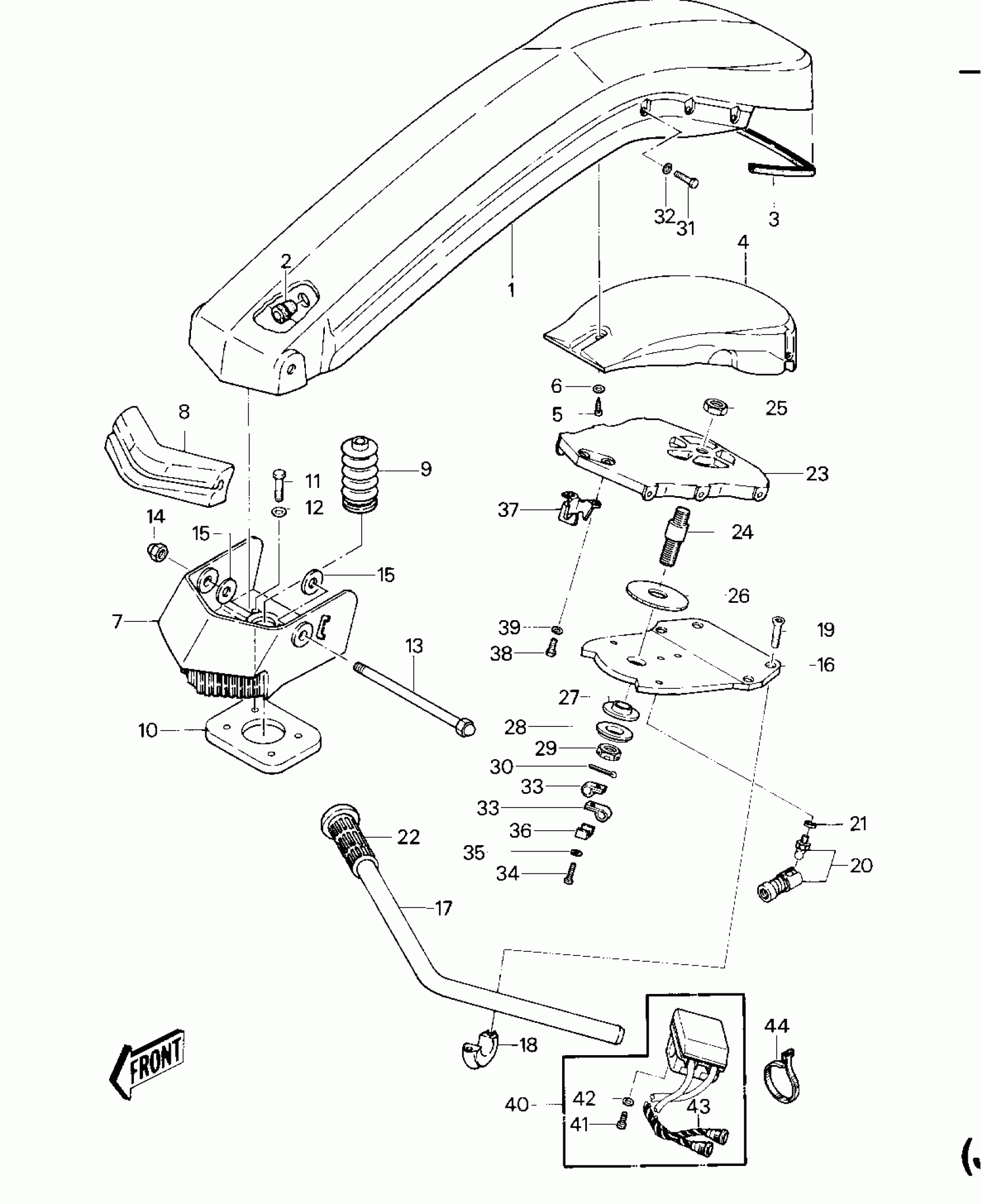

Kawasaki JS550 HANDLE POLE/SWITCHES (JS550-A1/A2) Diagram

#

Description
Price

1

POLE-HANDLE,JET WHITE

59166-3002-8C

Unavailable

2

GROMMET

92071-530

$5.85

3

GROMMET

92071-534

Unavailable

3

GROMMET

92071-534

Unavailable

5

SCREW

92011-562

$1.23

6

WASHER

92022-563

$0.90

7

BRACKET-HANDLE-POLE,S

39021-3701-F2

$168.97

8

DAMPER

92075-519

Unavailable

9

CAP.

59176-514

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

BOLT,8X30

92150-3721

Unavailable

12

WASHER-PLAIN,8MM

411S0800

$2.15

13

BOLT,14X183

92001-3018

Unavailable

14

NUT,14MM

92015-507

Unavailable

15

WASHER,15X36X4.5

92022-3024

Unavailable

16

PLATE,HANDLEBAR

13169-3004

Unavailable

17

HANDLEBAR

32032-3017

$60.00

18

CLAMP,HANDLEBAR

92037-503

$15.14

19

SCREW-COUNTERSUNK,8X22

92009-3004

$5.72

20

JOINT-BALL

59266-3707

$59.33

21

WASHER-SPRING,6MM

461S0600

$0.84

22

GRIP,HANDLE,RH

46075-3704

Unavailable

23

BRACKET,SUPPORT

11046-3847

Unavailable

24

STUD

92004-3006

$48.68

25

NUT,16M/M

92015-536

$14.07

26

BUSHING

92028-512

Unavailable

27

BUSHING

92028-513

Unavailable

28

WASHER

92022-571

$36.85

29

NUT,CASTLE,18MM

92015-3006

$38.59

30

PIN-COTTER,4X40

550S4040

$5.51

31

BOLT,6X16

110R0616

Unavailable

32

WASHER-PLAIN,6MM

411S0600

$1.49

33

CLAMP,LEAD WIRE

92037-3007

$7.22

34

SCREW-PAN-CROS

220R0516

$4.59

35

WASHER-SPRING,5MM

461S0500

$0.54

36

WASHER,CLAMP

92022-3014

$4.24

37

HOLDER-CABLE

14044-3001

Unavailable

38

BOLT 6X12

110R0612

Unavailable

39

WASHER-SPRING,6MM

461S0600

$0.84

40

SWITCH-ASSY

27004-3002

$273.30

41

SCREW,PAN HEAD,5X20

220R0520A

$2.31

42

W-PLAIN-S,5MM

410S0500

$1.20

43

TUBE,SPIRAL

92059-3010

$4.85

44

BAND,L=149

92072-031

$3.81
