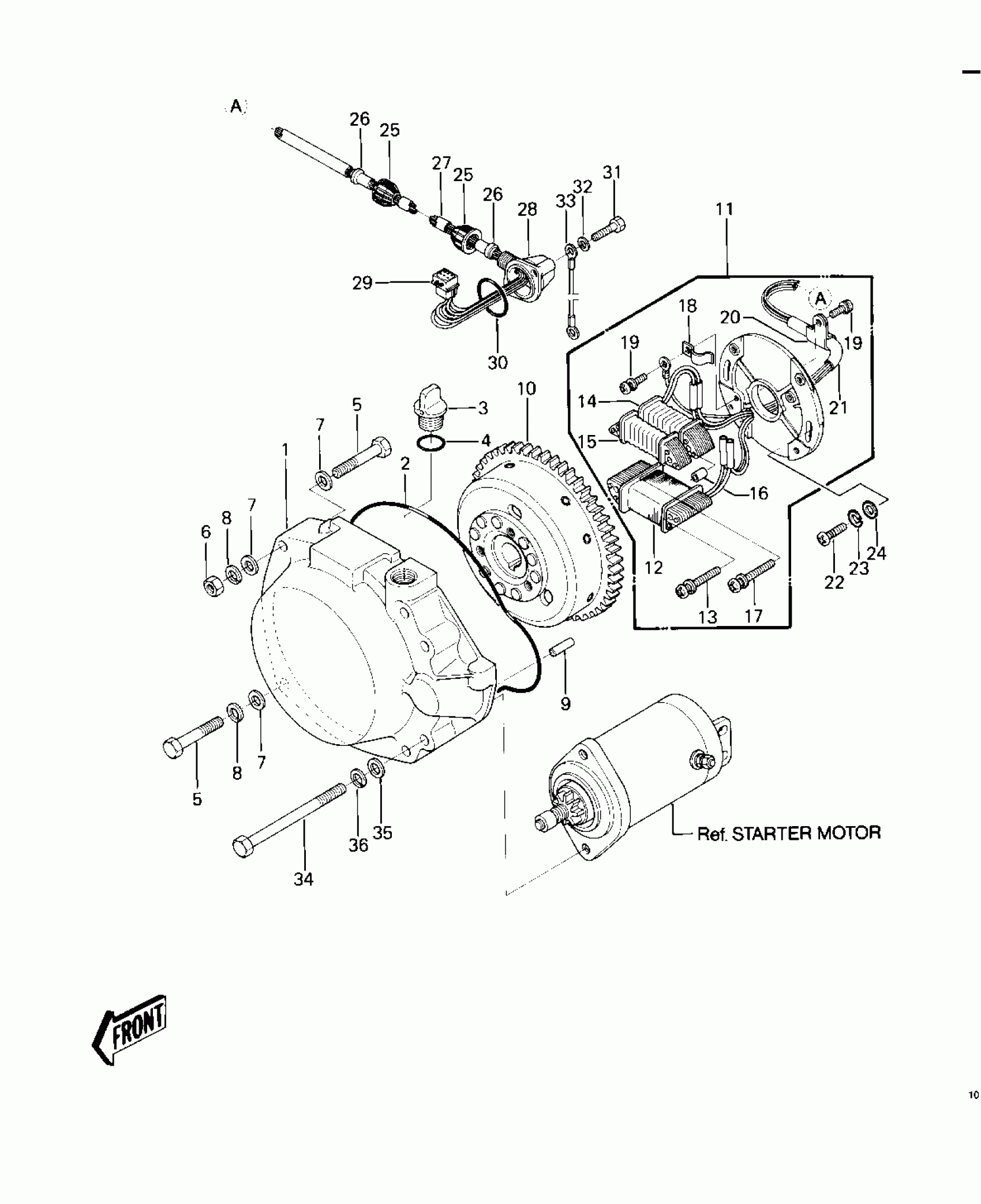

Kawasaki JS550 GENERATOR Diagram

#

Description
Price

1

COVER-GENERATOR

14031-3705

Unavailable

2

RING-O

92055-521

Unavailable

3

BREATHER

14069-3709

$49.09

4

RING-O

92055-515

$1.98

5

BOLT 8X50

110R0850

Unavailable

6

NUT 8MM

311R0800

Unavailable

7

WASHER-PLAIN-SMALL,8MM

410S0800

$1.62

8

WASHER SPRING 8MM

461S0800

$0.57

9

PIN-DOWEL

551R0612

$3.57

10

FLYWHEEL,MAGNETO

21050-3020

$748.36

11

STATOR

21003-3012

Unavailable

12

COIL-CHARGING

59031-3002

Unavailable

13

SCREW,5X34

92011-530

Unavailable

14

COIL-EXCITING

21049-3007

Unavailable

15

COIL-PULSING

59026-3008

$128.71

16

COLLAR

92027-3014

$8.24

17

SCREW,5X38

92009-3008

Unavailable

18

CLAMP

92037-520

Unavailable

19

SCREW,4X8

92011-560

Unavailable

20

CLAMP

92037-547

Unavailable

21

HARNESS,WIRING

26001-3006

Unavailable

22

SCREW-PAN-CROS

220B0520

$0.62

23

WASHER SPRING 5MM

461F0500

Unavailable

24

WASHER

92022-544

$2.19

25

CAP

11012-3012

Unavailable

26

GROMMET

92071-3001

Unavailable

27

TUBE,10X345

92059-3032

$19.22

28

CAP.

59176-517-YR

Unavailable

29

CONNECTOR-CORD

59221-506

Unavailable

30

RING-O,35.2X1.9

92055-520

$4.04

31

BOLT 6X35

110R0635

Unavailable

32

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

33

WIRE-LEAD,BLACK

26011-3006

Unavailable

34

BOLT,8X80

92001-3011

Unavailable

35

WASHER-PLAIN-SMALL,8MM

410S0800

$1.62

36

WASHER SPRING 8MM

461S0800

$0.57
