1985 Kawasaki JS550 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1985 Kawasaki JS550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

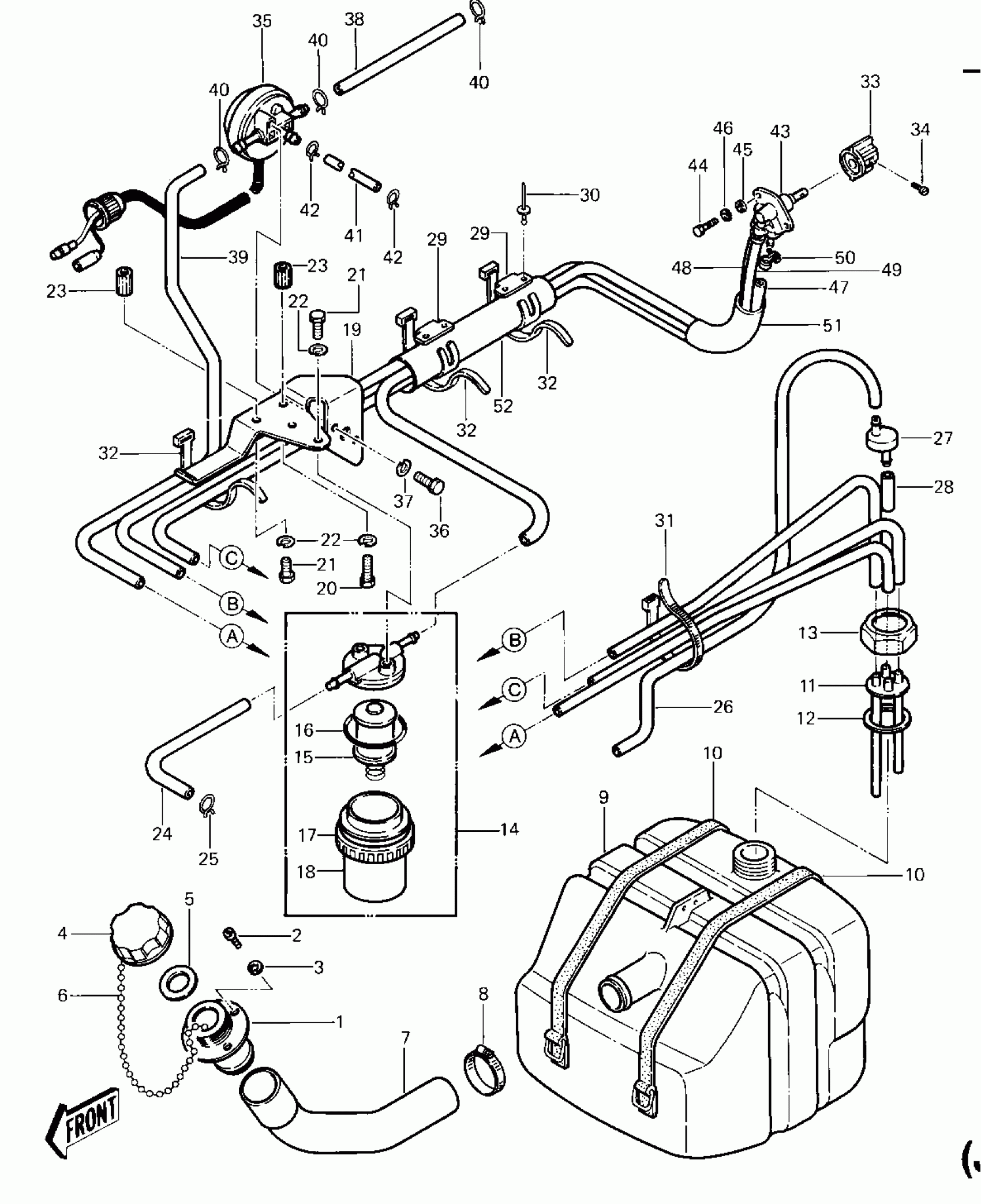

1985 Kawasaki JS550 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FILLER,FUEL TANK

59231-3001

1

$13.97

In stock

2

SCREW

92011-562

1
Out of stock

3

WASHER

92022-563

1
Out of stock

4

CAP-TANK

51049-3001

1

$8.56

In stock

5

GASKET,TANK CAP

11009-3020

1

$10.69

In stock

6

CHAIN,COVER,L=100

92057-3704

1

$15.18

In stock

7

TUBE,FUEL INLET

92059-3020

1
Out of stock

8

CLAMP

92037-3009

1

$3.25

In stock

9

TANK-FUEL

51004-3702

1
Out of stock

10

BAND,FUEL TANK

92072-521

1
Out of stock

11

PIPE-COMP,FUEL

31064-3001

1
Out of stock

12

GASKET

92065-504

1

$12.11

In stock

13

RETAINER

23072-501

1
Out of stock

14

FILTER-FUEL

49019-3701

1
Out of stock

15

FILTER,FUEL ELEMENT

14043-3701

1
Out of stock

16

RING-O,FILTER CUP

92055-3006

1
Out of stock

17

NUT,RING

92015-3013

1
Out of stock

18

CUP,FUEL FILTER

51036-3701

1
Out of stock

19

BRACKET,FUEL FILTER

11034-3013

1
Out of stock

20

BOLT-UPSET,6X16

112G0616

1
Out of stock

21

BOLT 6X12

110R0612

1
Out of stock

22

1

$0.97

In stock

23

NUT, INSERT, 6MM

92015-3014

1

$3.59

In stock

24

TUBE,6X10X200

92059-3011

1
Out of stock

25

CLAMP

92037-1173

1

$2.92

In stock

26

TUBE,FUEL,6X10X940

92059-3025

1
Out of stock

27

VALVE-RELIEF

49057-3001

1

$59.58

In stock

28

TUBE,5.8X12.2X55

92059-3026

1
Out of stock

29

CLAMP,TUBE

92037-3005

1

$4.41

In stock

30

1

$1.81

In stock

31

BAND,L=123

92072-030

1

$3.97

In stock

32

BAND,L=149

92072-031

1

$3.97

In stock

33

KNOB,FUEL TAP

92077-503

1
Out of stock

34

SCREW-PAN-CROS,4X8

220R0408

1
Out of stock

35

VALVE-ASSY,RPM LIMITER

49116-3001

1
Out of stock

36

BOLT,6X14

110R0614

1
Out of stock

37

1

$0.97

In stock

38

TUBE,FUEL,6X235

92059-3036

1

$10.61

In stock

39

TUBE,FUEL,6X680

92059-3037

1
Out of stock

40

CLAMP

92037-1173

1

$2.92

In stock

41

TUBE,FUEL,2.5X185

92059-3038

1
Out of stock

42

CLAMP,TUBE

92037-3025

1

$4.97

In stock

43

TAP-ASSY,FUEL

51023-3705

1
Out of stock

44

BOLT,5X12

110R0512A

1
Out of stock

45

WASHER-PLAIN,5MM

411S0500

1

$0.90

In stock

46

1

$0.54

In stock

47

TUBE,6X1300

92059-552

1
Out of stock

48

TUBE,6X1300,RESERVE

92059-553

1
Out of stock

49

TUBE,6X10X960

92059-3007

1
Out of stock

50

CLAMP

92037-551

1

$2.92

In stock

51

TUBE,GUARD

92059-3008

1
Out of stock

52

TUBE,VINYL,22X350

92059-3018

1

$31.05

In stock
