1985 Kawasaki JS550 Carburetor Brackets/flame Arrester Diagram

← All diagrams

Find the part on the Carburetor Brackets/flame Arrester diagram for your 1985 Kawasaki JS550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

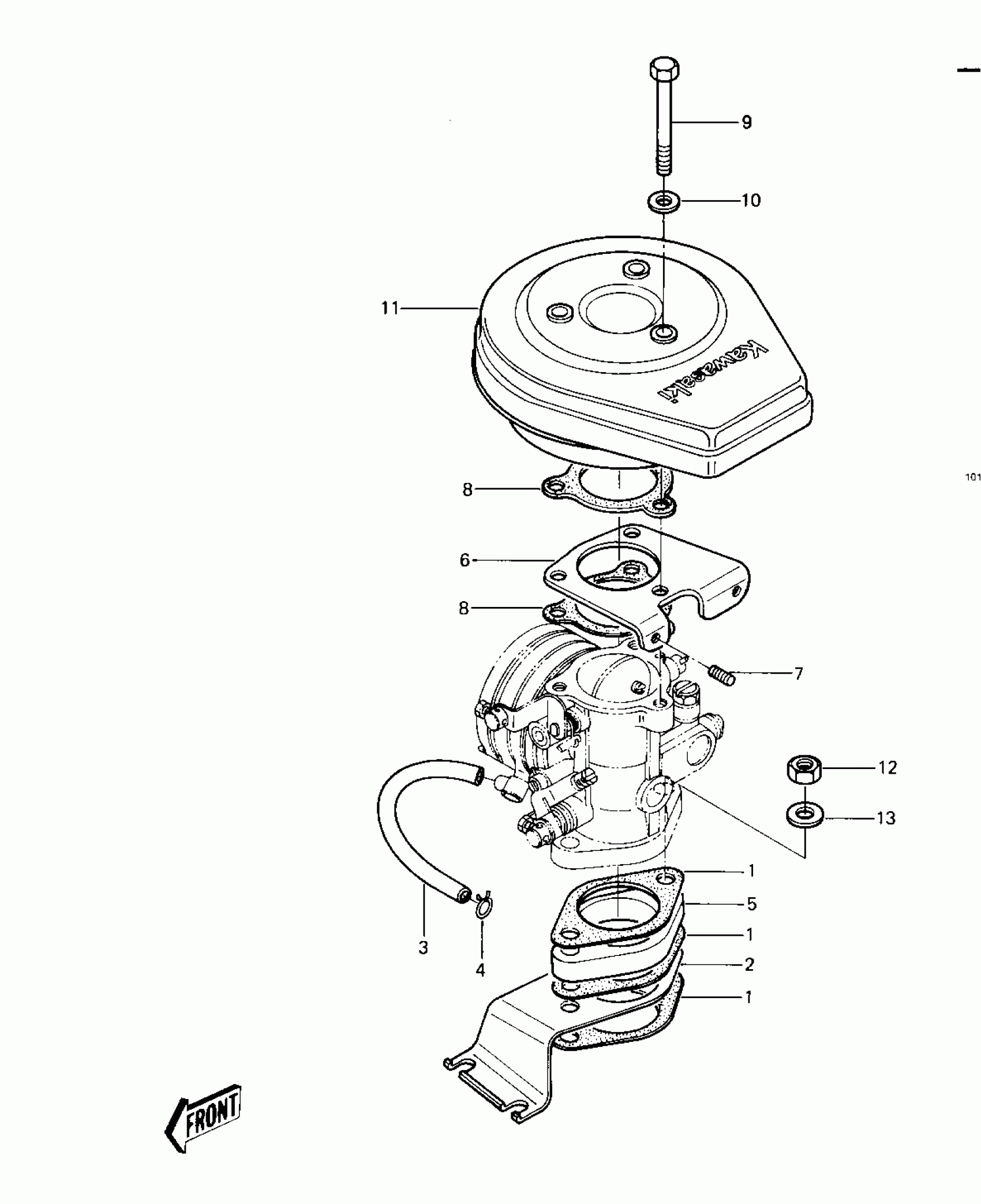

1985 Kawasaki JS550 Carburetor Brackets/flame Arrester Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET,INSULATOR

11009-3786

1
Out of stock

2

BRACKET,CONTROL

11034-3004

1
Out of stock

3

TUBE,PULS

92059-518

1
Out of stock

4

CLAMP

92037-1173

1

$2.92

In stock

5

INSULATOR

16061-511

1
Out of stock

6

BRACKET,CARBURETOR

11034-3003

1
Out of stock

7

STUD,6X12

171R0612

1

$2.46

In stock

8

GASKET,ARRESTER CASE

11060-3702

1
Out of stock

9

BOLT,6X80

110R0680

1
Out of stock

10

WASHER-PLAIN,6MM

411S0600

1

$1.73

In stock

11

ARRESTER-FLAME

59006-2051-YR

1

$334.89

In stock

12

NUT-HEX,8MM

312R0800

1
Out of stock

13

WASHER,PLAIN,8MM

92022-3043

1
Out of stock
