Description

Price

10

MOUNT-ENGINE

59181-509-9G

$129.88

11

BOLT,1/2"X31

92003-533

Unavailable

12

WASHER-SPRING,14MM

461S1400

$2.98

13

WASHER-PLAIN,14MM

411S1400

$5.10

14A

SHIM,T=0.5MM

92025-3702

Unavailable

14B

SHIM,T=1.0MM

92025-3703

Unavailable

14C

SHIM,T=1.5MM

92025-3704

Unavailable

14

SHIM,T=0.3MM

92025-3701

Unavailable

15

BOLT,10X25

110R1025

$7.02

16

WASHER-SPRING,10MM

461S1000

$1.03

17

WASHER,32X10.5X4

92022-3023

$8.84

18

BOLT-WSP-SMALL,8X20

155R0820

$6.41

19

BOLT,8X20

92150-3713

$8.03

1

BRACKET,ENGINE MOUNT

59016-532

Unavailable

2

BRACKET,ENGINE MOUNT

59016-533

Unavailable

6

DAMPER,ENGINE

92075-3006

Unavailable

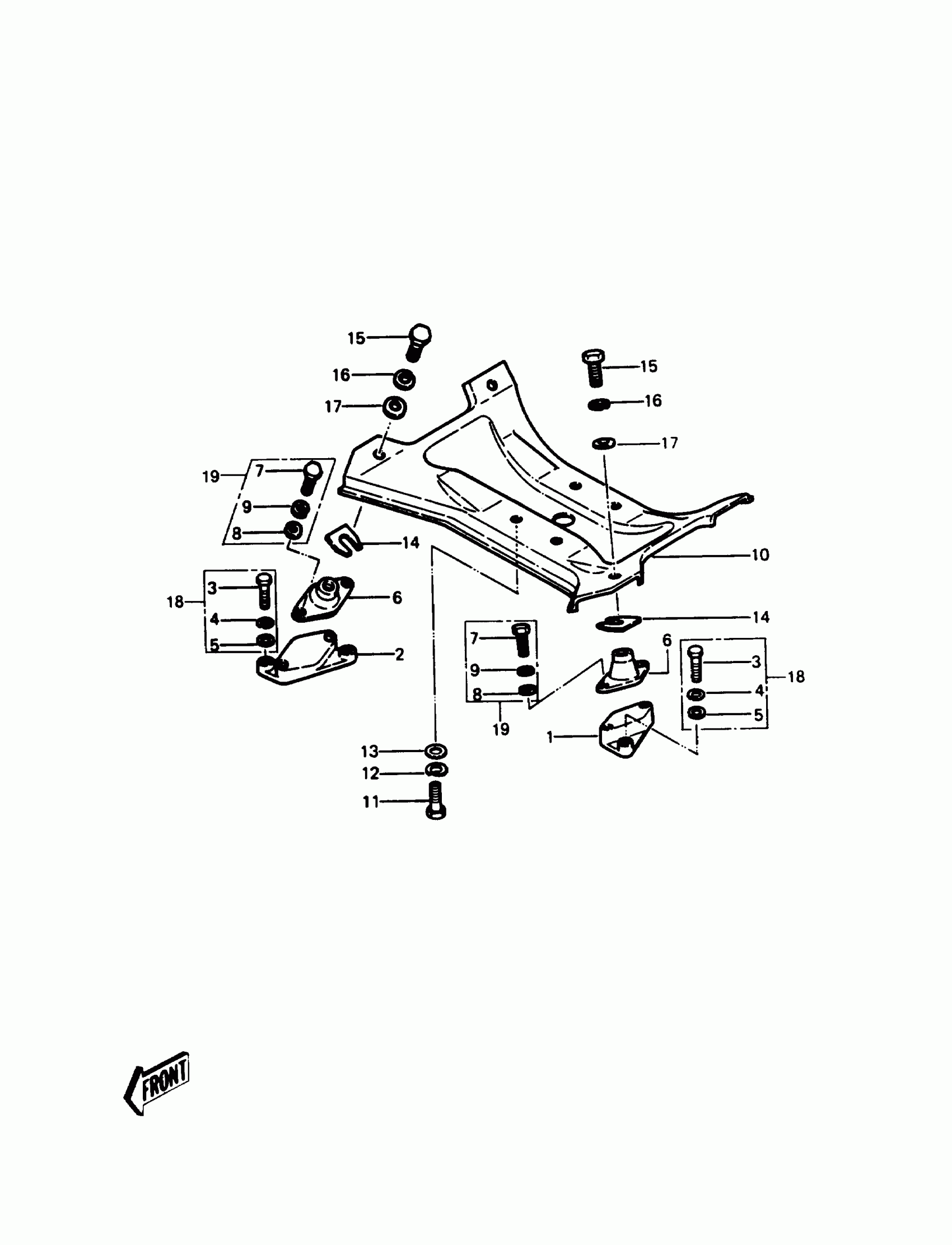

Kawasaki JS550 ENGINE MOUNT Diagram

MOUNT-ENGINE

BOLT,1/2"X31

WASHER-SPRING,14MM

WASHER-PLAIN,14MM

SHIM,T=0.5MM

SHIM,T=1.0MM

SHIM,T=1.5MM

SHIM,T=0.3MM

BOLT,10X25

WASHER-SPRING,10MM

WASHER,32X10.5X4

BOLT-WSP-SMALL,8X20

BOLT,8X20

BRACKET,ENGINE MOUNT

BRACKET,ENGINE MOUNT

DAMPER,ENGINE
