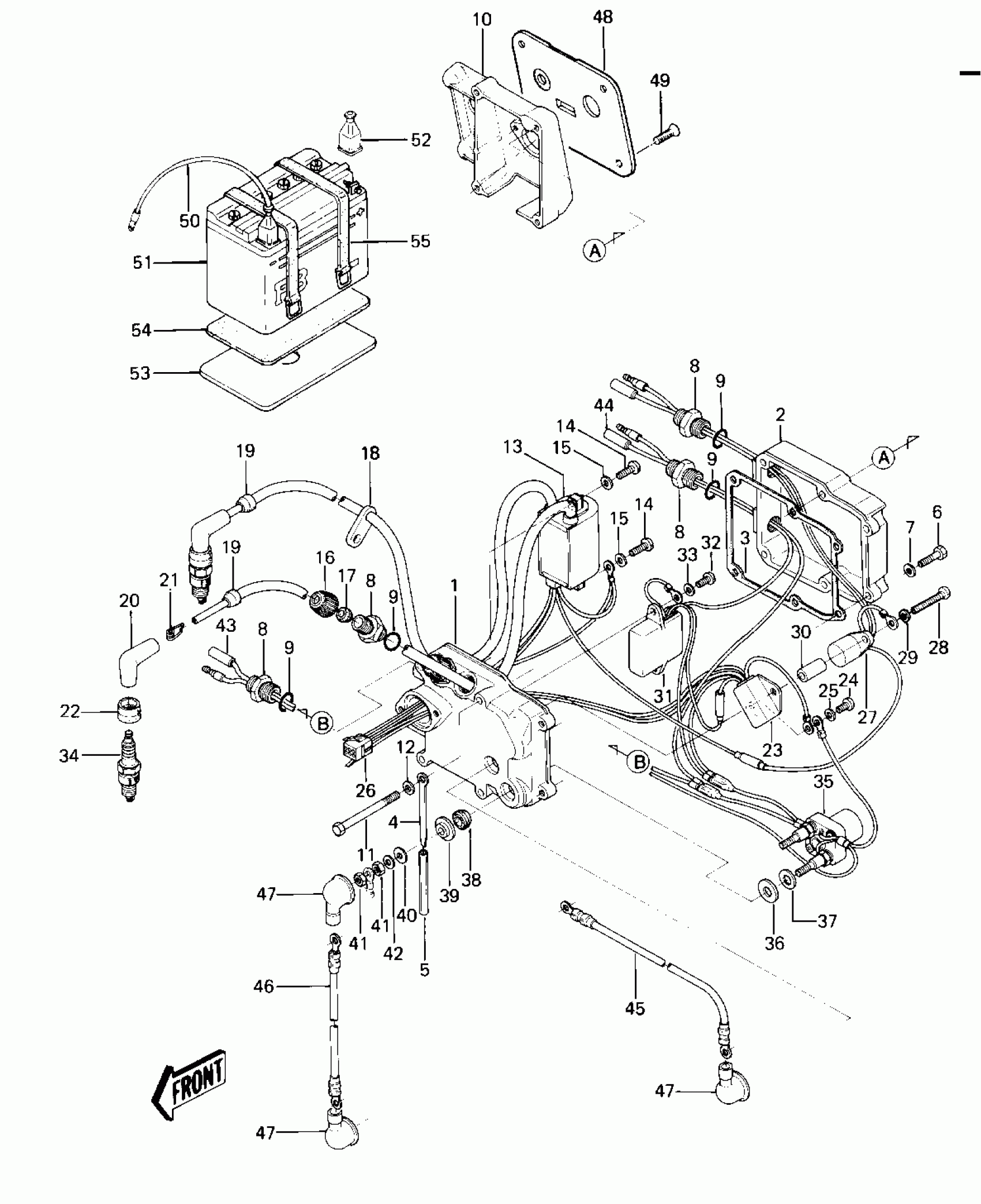

Kawasaki JS550 ELECTRIC CASE Diagram
#
1
CASE-ELECTRIC,FR
59416-3004-YR
Unavailable
2
CASE-ELECTRIC,RR
59416-3005-YR
$88.10
3
GASKET,ELECTRIC CASE
11009-3781
$24.29
4
CLAMP,L=100
92037-3736
$5.52
5
TUBE,VINYL,5X73
92059-3017
Unavailable
6
BOLT,6X25
110R0625
$3.20
7
WASHER-PLAIN,6MM
411S0600
$2.06
8
JOINT
59071-3001
$6.29
9
O RING,16MM
670B2016
$1.36
10
CASE,FUEL TAP
32099-3752
$153.63
11
BOLT,6X80
110R0680
$8.52
12
WASHER-PLAIN,6MM
411S0600
$2.06
13
IGNITER,CDI
21119-3016
Unavailable
14
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
15
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
16
CAP
11012-3005
$5.54
17
GROMMET
92071-527
$6.68
18
GROMMET
92071-529
Unavailable
19
GROMMET
92071-517
$0.69
20
CAP-SPARK PLUG
21130-009
$22.10
21
TERMINAL,SPARK PLUG CAP
92101-001
$1.69
22
COVER,PLUG
92071-501
$4.94
23
REGULATOR-VOLTAGE
21066-3003
Unavailable
24
SCREW PAN HEAD 6X12
220B0612
Unavailable
25
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
26
CONNECTOR-CORD
59221-505
Unavailable
27
RELAY,STOP SWITCH
27034-3002
Unavailable
28
SCREW PAN HEAD 6X45
220B0645
$1.71
29
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
30
COLLAR
92027-3013
$6.54
31
RELAY,RPM LIMITER
27034-3004
Unavailable
32
SCREW-PAN-CROS,6X16
220B0616
$2.84
33
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
34
PLUG-SPARK,B7ES(NGK)
92070-3003
Unavailable
35
SWITCH,MAGNETIC
27010-3007
Unavailable
36
WASHER
92022-3035
$3.52
37
WASHER PLAIN 10MM
410B1000
$0.58
38
GROMMET
92071-3004
$3.99
39
WASHER
92022-3036
Unavailable
40
WASHER
92022-553
$1.24
41
NUT-HEX,6MM
311R0600
$0.70
42
WASHER-PLAIN,6MM
411S0600
$2.06
43
WIRE-LEAD,ORANGE
26011-3003
Unavailable
44
WIRE-LEAD,RED/WHITE
26011-3008
$5.03
45
WIRE-LEAD,BATTERY(+)
26011-3778
Unavailable
46
WIRE-LEAD,STARTER
26011-3005
Unavailable
47
CAP
11012-3004
$7.55
48
PANEL-CONTROL
59226-3702
Unavailable
49
SCREW-COUNTERSUNK,8X22
92009-3004
$7.49
50
WIRE-LEAD,BATTERY(-)
26011-3776
Unavailable
51
FB BAT FB16L-B
26012-3003
Unavailable
52
CAP.,TERMINAL
59176-501
$8.94
53
PLATE,BATTERY
13169-3014
Unavailable
54
DAMPER,BATTERY
92075-509
$19.35
55
BAND,BATTERY,L=306
92072-512
$27.70
