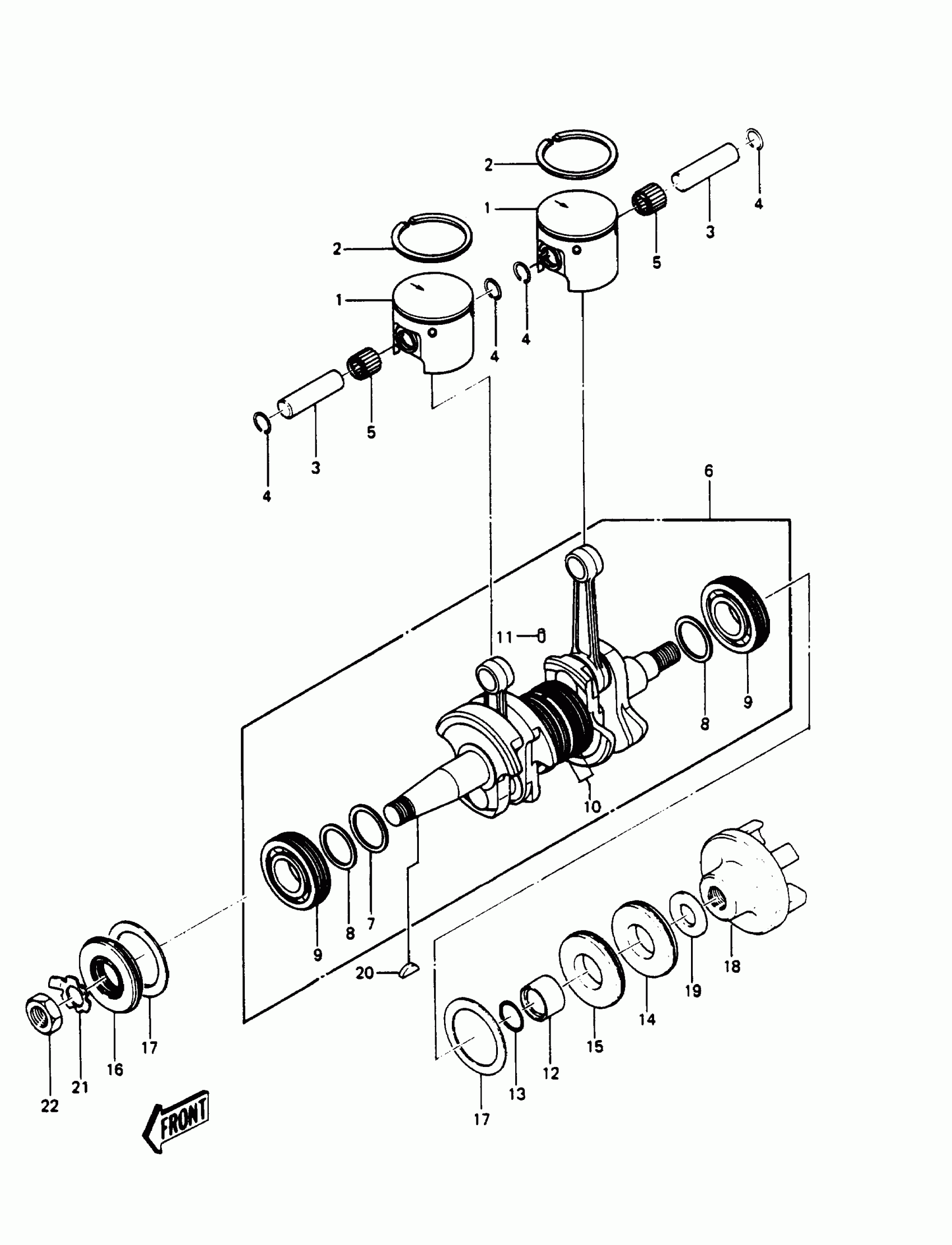

Kawasaki JS550 CRANKSHAFT/PISTONS Diagram
#
Description
Price
10
RING-O
92055-504
Unavailable
11
PIN-DOWEL,4X10
551A0410
$0.65
12
SLEEVE,CRANKSHAFT OUT
42036-3007
Unavailable
13
RING-O,22MM
92055-3009
Unavailable
14
SEAL-OIL,OIL,TCY306210
92049-3005
$72.79
15
SEAL-OIL,OIL,DCY30629
92049-3006
$19.39
16
SEAL-OIL,TCY306210
92050-507
Unavailable
17
WASHER,CRANK,RH
92022-3021
$5.68
18
COUPLING
42034-3005
Unavailable
19
WASHER,18.5X38X4
92022-3028
Unavailable
20
WOODRUFF KEY
510A5200
$2.82
21
WASHER,LOCK,20MM
92022-569
$4.50
22
NUT,20MM
92015-535
$7.64
1A
PISTON-ENGINE L,O/S 0.5MM
13029-2077
Unavailable
1
PISTON-ENGINE,STD
13001-2094
Unavailable
2A
RING-PISTON TOP,O/S 0.5MM
13003-2130
Unavailable
2
RING-PISTON TOP,STD
13003-2129
Unavailable
3
PIN-PISTON
13002-504
$13.02
4
RING-SNAP
92036-507
$0.65
5
BEARING-NEEDLE
92046-503
$21.61
6
CRANKSHAFT-COMP
13031-2051
Unavailable
7
SHIM,T=1.0MM
92025-532
$2.47
8A
SHIM,T=0.2
92025-518
Unavailable
8B
SHIM,T=0.3
92025-523
Unavailable
8C
SHIM,T=0.4
92025-527
Unavailable
8D
SHIM,T=0.5
92025-530
Unavailable
8E
SHIM,T=0.6
92025-533
Unavailable
8
SHIM,T=0.1
92025-513
Unavailable
9
BEARING-BALL
92045-3010
$40.48
