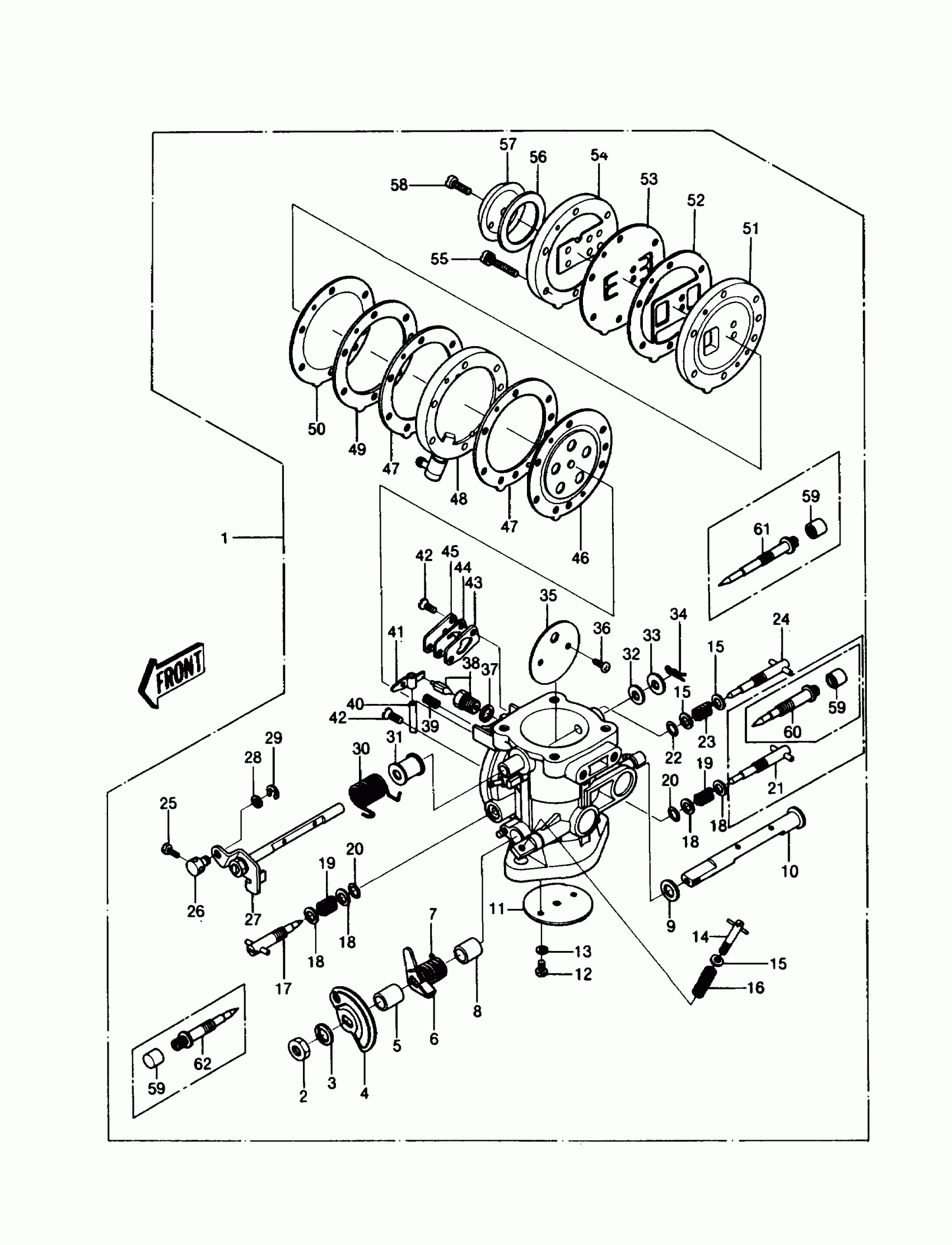

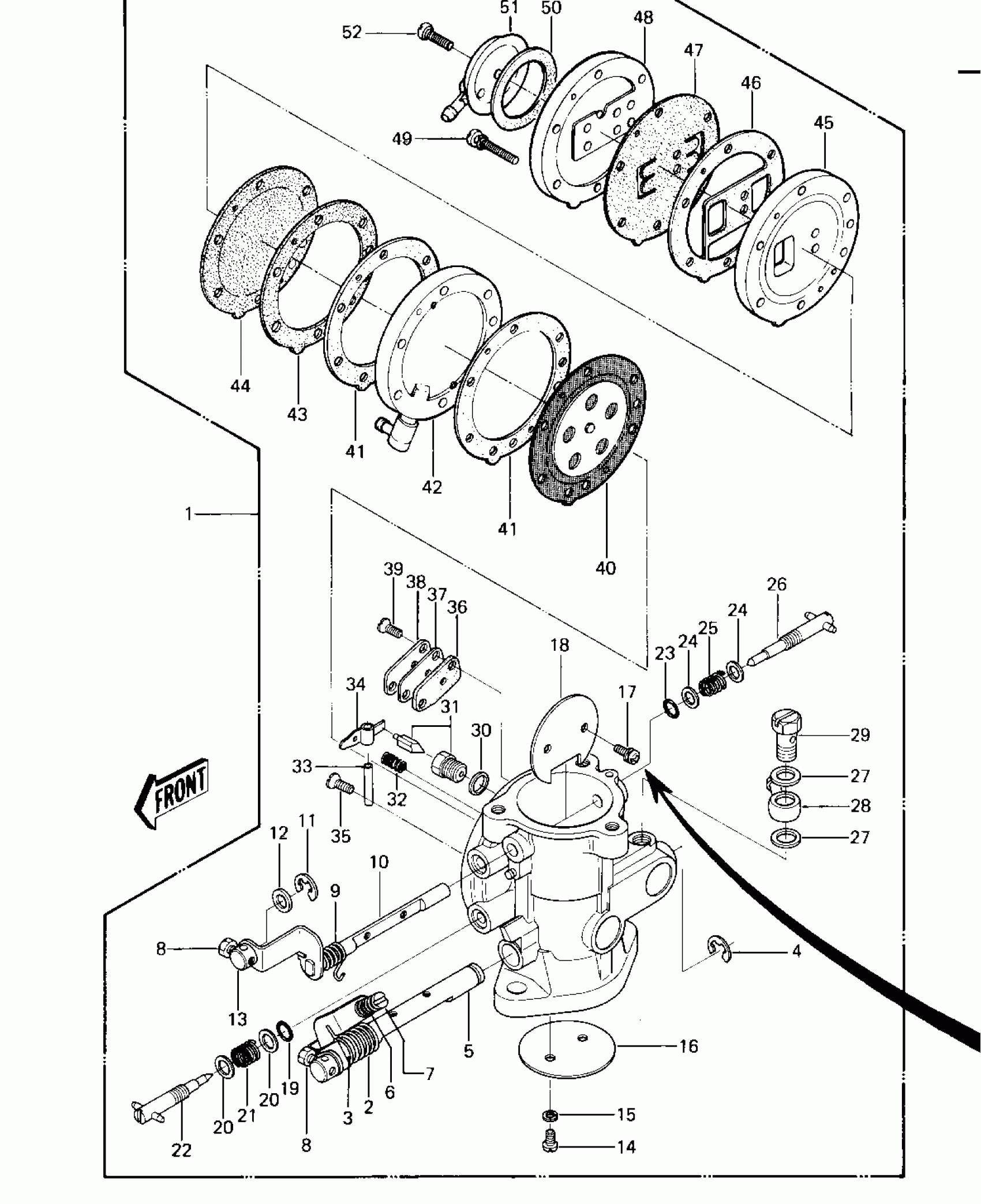

Kawasaki JS550 CARBURETOR Diagram
#
14
SCREW,THROTTLE STOP
23013-2051
$34.87
15
WASHER
92065-528
Unavailable
16
SPRING,CABLE PULLY
16040-022
Unavailable
18
WASHER
92022-537
Unavailable
19
SPRING
92081-528
Unavailable
20
"0" RING
92055-510
Unavailable
22
RING-O
92055-511
$7.29
23
SPRING
92081-534
Unavailable
25
BOLT,4X8
92001-3026
Unavailable
26
TERMINAL,CHOKE SHAFT
21169-3008
Unavailable
27
SHAFT-CARBURETOR,CHOKE
16041-2136
Unavailable
28
WASHER,PLAIN,6NYLON
92022-3020
Unavailable
29
CIRCLIP,5M/M,SUS304
92033-3004
Unavailable
30
SPRING,CHOKE SHAFT
92081-2337
$14.82
31
COLLAR,CHOKE SHAFT
92027-2097
$49.44
32
PACKING,CHOKE SHAFT
11009-2465
Unavailable
33
WASHER,CHOKE SHAFT
92022-2221
$3.34
34
PIN,SNAP
92043-2121
$4.56
37
WASHER FLOAT VLV SEAT
16029-004
$3.89
38
VALVE-FLOAT,2.0MM
16030-2066
$56.16
39
SPRING
92081-536
Unavailable
40
FLOAT PIN
16032-006
$7.29
1A
CARBURETOR-ASSY
15001-3738
Unavailable
2
NUT,THROTTLE LEVER
92015-3717
$6.41
3
WASHER,THROTTLE LEVER
92022-3722
Unavailable
4
LEVER-ASSY-THROTTLE,THROTTLE
39074-3704
$45.84
5
COLLAR,THROTTLE SHAFT
92027-2098
$23.59
6
LEVER-THROTTLE,STOP
39075-2104
$11.72
7
SPRING,THROTTLE SHAFT
92081-2336
Unavailable
8
BUSHING,THRTLE SHAFT
92028-514
$26.24
41
ARM
59001-506
Unavailable
42A
SCREW
92009-3714
Unavailable
43
GASKET
92065-544
Unavailable
44
DIAPHRAGM,CHECK SEAT
51069-501
Unavailable
45
PLATE-CARB. SIDE
59086-541
$14.92
46
DIAPHRAGM,MAIN
51069-502
$8.87
47
GASKET
92065-531
Unavailable
48
BODY,DIAPHRAGM(1)
59021-514
$140.05
49
GASKET
11009-3036
Unavailable
50
DIAPHRAGM,PUMP
43028-3002
Unavailable
51
BODY,DIAPHRAGM(2)
59336-3002
Unavailable
52
GASKET
92065-532
Unavailable
53
DIAPHRAGM,PUMP
43028-3001
Unavailable
54
BODY,DIAPHRAGM(3)
59336-3003
$77.43
55
SCREW 4X30
92011-515
Unavailable
56
GASKET
92065-526
$15.19
57
COVER-CARB. SIDE
59036-530
$14.79
58
SCREW 4X12
92011-510
$7.65
59
CAP,JET NEEDLE
11012-3739
Unavailable
60
NEEDLE-JET
16009-3708
$39.19
61
NEEDLE-JET,HIGH SPEED
16009-3709
Unavailable
62
NEEDLE-JET
16009-3710
Unavailable
