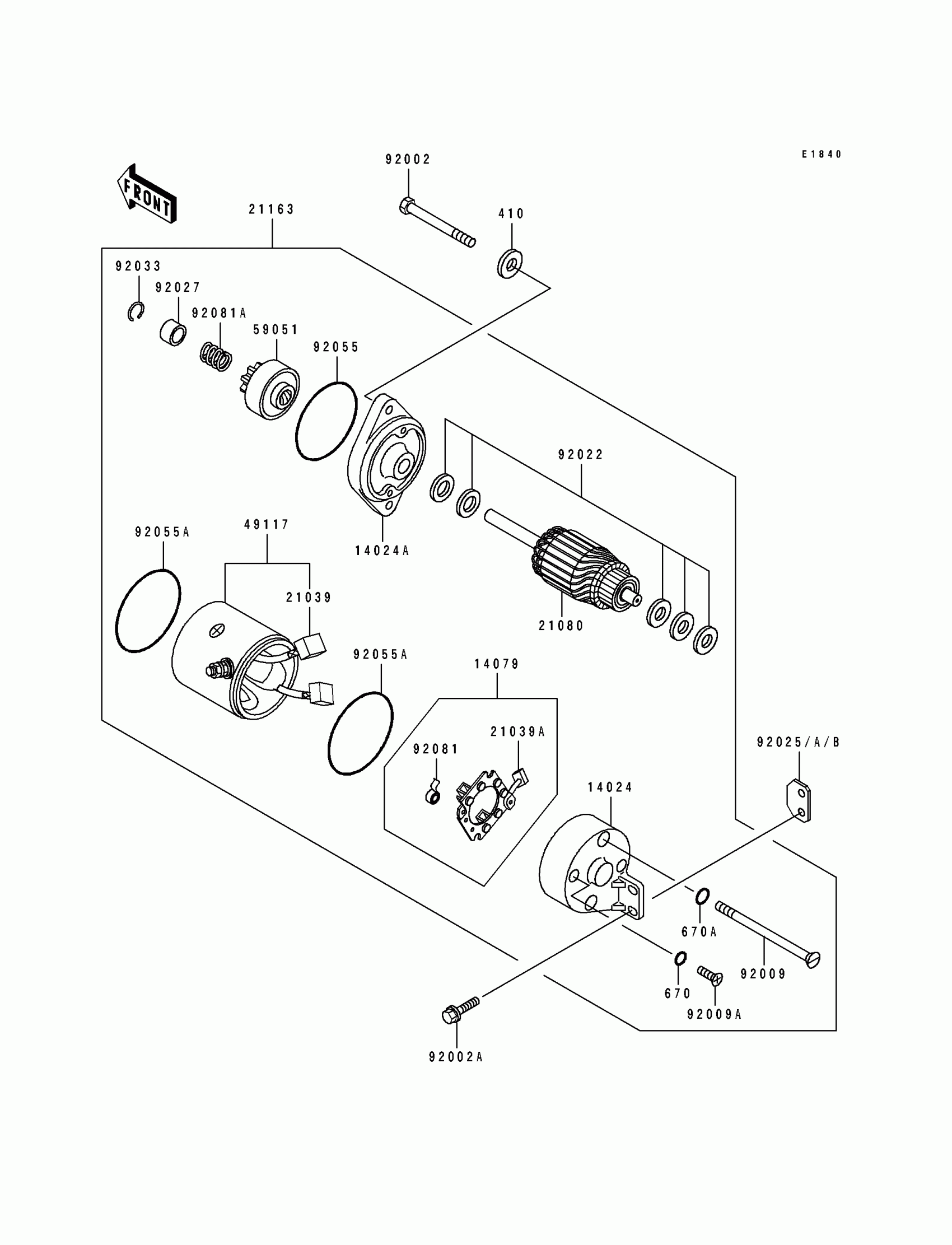

Kawasaki JS440 Starter Motor(TC440B-039909&NAMI.054870) Diagram

Description

Price

14024

COVER,RR

14025-3027

Unavailable

14024A

COVER,FR

14025-3028

Unavailable

14079

HOLDER-ASSY,BRUSH

14079-3002

$224.34

21039

BRUSH,(+)

21039-3003

Unavailable

21039A

BRUSH,(-)

21039-3004

Unavailable

21080

ARMATURE

21080-3702

$522.47

21163

STARTER-ELECTRIC

21163-3711

Unavailable

49117

YOKE

49117-3002

$453.37

59051

GEAR-SPUR

59051-3005

$437.23

92002

BOLT,8X70

92002-3719

$12.14

92002A

BOLT,6X20

92002-3755

$4.69

92009

SCREW,6X107

92011-549

Unavailable

92009A

SCREW,4X8

92011-550

$6.30

92022

WASHER,SET

92022-3044

$9.57

92025

SHIM,STARTER,T=0.4

92025-3012

Unavailable

92025A

SHIM,STARTER,T=0.6

92025-3013

Unavailable

92025B

SHIM,STARTER,T=0.8

92025-3014

Unavailable

92027

COLLAR,STOPPER,PINION

92027-513

Unavailable

92033

RING-SNAP

92036-517

Unavailable

92055

RING-O

92055-516

$8.86

92055A

RING-O

92055-517

Unavailable

92081

SPRING,BRUSH

92081-540

$12.75

92081A

SPRING,RETURN

92081-541

Unavailable

410

WASHER-PLAIN-SMALL,8MM

410S0800

$2.58

670

O RING,5MM

670B1505

$3.26

670A

O RING,6MM

670B1506

$1.28
