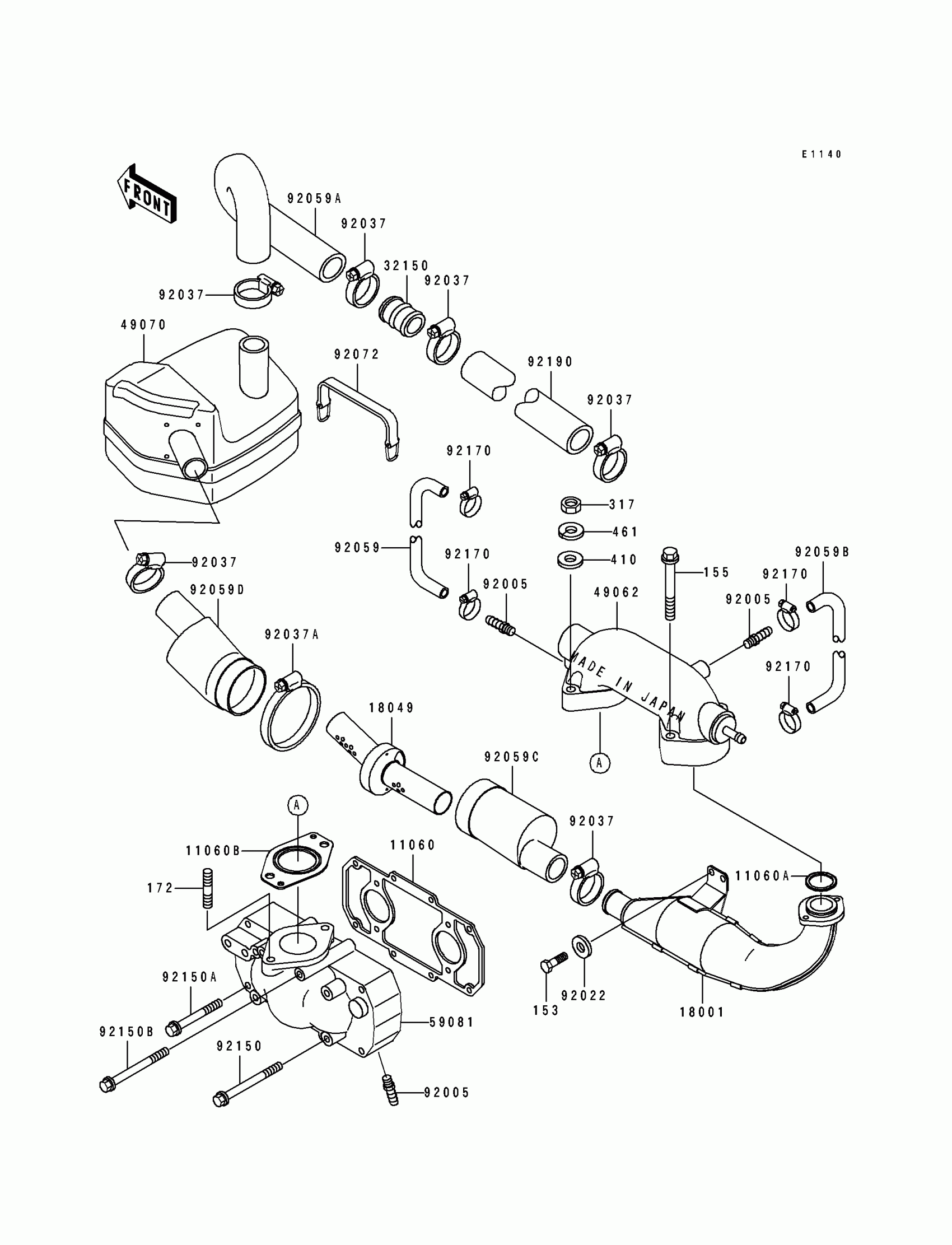

Kawasaki JS440 Muffler Diagram
#
Description
Price
11060
GASKET,EXHAUST MANIFOLD
11009-3779
$27.79
11060A
GASKET,EXHAUST
11009-3784
Unavailable
11060B
GASKET,EXHAUST
11060-3710
Unavailable
18001
MUFFLER
18001-520
$499.69
18049
PIPE-EXHAUST
59151-528
$116.78
32150
PIPE
32150-3784
Unavailable
49062
PIPE-COMP-EXHAUST
49062-3705
$259.14
49070
MUFFLER-COMP,WATER BOX
49070-3702
$94.07
59081
MANIFOLD-EXHAUST
59081-3708
$356.32
92005
FITTING,HOSE
92005-3001
$10.88
92022
WASHER,8.4X23X2.5
92022-3744
$4.18
92037
CLAMP
92037-509
$5.58
92037A
CLAMP
92037-541
$10.24
92059
TUBE,9X190
92059-3021
Unavailable
92059A
TUBE,EXHAUST
92059-3722
Unavailable
92059B
TUBE,9X16X250
92059-502
$10.51
92059C
TUBE
92059-542
$130.82
92059D
TUBE
92059-543
Unavailable
92072
BAND
92072-511
Unavailable
92150
BOLT,6X70
92150-3753
$7.33
92150A
BOLT,6X50
92150-3762
$5.95
92150B
BOLT,6X85
92150-3763
$10.14
92170
CLAMP
92170-3718
$13.67
92190
TUBE,L=860
92190-3718
Unavailable
153
BOLT-WS-SMALL
153R0820
$5.03
155
BOLT-WSP-SMALL
155R0845
$7.65
172
BOLT-STUD,8X35
172R0835
$5.33
317
NUT
317R0800
$1.96
410
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
461
WASHER SPRING 8MM
461S0800
$0.65
