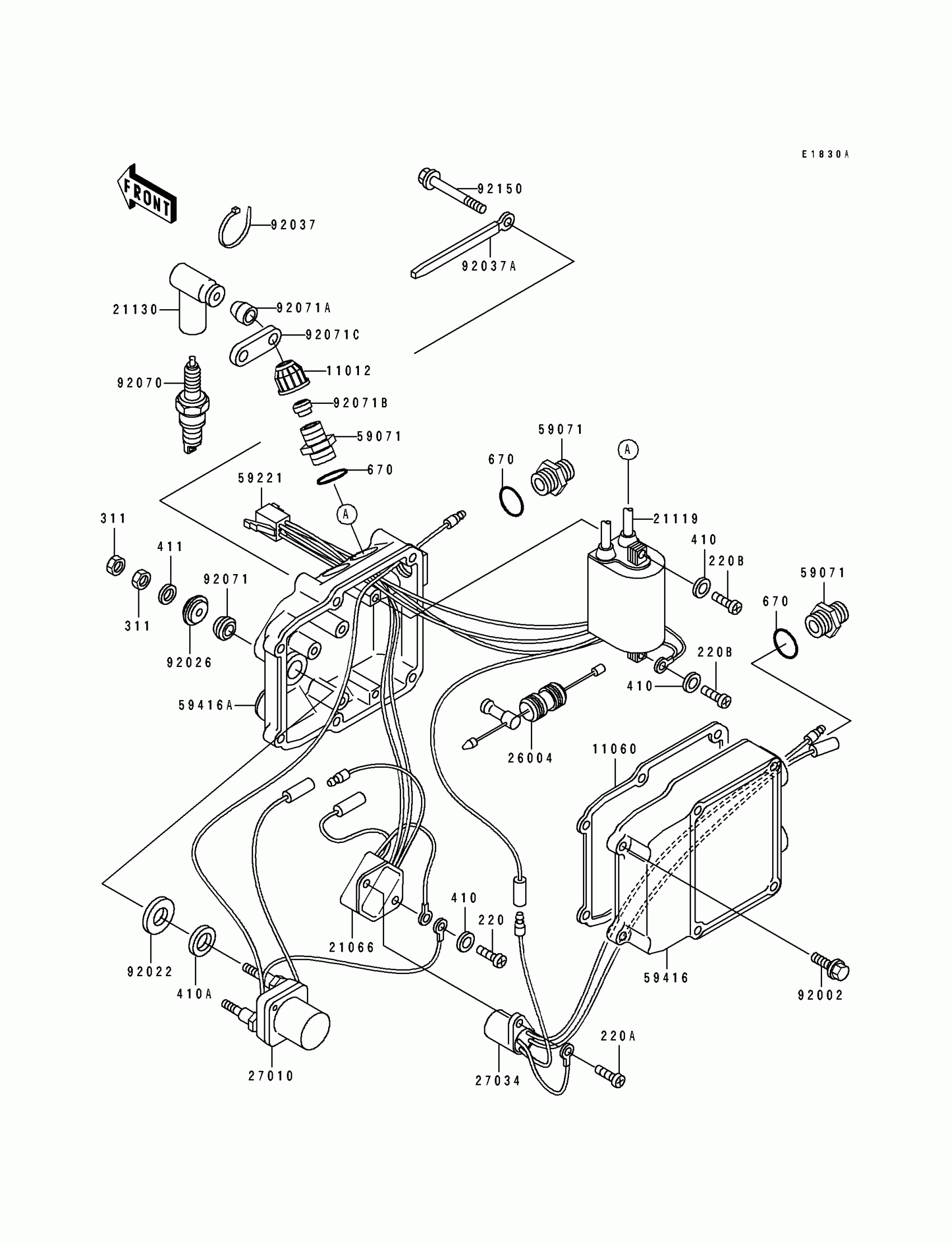

Kawasaki JS440 Ignition Coil(JS440-A16) Diagram
#
Description
Price
11012
CAP
11012-3005
$5.54
11060
GASKET,ELECTRIC CASE
11009-3781
$24.29
21066
REGULATOR-VOLTAGE
21066-3710
Unavailable
21119
IGNITER
21119-3724
$296.32
21130
CAP-SPARK PLUG
21130-3704
$52.27
26004
FUSE-ASSY
26004-3711
$55.72
27010
SWITCH,STARTER RELAY
27010-3724
$115.46
27034
RELAY
27034-3704
Unavailable
59071
JOINT
59071-3001
$6.29
59221
CONNECTOR-CORD
59221-505
Unavailable
59416
CASE-ELECTRIC,RR
59416-3003-YR
$75.52
59416A
CASE-ELECTRIC,FR
59416-3004-YR
Unavailable
92002
BOLT,6X25
92002-3714
$5.00
92022
WASHER
92022-3035
$3.52
92026
SPACER
92026-3703
$4.69
92037
CLAMP
92037-1173
$3.49
92037A
CLAMP,L=100
92037-3736
$5.52
92070
PLUG-SPARK,BR7ES(NGK)
92070-3701
Unavailable
92071
GROMMET
92071-3004
$3.99
92071A
GROMMET
92071-517
$0.69
92071B
GROMMET
92071-527
$6.68
92071C
GROMMET
92071-529
Unavailable
92150
BOLT,6X80
92150-3761
$9.18
220
SCREW PAN HEAD 6X12
220B0612
Unavailable
220A
SCREW-PAN-CROS,6X16
220B0616
$2.84
220B
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
311
NUT-HEX,6MM
311R0600
$0.70
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
410A
WASHER PLAIN 10MM
410B1000
$0.58
411
WASHER-PLAIN,6MM
411S0600
$2.06
670
O RING,16MM
670B2016
$1.36
