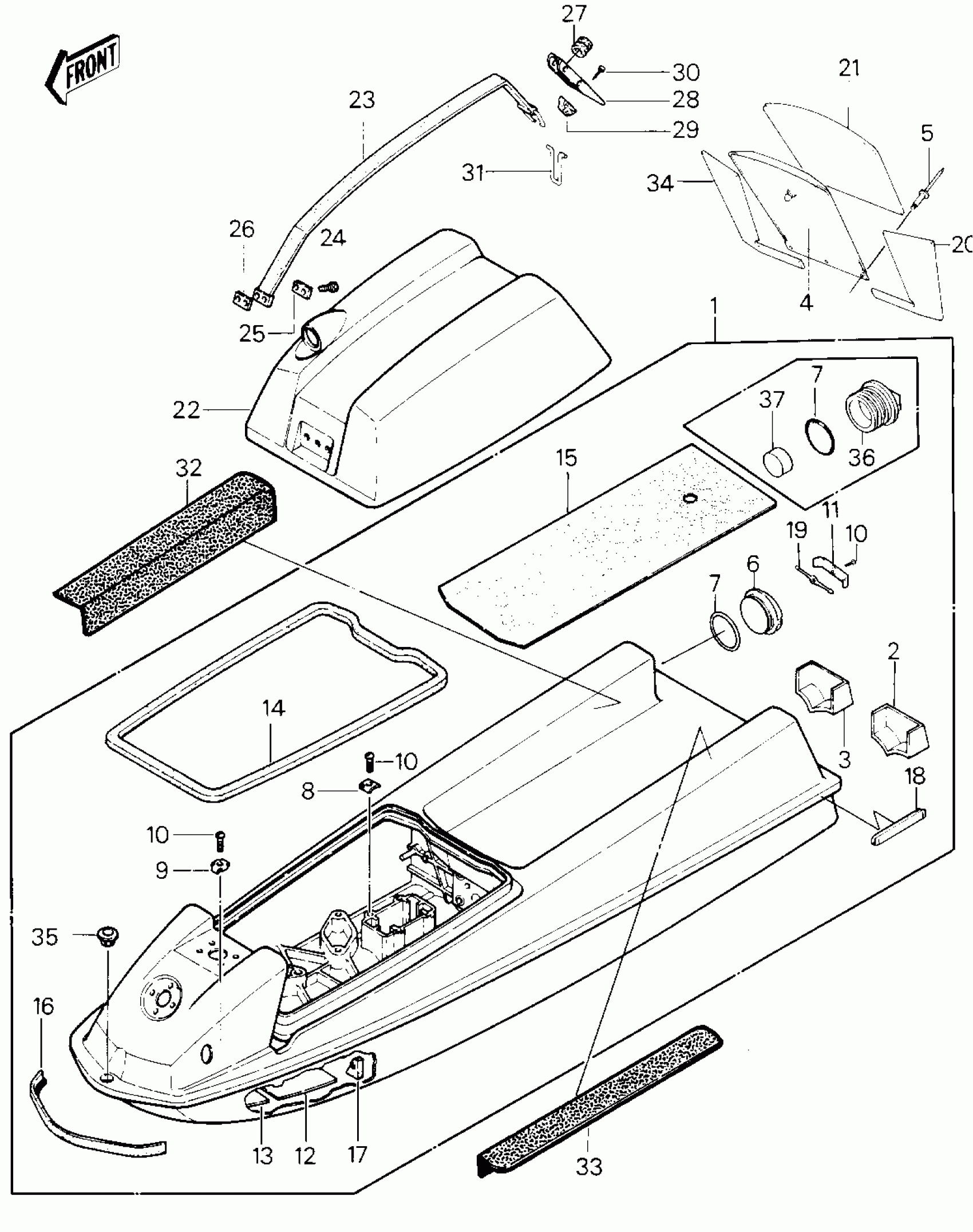

Kawasaki JS440 HULL/ENGINE HOOD ('84-'86 JS440-A8 Diagram
#
Description
Price
1
HULL-ASSY,JET-WHITE
59431-3705-8C
$1,548.56
2
HULL,LH,EXTENSION,JET WHITE
59251-3006-8C
Unavailable
3
HULL,RH,EXTENSION,JET WHITE
59251-3005-8C
$20.65
4
COVER,DASHBOARD
14025-3706
$7.80
5
RIVET,4MM
92039-3703
$4.69
7
SEAL-OIL
92049-3709
Unavailable
8
HOOK
27012-501
Unavailable
9
HOOK
27012-502
Unavailable
10
SCREW,TAPPING
92011-561
Unavailable
12
DAMPER,FUEL TANK
92075-521
Unavailable
13
DAMPER,MUFFLER
92075-522
Unavailable
14
GASKET,ENGINE HOOD
92065-539
$74.38
15
MAT
59131-502
Unavailable
16
BUMPER
59201-3691
$14.97
17
DETENT
59346-504
$8.60
18
GRIP,HULL
46075-3701
Unavailable
20
MAT,DASHBOARD,LH
53004-3710
$41.75
21
MAT,DASHBOARD COVER
53004-3705
$51.82
22
HOOD-COMP-ENGINE,JET WHITE
59456-3719-8C
$477.02
23
BAND,HOOD
92072-3746
Unavailable
24
BOLT,6X30
92001-3022
Unavailable
25
WASHER,BAND
92022-509
$4.73
26
BRACKET,PLATE
59086-501
$18.58
27
GROMMET
92071-056
$4.26
28
LEVER
13168-3701
Unavailable
29
DETENT
59346-503
Unavailable
30
SCREW
92011-562
$1.65
31
HINGE
53009-503
$14.87
32
MAT,DECK FIN,RH
53004-3701
$170.95
33
MAT,DECK FIN,LH
53004-3702
$175.57
34
MAT,DASHBOARD,RH
53004-3709
$41.75
35
BUSHING
92028-3013
$10.37
36
CAP
11012-3721
$10.51
37
DAMPER,69X16T
92075-3710
$7.65
