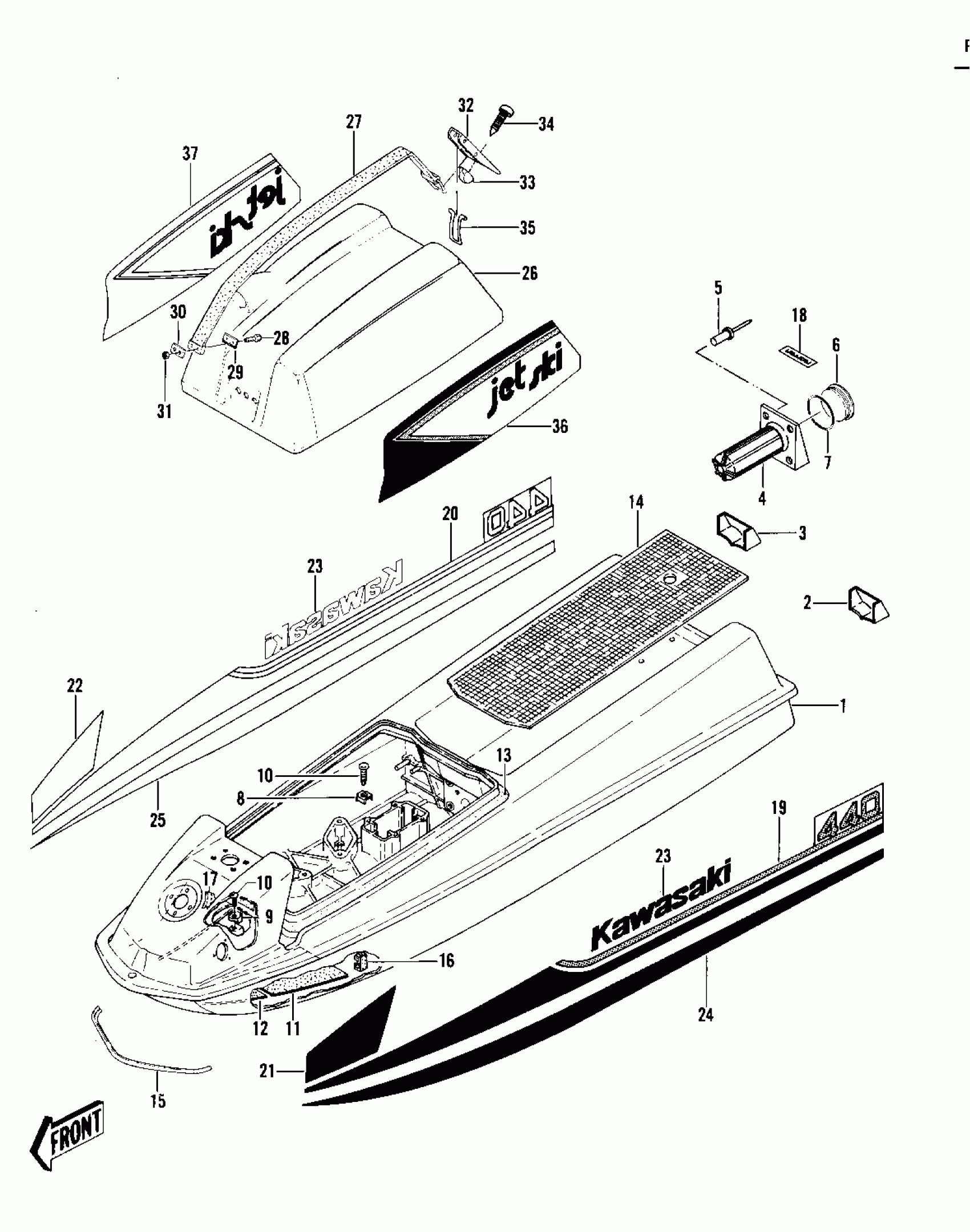

Kawasaki JS440 HULL/ENGINE HOOD ('79-'81 A3/A4/A4A/A5) Diagram
#
1
HULL-ASSY,JET-WHITE
59431-3704-8C
$1,548.56
2
HULL EXTENSION LEFT
59251-517-8C
Unavailable
3
HULL EXTENSION RIGHT
59251-516-8C
$20.65
4
CASE-ASSY-FIRE
32099-5501
Unavailable
5
RIVET
59281-506
Unavailable
6
CAP,FIRE EXT.BLACK
11012-3724
Unavailable
6
CAP,FIRE EXTNG HOUSNG
11012-3001-8C
Unavailable
6
CAP,FIRE EXTNG HOUSNG
11012-3001-8C
Unavailable
7
O RING,85MM
671B2585
$7.60
8
HOOK
27012-501
Unavailable
9
HOOK
27012-502
Unavailable
10
SCREW,TAPPING
92011-561
Unavailable
11
DAMPER,FUEL TANK
92075-521
Unavailable
12
DAMPER,MUFFLER
92075-522
Unavailable
13
GASKET,ENGINE HOOD
92065-539
$74.38
14
MAT
59131-502
Unavailable
15
BUMPER
59201-502
Unavailable
16
DETENT
59346-504
$8.60
17
LABEL,FUEL
56040-3001
Unavailable
18
LABEL,FIRE EXTINGUISHER
56022-506
$4.99
19
DECAL, LH REAR DECK
56030-3010
Unavailable
20
DECAL, RH REAR DECK
56030-3009
Unavailable
21
DECAL,LH FRONT DECK
56030-3017
Unavailable
22
DECAL,RH FRONT DECK
56030-3016
Unavailable
23
DECAL,"KAWASAKI"LOGO
56030-3006
Unavailable
24
DECAL, LH HULL
56030-3005
Unavailable
25
DECAL,RH HULL
56030-3004
Unavailable
26
HOOD-COMP-ENGINE,JET WHITE
59456-3719-8C
$477.02
27
BAND,HOOD
92072-3746
Unavailable
28
BOLT,6X30
92001-3022
Unavailable
29
WASHER,BAND
92022-509
$4.73
30
BRACKET,PLATE
59086-501
$18.58
31
NUT-HEX,6MM
311R0600
$0.70
32
LEVER
13168-3701
Unavailable
33
DETENT
59346-503
Unavailable
34
SCREW
92011-562
$1.65
35
HINGE
53009-503
$14.87
36
DECAL,LH ENGINE CVR
56030-3019
Unavailable
37
DECAL, RH. ENGINE CVR
56030-3018
Unavailable
