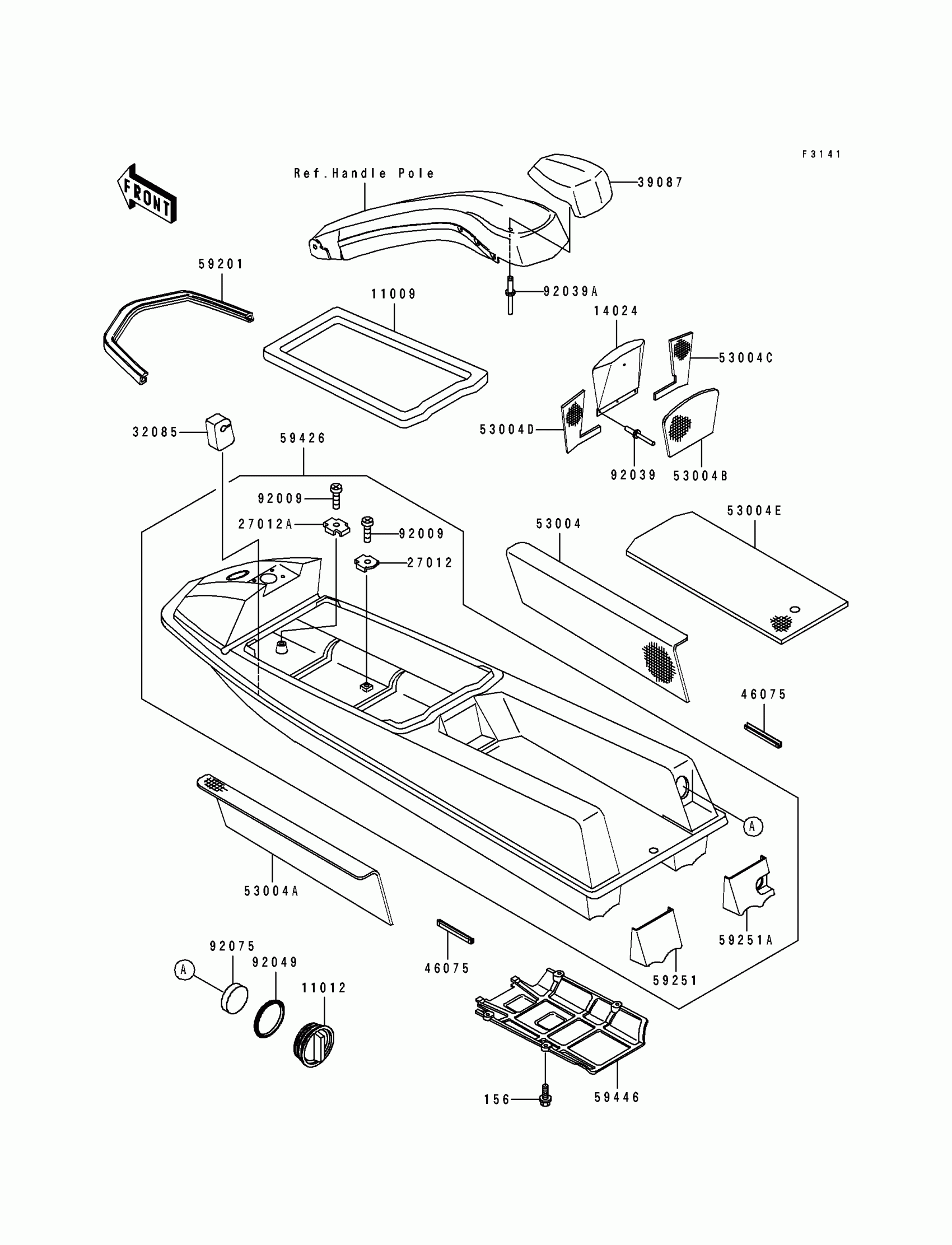

Kawasaki JS440 Hull Diagram
#
Description
Price
11009
GASKET,ENGINE HOOD
92065-539
$74.38
11012
CAP
11012-3721
$10.51
14024
COVER,DASHBOARD
14025-3706
$7.80
27012
HOOK
27012-501
Unavailable
27012A
HOOK
27012-502
Unavailable
32085
DETENT
59346-504
$8.60
39087
PAD-HANDLE,POLE
39087-3701
Unavailable
46075
GRIP,HULL
46075-3701
Unavailable
53004
MAT,DECK FIN,RH
53004-3723
$106.10
53004A
MAT,DECK FIN,LH
53004-3724
$106.10
53004B
MAT,DASHBOARD COVER
53004-3725
Unavailable
53004C
MAT,DASHBOARD,RH
53004-3726
$41.75
53004D
MAT,DASHBOARD,LH
53004-3727
Unavailable
53004E
MAT
59131-502
Unavailable
59201
BUMPER
59201-3691
$14.97
59251
HULL,LH,EXTENSION,JET WHITE
59251-3006-8C
Unavailable
59251A
HULL,RH,EXTENSION,JET WHITE
59251-3713-8C
Unavailable
59426
HULL-COMP,JET WHITE
59426-3778-8C
$1,548.56
59446
COVER-JET PUMP
59446-3718
Unavailable
92009
SCREW,TAPPING
92011-561
Unavailable
92039
RIVET,4MM
92039-3703
$4.69
92039A
RIVET
92039-3712
$4.83
92049
SEAL-OIL
92049-3709
Unavailable
92075
DAMPER,69X16T
92075-3710
$7.65
156
BOLT-WP,6X25
156R0625
$4.76
