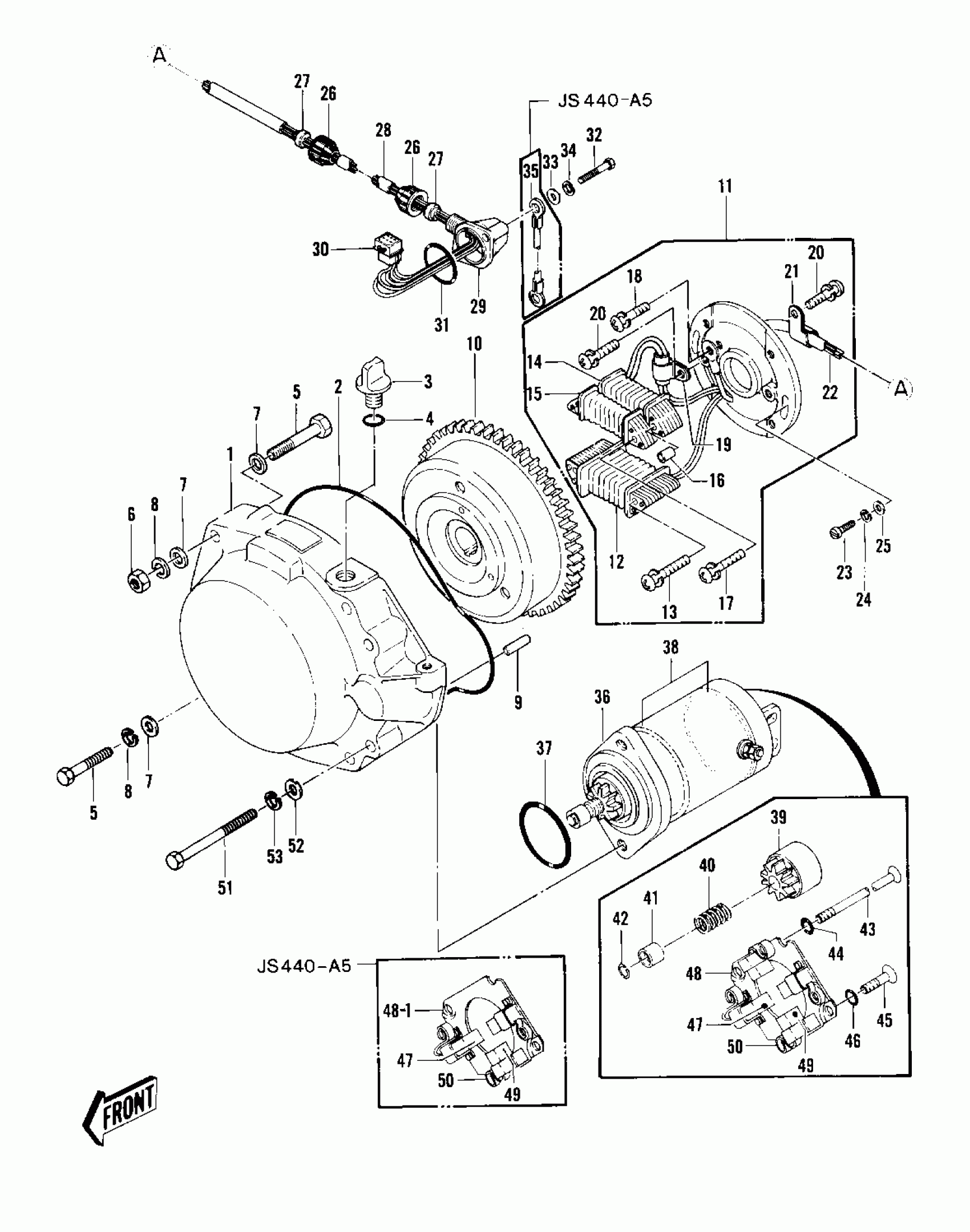

Kawasaki JS440 GENERATOR/STARTER MOTOR ('79-'81 A3/A4/A Diagram
#
1
COVER-GENERATOR
14031-3705
Unavailable
2
RING-O
92055-521
$28.99
3
BREATHER
14069-3709
$48.15
4
RING-O
92055-515
$2.70
5
BOLT 8X50
110R0850
$7.10
6
NUT 8MM
311R0800
$0.70
7
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
8
WASHER SPRING 8MM
461S0800
$0.65
9
PIN-DOWEL
551R0612
$4.69
10
FLYWHEEL ASSY
21050-3005
$353.41
11
STATOR ASSY
21003-524
$559.03
12
COIL,CHARGE
59031-501
Unavailable
13
SCREW,5X34
92011-530
Unavailable
14
COIL,EXCITING
21049-506
Unavailable
15
COIL,PULSING
59026-504
$126.54
16
COLLAR,COIL
92027-509
$4.28
17
SCREW 5X40
92011-533
$3.02
18
SCREW 4X6
92011-559
$0.28
19
CLAMP
92037-520
Unavailable
20
SCREW,4X8
92011-560
Unavailable
21
CLAMP
92037-547
Unavailable
22
HARNESS,WIRING
26001-3006
Unavailable
23
SCREW-PAN-CROS
220B0520
$0.68
24
WASHER SPRING 5MM
461F0500
$0.69
25
WASHER
92022-544
$2.67
26
CAP
11012-3012
$9.11
27
GROMMET
92071-3001
Unavailable
28
TUBE,10X335
92059-3019
$0.98
29
CAP.
59176-517-YR
Unavailable
30
CONNECTOR-CORD
59221-506
$11.17
31
RING-O,35.2X1.9
92055-520
$5.31
32
BOLT,6X36
110R0636
$4.02
33
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
34
WASHER-SPRING,6MM
461S0600
$1.07
36
STARTER-ELECTRIC
21163-3710
Unavailable
37
O RING,65MM
671B2565
$8.86
38
RING-O
92055-517
Unavailable
39
GEAR-SPUR
59051-3005
$437.23
40
SPRING,RETURN
92081-541
Unavailable
41
COLLAR,STOPPER,PINION
92027-513
Unavailable
42
RING-SNAP
92036-517
Unavailable
43
SCREW,6X107
92011-549
Unavailable
44
O RING,6MM
670B1506
$1.28
45
SCREW,4X8
92011-550
$6.30
46
O RING,5MM
670B1505
$3.26
47
BRUSH,(+)
21039-3003
Unavailable
48
HOLDER-ASSY,BRUSH
14079-3002
$224.34
49
BRUSH,(-)
21039-3004
Unavailable
50
SPRING,BRUSH
92081-540
$12.75
51
BOLT,8X80
92001-3011
Unavailable
52
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
53
WASHER SPRING 8MM
461S0800
$0.65
