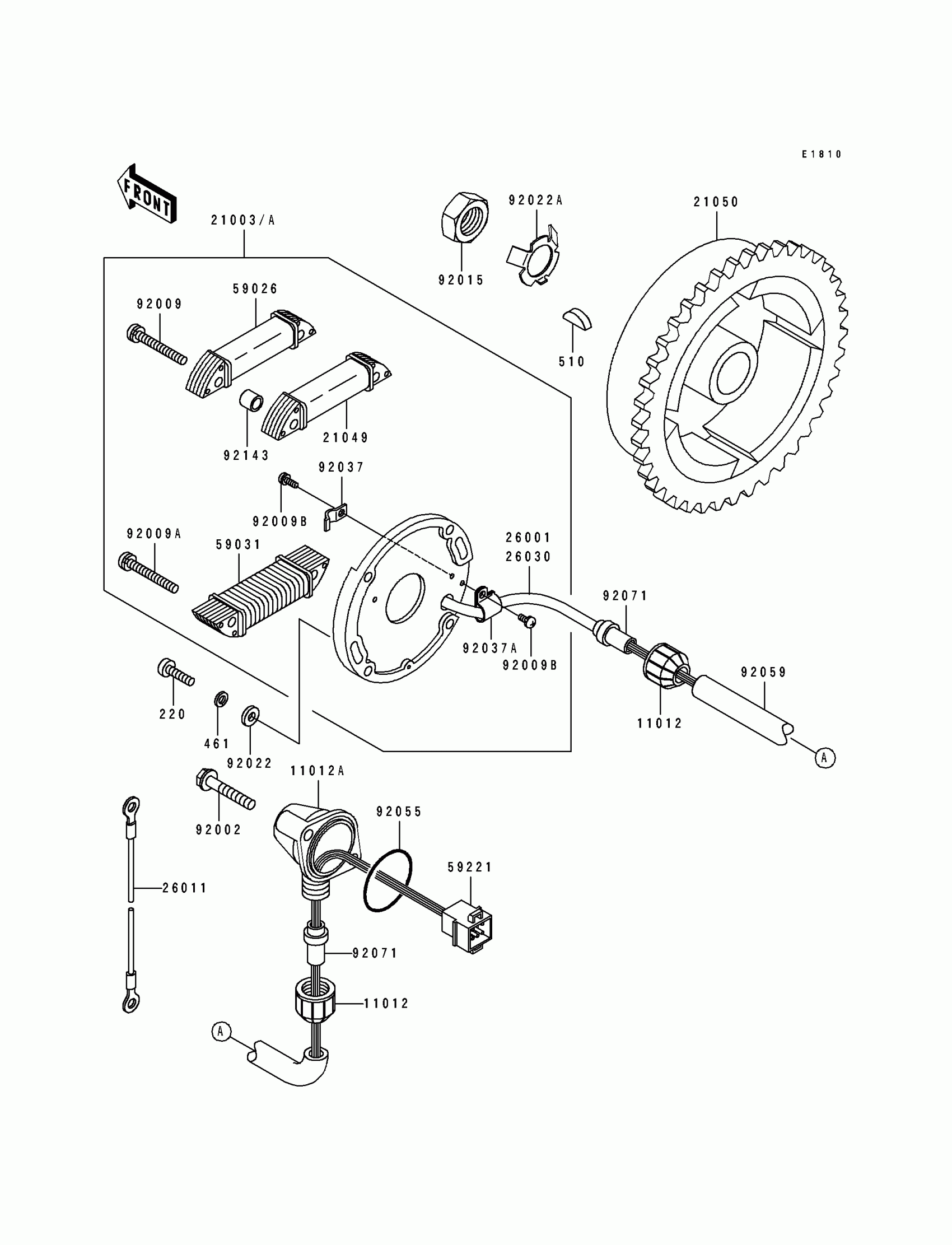

Kawasaki JS440 Generator Diagram
#
Description
Price
11012
CAP
11012-3012
$9.11
11012A
CAP.
59176-517-YR
Unavailable
21003A
STATOR
21003-3715
Unavailable
21049
COIL-EXCITING
21049-3007
Unavailable
21050
FLYWHEEL
21050-3021
$764.47
26011
WIRE-LEAD,BLACK
26011-3006
Unavailable
26030
HARNESS
26030-3701
Unavailable
59026
COIL-PULSING
59026-3008
$126.07
59031
COIL-CHARGING
59031-3002
Unavailable
59221
CONNECTOR-CORD
59221-506
$11.17
92002
BOLT,6X35
92002-3715
$6.61
92009
SCREW,5X38
92009-3008
Unavailable
92009A
SCREW,5X34
92011-530
Unavailable
92009B
SCREW,4X8
92011-560
Unavailable
92015
NUT,20MM
92015-535
$7.64
92022
WASHER
92022-544
$2.67
92022A
WASHER,LOCK,20MM
92022-569
$4.50
92037
CLAMP
92037-520
Unavailable
92037A
CLAMP
92037-547
Unavailable
92055
RING-O,35.2X1.9
92055-520
$5.31
92059
TUBE,10X345
92059-3032
$20.47
92071
GROMMET
92071-3001
Unavailable
92143
COLLAR
92027-3014
$8.43
220
SCREW-PAN-CROS
220B0520
$0.68
461
WASHER SPRING 5MM
461F0500
$0.69
510
WOODRUFF KEY
510A5200
$2.82
