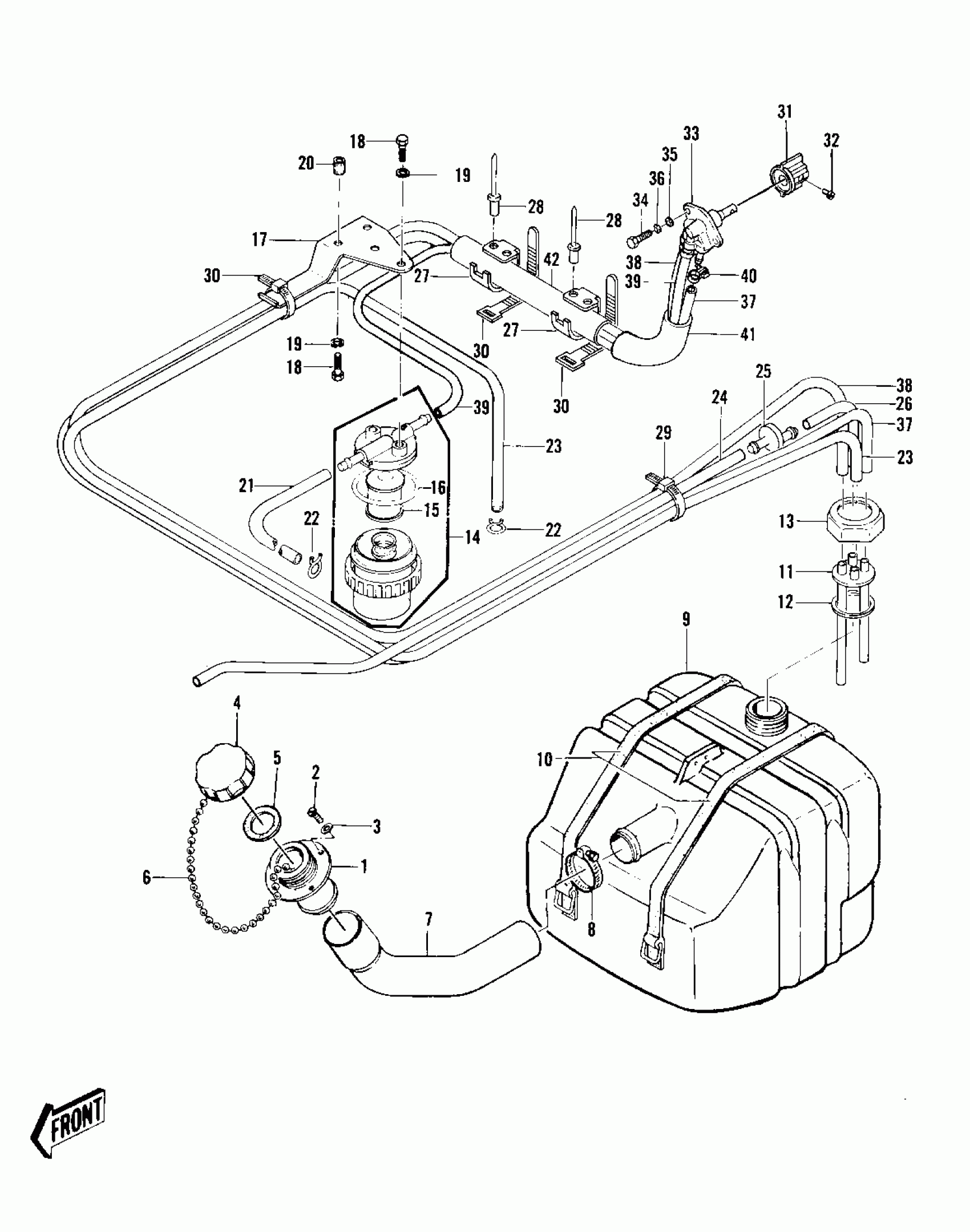

Kawasaki JS440 FUEL TANK ('79-'81 A3/A4/A4A/A5) Diagram
#
1
FILLER,FUEL TANK
59231-3001
$17.77
2
SCREW
92011-562
$1.65
3
WASHER
92022-563
$1.13
4
CAP-TANK
51049-3001
$10.80
5
GASKET,TANK CAP
11009-3020
$13.51
6
CHAIN,FUEL TANK CAP
92057-3003
$3.67
7
TUBE,FUEL INLET
92059-3020
Unavailable
8
CLAMP
92037-3009
$3.70
9
TANK-FUEL
51004-3702
Unavailable
10
BAND,FUEL TANK
92072-521
Unavailable
11
PIPE-COMP,FUEL
31064-3001
Unavailable
12
GASKET
92065-504
$15.31
13
RETAINER
23072-501
Unavailable
14
FILTER-FUEL
49019-3701
Unavailable
15
FILTER,FUEL ELEMENT
14043-5001
Unavailable
16
RING-O,FILTER CUP
92055-3006
$3.07
17
BRACKET,FUEL FILTER
11047-3743
Unavailable
18
BOLT 6X12
110R0612
$1.75
19
WASHER-SPRING,6MM
461S0600
$1.07
20
NUT-INSERT,6MM $$
92015-533
$9.43
21
TUBE,6X10X200
92059-3011
Unavailable
22
CLAMP
92037-1173
$3.49
23
TUBE,6X10X760
92059-3012
$11.18
24
TUBE,FUEL,6X10X940
92059-3025
Unavailable
25
VALVE-RELIEF
49057-3001
$64.85
26
TUBE,5.8X12.2X55
92059-3026
Unavailable
27
CLAMP,TUBE
92037-3005
$5.04
28
RIVET-FUEL LINE CLAMP
59281-505
$2.21
29
BAND,L=123
92072-030
$5.00
30
BAND,L=149
92072-031
$5.00
31
KNOB,FUEL TAP
92077-503
Unavailable
32
SCREW-PAN-CROS,4X8
220R0408
$2.15
33
TAP-ASSY,FUEL
51023-3705
Unavailable
34
BOLT,5X12
110R0512A
Unavailable
35
WASHER-PLAIN,5MM
411S0500
$0.94
36
WASHER-SPRING,5MM
461S0500
$0.49
37
TUBE,6X1300
92059-552
Unavailable
38
TUBE,6X1300,RESERVE
92059-553
Unavailable
39
TUBE,6X10X960
92059-3007
Unavailable
40
CLAMP
92037-551
$3.49
41
TUBE,GUARD
92059-3008
Unavailable
42
TUBE,VINYL,22X350
92059-3018
$30.46
