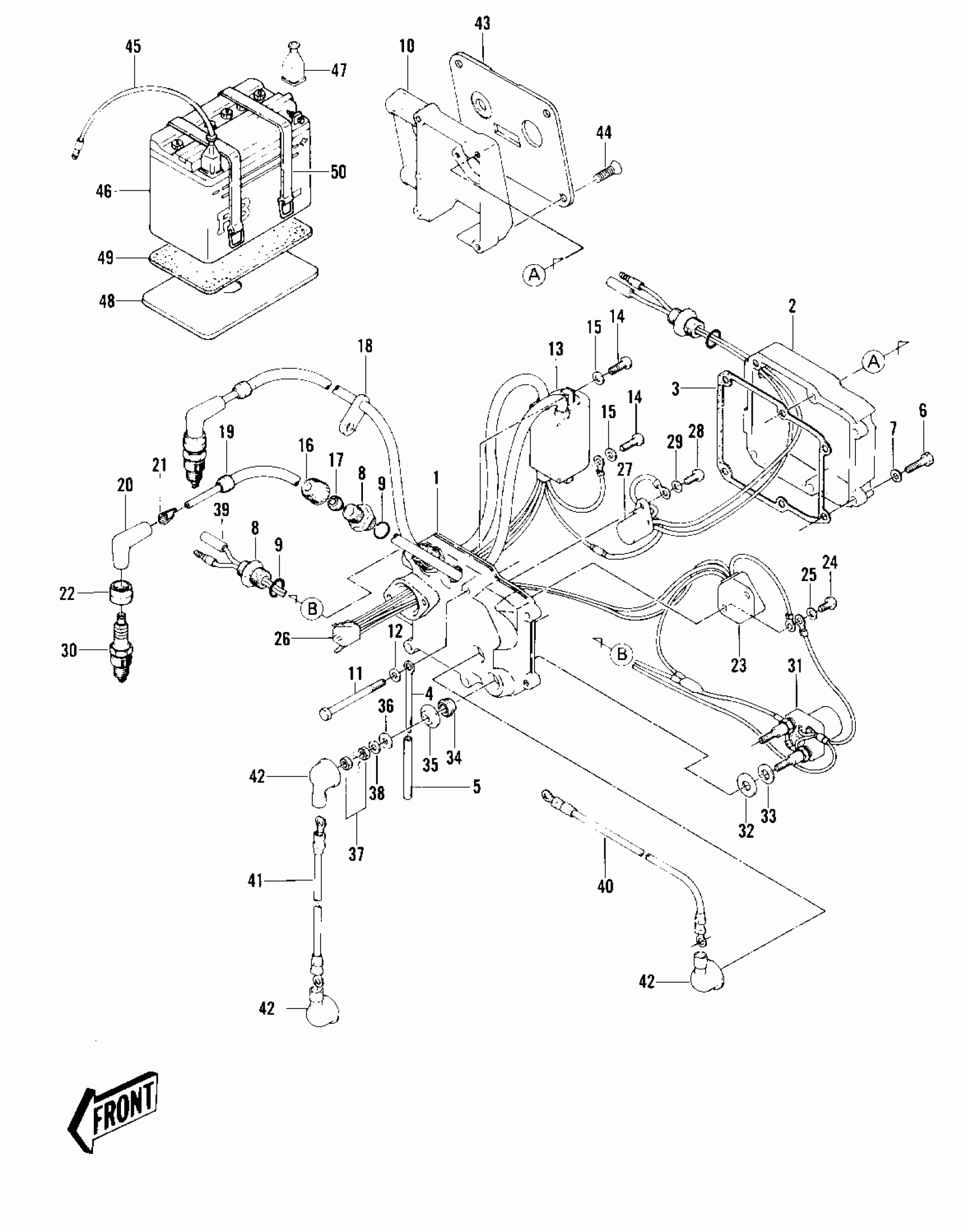

Kawasaki JS440 ELECTRIC CASE (JS440-A5) Diagram

#

Description
Price

1

CASE-ELECTRIC,FR

59416-3004-YR

Unavailable

2

CASE-ELECTRIC,RR

59416-3003-YR

$75.52

3

GASKET,ELECTRIC CASE

11009-3781

$24.29

4

CLAMP,L=100

92037-3736

$5.52

5

TUBE,VINYL,5X73

92059-3017

Unavailable

6

BOLT,6X25

110R0625

$3.20

7

WASHER-PLAIN,6MM

411S0600

$2.06

8

JOINT

59071-3001

$6.29

9

O RING,16MM

670B2016

$1.36

10

CASE,FUEL TAP

32099-3752

$153.63

11

BOLT,6X80

110R0680

$8.52

12

WASHER-PLAIN,6MM

411S0600

$2.06

13

IGNITER,CDI

21119-3016

Unavailable

14

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

15

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

16

CAP

11012-3005

$5.54

17

GROMMET

92071-527

$6.68

18

GROMMET

92071-529

Unavailable

19

GROMMET

92071-517

$0.69

20

CAP-SPARK PLUG

21130-009

$22.10

21

TERMINAL,SPARK PLUG CAP

92101-001

$1.69

22

COVER,PLUG

92071-501

$4.94

23

REGULATOR-VOLTAGE

21066-3004

Unavailable

24

SCREW PAN HEAD 6X12

220B0612

Unavailable

25

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

26

CONNECTOR-CORD

59221-505

Unavailable

27

RELAY,STOP SWITCH

27034-3002

Unavailable

28

SCREW-PAN-CROS,6X16

220B0616

$2.84

29

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

30

PLUG-SPARK,B7ES(NGK)

92070-3003

Unavailable

31

SWITCH,MAGNETIC

27010-3007

Unavailable

32

WASHER

92022-3035

$3.52

33

WASHER PLAIN 10MM

410B1000

$0.58

34

GROMMET

92071-3004

$3.99

35

WASHER

92022-3036

Unavailable

36

WASHER

92022-553

$1.24

37

NUT-HEX,6MM

311R0600

$0.70

38

WASHER-PLAIN,6MM

411S0600

$2.06

39

WIRE-LEAD,ORANGE

26011-3003

Unavailable

40

WIRE-LEAD,BATTERY(+)

26011-3778

Unavailable

41

WIRE-LEAD,STARTER

26011-3005

Unavailable

42

CAP

11012-3004

$7.55

43

PANEL-CONTROL

59226-3702

Unavailable

44

SCREW-COUNTERSUNK,8X22

92009-3004

$7.49

45

WIRE-LEAD,BATTERY(-)

26011-3776

Unavailable

46

FB BAT 12N16-3B

26012-1013

Unavailable

47

CAP.,TERMINAL

59176-501

$8.94

48

PLATE,BATTERY

13169-3014

Unavailable

49

DAMPER,BATTERY

92075-509

$19.35

50

BAND,BATTERY,L=306

92072-512

$27.70
