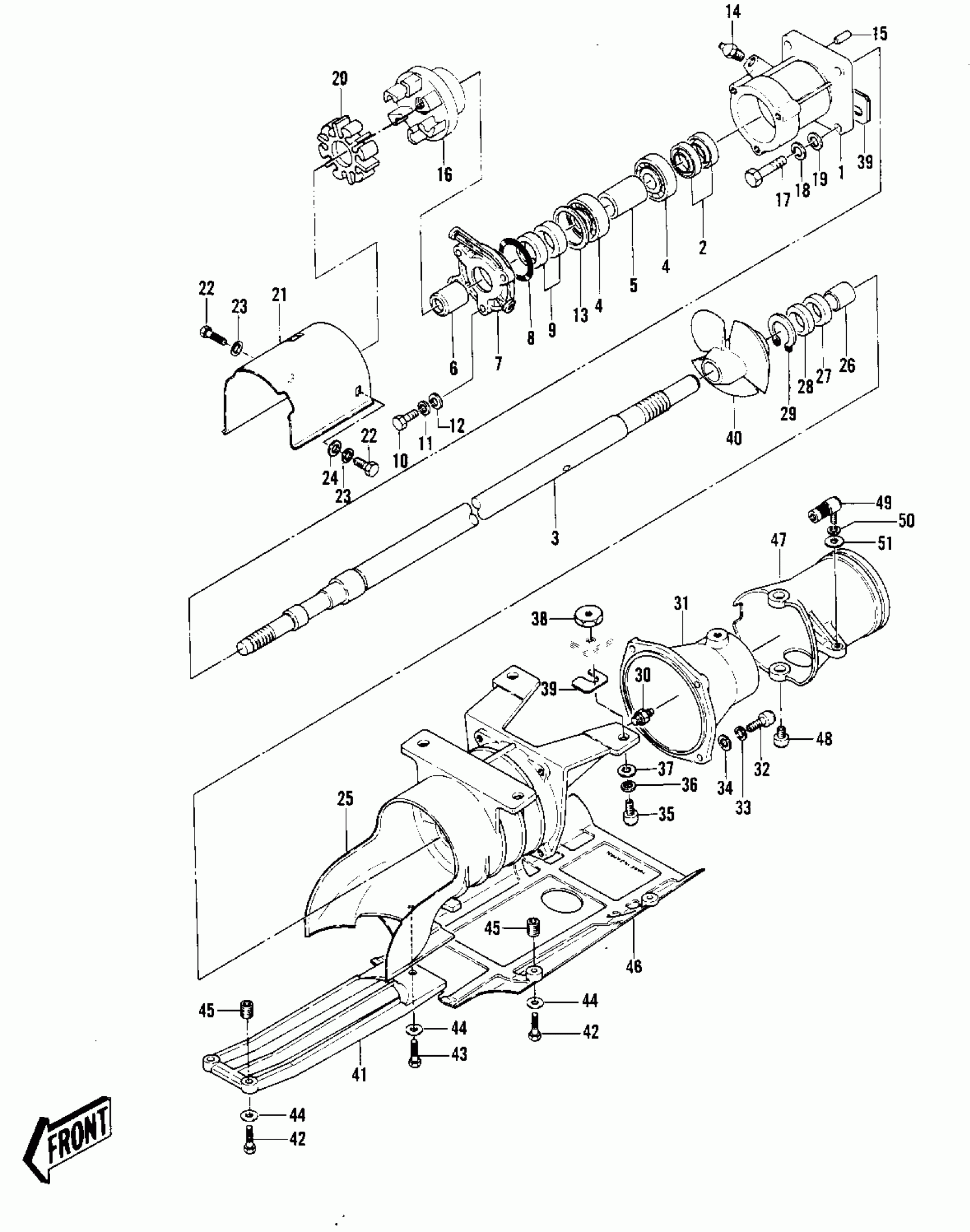

Kawasaki JS440 DRIVE SHAFT/JET PUMP ('79-'81 A3/A4/A4A/ Diagram
#
1
HOUSING-BEARING
41046-502
$169.04
2
SEAL-OIL,AC1799EX
92050-501
Unavailable
3
SHAFT,DRIVE
59111-515
$596.58
4
BEARING-BALL,#6305C3
601B6305
$25.78
5
COLLAR
92027-502
$15.69
6
SLEEVE,BEARING
42036-501
Unavailable
7
COVER,BEARING
14025-3008
Unavailable
8
RING-O
92055-501
Unavailable
9
SEAL-OIL,AC1799EX
92050-501
Unavailable
10
BOLT,8X25
110R0825
$2.43
11
WASHER SPRING 8MM
461S0800
$0.65
12
WASHER-PLAIN,8MM
411S0800
$3.09
13
SHIM,T=0.15
92025-502
Unavailable
13
SHIM,T=0.3
92025-503
Unavailable
14
FITTING,GREASE
92005-501
Unavailable
15
PIN-DOWEL
551R0612
$4.69
16
COUPLING
42034-3706
Unavailable
17
BOLT,8X25
110R0825
$2.43
18
WASHER SPRING 8MM
461S0800
$0.65
19
WASHER-PLAIN,8MM
411S0800
$3.09
20
DAMPER,COUPLING
92075-520
$91.03
21
COVER,COUPLING
59036-567
Unavailable
22
BOLT,6X16
110R0616
$3.13
23
WASHER-SPRING,6MM
461S0600
$1.07
24
WASHER-PLAIN,6MM
411S0600
$2.06
25
CASE-PUMP
59336-3701
Unavailable
26
BUSHING
92028-503
Unavailable
27
SEAL-OIL,SCY20368
92050-502
$27.73
28
SEAL-OIL,SC20367
92050-503
$24.91
29
RING-SNAP
92036-502
Unavailable
30
FITTING,GREASE
92005-501
Unavailable
31
NOZZLE-PUMP
59136-3001
$111.30
32
BOLT,8X25
110R0825
$2.43
33
WASHER SPRING 8MM
461S0800
$0.65
34
WASHER
92022-562
$2.41
35
BOLT-SOCKET
120R1025
$9.17
36
WASHER-SPRING,10MM
461S1000
$1.03
37
WASHER-PLAIN,10MM
411S1000
$2.67
38
NUT,10MM
92015-3005
Unavailable
39
SHIM,T=0.3MM
92025-3701
Unavailable
39
SHIM,T=0.3MM
92025-3701
Unavailable
39
SHIM,T=0.5MM
92025-3702
Unavailable
39
SHIM,T=1.0MM
92025-3703
Unavailable
40
IMPELLER
59256-504
Unavailable
41
GRATE
59366-3001
Unavailable
42
BOLT,6X25
110R0625
$3.20
43
BOLT,6X14
110R0614
$3.40
44
WASHER-PLAIN,6MM
411S0600
$2.06
45
NUT,INSERT,6MM
92015-523
Unavailable
46
COVER-JET PUMP
59446-3002
$164.32
47
NOZZLE-STRG
59476-3702
Unavailable
48
BOLT 6X11
92003-532
$9.11
49
JOINT-BALL
59266-3707
$66.16
50
WASHER-SPRING,6MM
461S0600
$1.07
51
WASHER
92022-567
$2.67
