Description

Price

13A

SHIM,T=0.3

92025-503

Unavailable

13

SHIM,T=0.15

92025-502

Unavailable

14

FITTING,GREASE

92005-501

Unavailable

15

PIN-DOWEL

551R0612

$4.69

16A

COUPLING

42034-3706

Unavailable

20

DAMPER,COUPLING

92075-520

$91.03

21

COVER,COUPLING

59036-567

Unavailable

25A

SHIM,T=0.5MM

92025-3702

Unavailable

25B

SHIM,T=1.0MM

92025-3703

Unavailable

25C

SHIM,T=1.5MM

92025-3704

Unavailable

25

SHIM,T=0.3MM

92025-3701

Unavailable

26

BOLT,6X16

92150-3714

$9.01

27

BOLT-WSP-SMALL,8X25

155R0825

$5.77

1

HOUSING-BEARING

41046-502

$169.04

2

SEAL-OIL,AC1799EX

92050-501

Unavailable

3

SHAFT,DRIVE

59111-515

$596.58

4

BEARING-BALL,#6305C3

601B6305

$25.78

5

COLLAR

92027-502

$15.69

6

SLEEVE,BEARING

42036-501

Unavailable

7

COVER,BEARING

14025-3008

Unavailable

8

RING-O

92055-501

Unavailable

9

SEAL-OIL,AC1799EX

92050-501

Unavailable

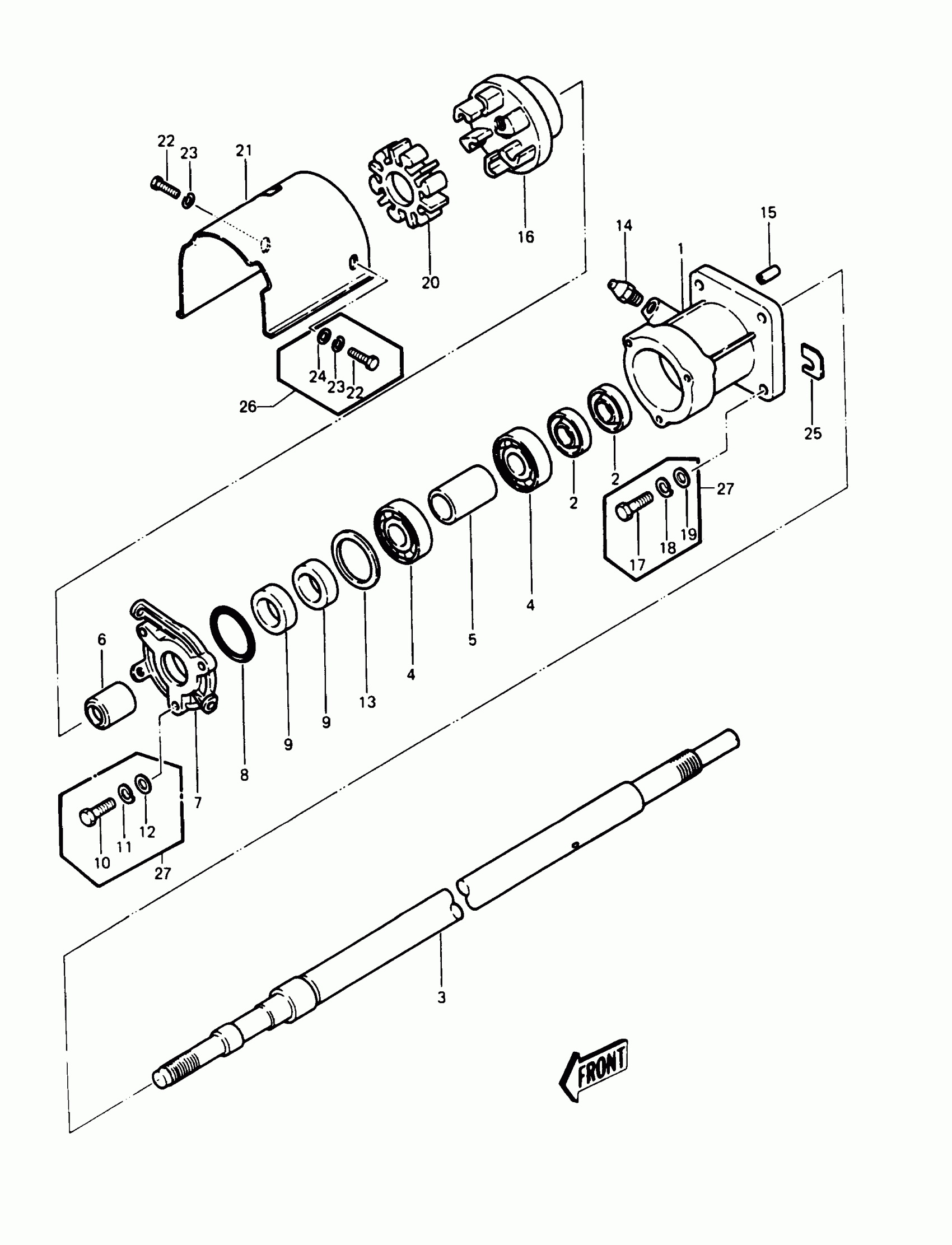

Kawasaki JS440 DRIVE SHAFT Diagram

SHIM,T=0.3

SHIM,T=0.15

FITTING,GREASE

PIN-DOWEL

COUPLING

DAMPER,COUPLING

COVER,COUPLING

SHIM,T=0.5MM

SHIM,T=1.0MM

SHIM,T=1.5MM

SHIM,T=0.3MM

BOLT,6X16

BOLT-WSP-SMALL,8X25

HOUSING-BEARING

SEAL-OIL,AC1799EX

SHAFT,DRIVE

BEARING-BALL,#6305C3

COLLAR

SLEEVE,BEARING

COVER,BEARING

RING-O

SEAL-OIL,AC1799EX
