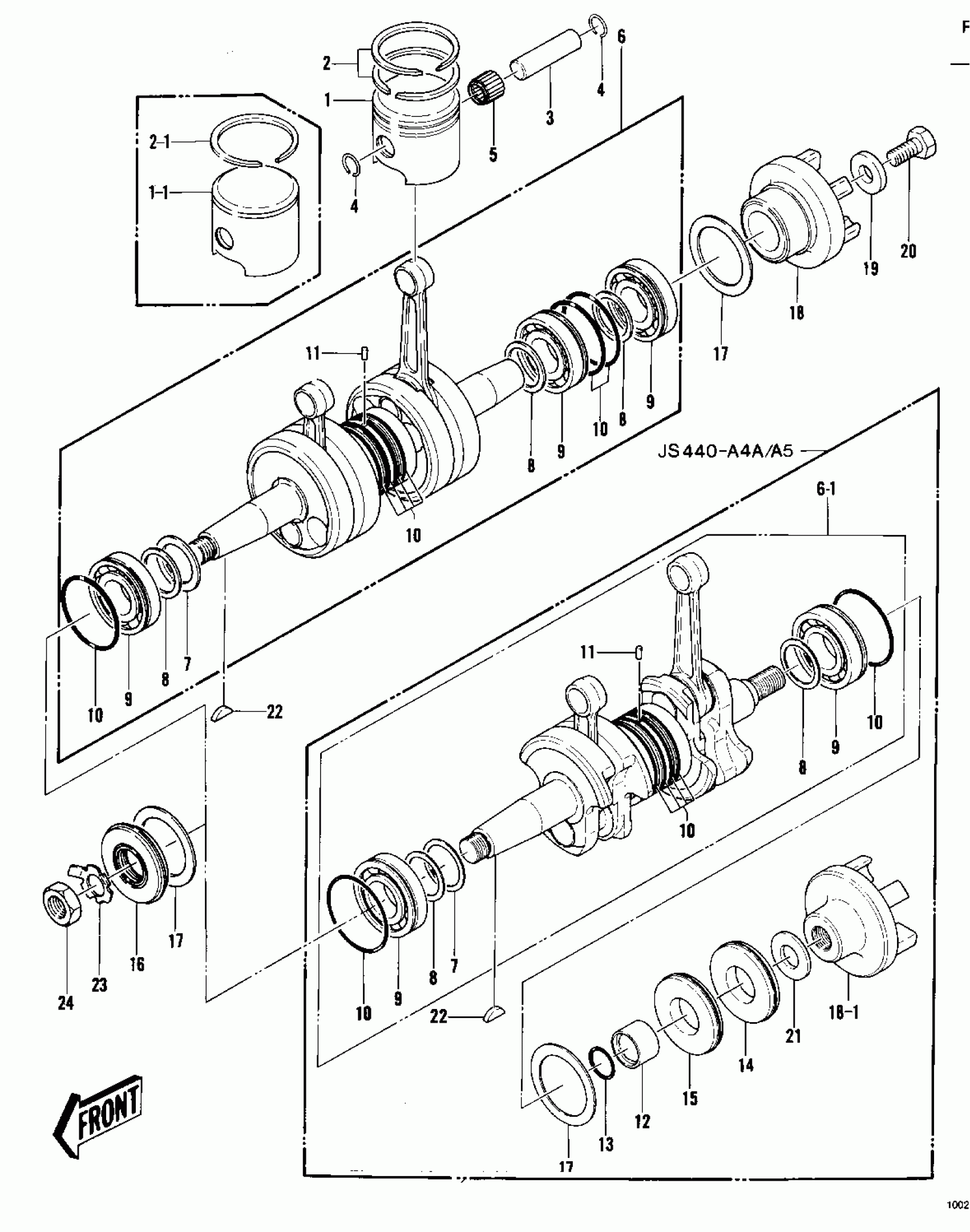

Kawasaki JS440 CRANKSHAFT/PISTONS ('79-'81 A3/A4/A4A/A5 Diagram
#
Description
Price
1
PISTON-ENGINE,STD
13001-6001
Unavailable
1-1
PISTON-ENGINE
13001-3017
Unavailable
1-1
PISTON-ENGINE L,O/S 0.50MM
13029-3001
Unavailable
2
PISTON RING SET
13008-530
Unavailable
2
PISTON RING SET,0.25
13026-502
Unavailable
2-1
RING-PISTON TOP
13003-3014
Unavailable
2-1
RING-PISTON TOP,O/S 0.50MM
13003-3015
Unavailable
3
PIN-PISTON
13002-504
$13.02
4
CIRCLIP PISTON PIN
92036-004
$0.65
4
CIRCLIP PISTON PIN
92036-004
$0.65
5
BEARING-NEEDLE,KBK16X20X22.8X6
13033-3005
$21.61
5
BEARING-NEEDLE,KBK16X20X22.8X6
13033-3005
$21.61
6
CRANKSHAFT ASSY
13036-523
Unavailable
7
SHIM,T=1.0MM
92025-532
$2.47
8
SHIM,T=0.1
92025-513
Unavailable
8
SHIM,T=0.2
92025-518
Unavailable
8
SHIM,T=0.3
92025-523
Unavailable
8
SHIM,T=0.4
92025-527
Unavailable
8
SHIM,T=0.5
92025-530
Unavailable
8
SHIM,T=0.6
92025-533
Unavailable
9
BEARING-BALL,6206NC3
92045-505
Unavailable
10
RING-O
92055-504
Unavailable
11
PIN-DOWEL,4X10
551A0410
$0.65
16
SEAL-OIL,TCY306210
92050-507
Unavailable
17
WASHER,CRANK,RH
92022-3021
$5.68
18
COUPLING ASSY,DRIVER
42053-3003
$245.57
19
WASHER,6.0T
92022-568
$27.41
20
BOLT,1/2 INCHX27
92003-537
Unavailable
22
WOODRUFF KEY
510A5200
$2.82
23
WASHER,LOCK,20MM
92022-569
$4.50
24
NUT,20MM
92015-535
$7.64
