Description

Price

13001

PISTON-ENGINE

13001-3017

$134.78

13002

PIN-PISTON

13002-504

$13.02

13003

RING-PISTON TOP

13003-3014

Unavailable

13003A

RING-PISTON TOP,O/S 0.50MM

13003-3015

Unavailable

13029

PISTON-ENGINE L,O/S 0.50MM

13029-3001

Unavailable

13031

CRANKSHAFT-COMP

13031-3011

Unavailable

13033

BEARING-NEEDLE,KBK16X20X22.8X6

13033-3005

$21.61

42036

SLEEVE,CRANKSHAFT OUT

42036-3007

Unavailable

92022

WASHER,CRANK,RH

92022-3021

$5.68

92025

SHIM,T=0.1

92025-513

Unavailable

92025A

SHIM,T=0.2

92025-518

Unavailable

92025B

SHIM,T=0.3

92025-523

Unavailable

92025C

SHIM,T=0.4

92025-527

Unavailable

92025D

SHIM,T=0.5

92025-530

Unavailable

92025E

SHIM,T=1.0MM

92025-532

$2.47

92025F

SHIM,T=0.6

92025-533

Unavailable

92033

RING-SNAP

92036-507

$0.65

92045

BEARING-BALL,6206NC3

92045-505

Unavailable

92049

SEAL-OIL,OIL,TCY306210

92049-3005

$72.79

92049A

SEAL-OIL,OIL,DCY30629

92049-3006

$19.39

92055

RING-O,22MM

92055-3009

Unavailable

92055A

RING-O

92055-504

Unavailable

551

PIN-DOWEL,4X10

551A0410

$0.65

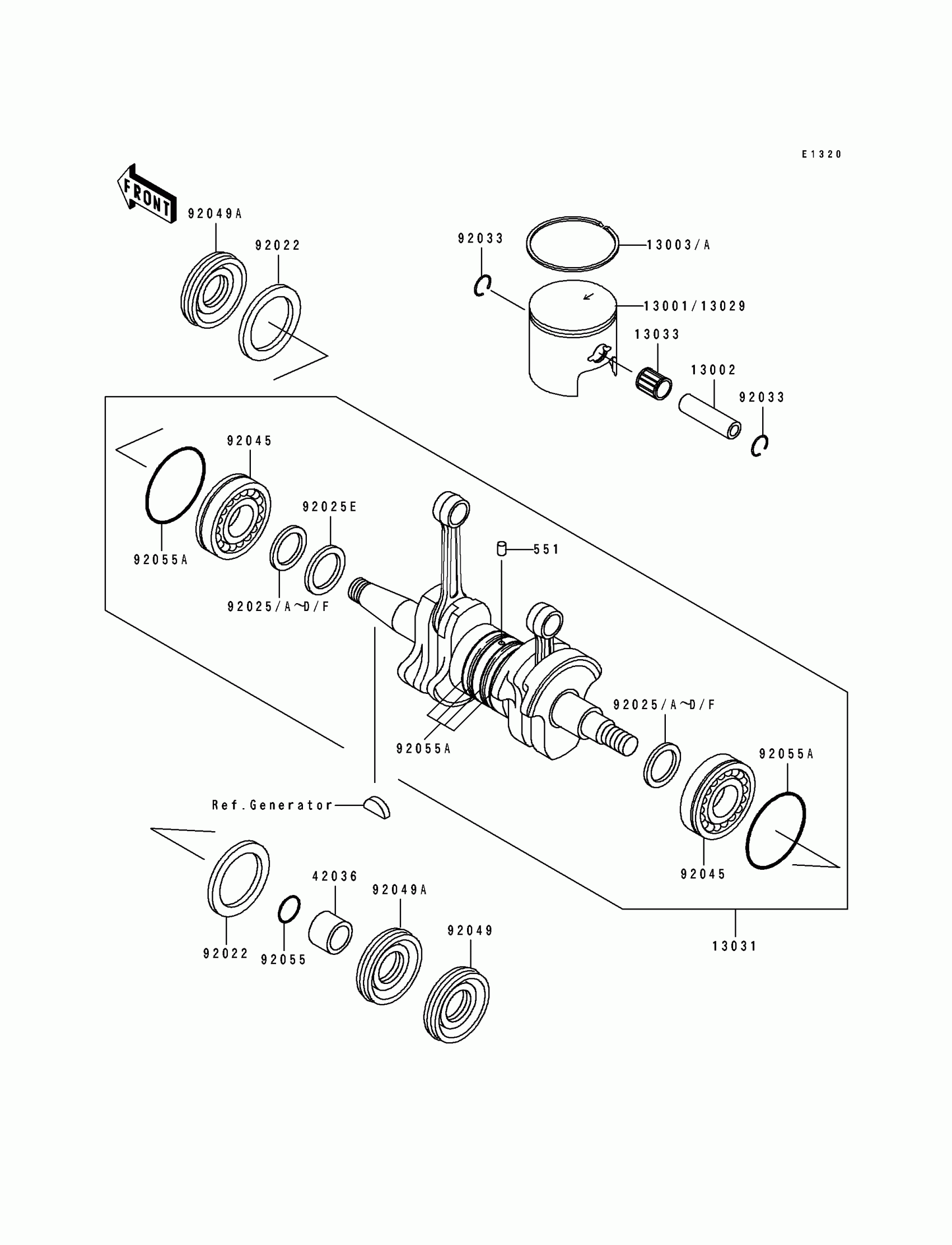

Kawasaki JS440 Crankshaft/Piston Diagram

PISTON-ENGINE

PIN-PISTON

RING-PISTON TOP

RING-PISTON TOP,O/S 0.50MM

PISTON-ENGINE L,O/S 0.50MM

CRANKSHAFT-COMP

BEARING-NEEDLE,KBK16X20X22.8X6

SLEEVE,CRANKSHAFT OUT

WASHER,CRANK,RH

SHIM,T=0.1

SHIM,T=0.2

SHIM,T=0.3

SHIM,T=0.4

SHIM,T=0.5

SHIM,T=1.0MM

SHIM,T=0.6

RING-SNAP

BEARING-BALL,6206NC3

SEAL-OIL,OIL,TCY306210

SEAL-OIL,OIL,DCY30629

RING-O,22MM

RING-O

PIN-DOWEL,4X10
