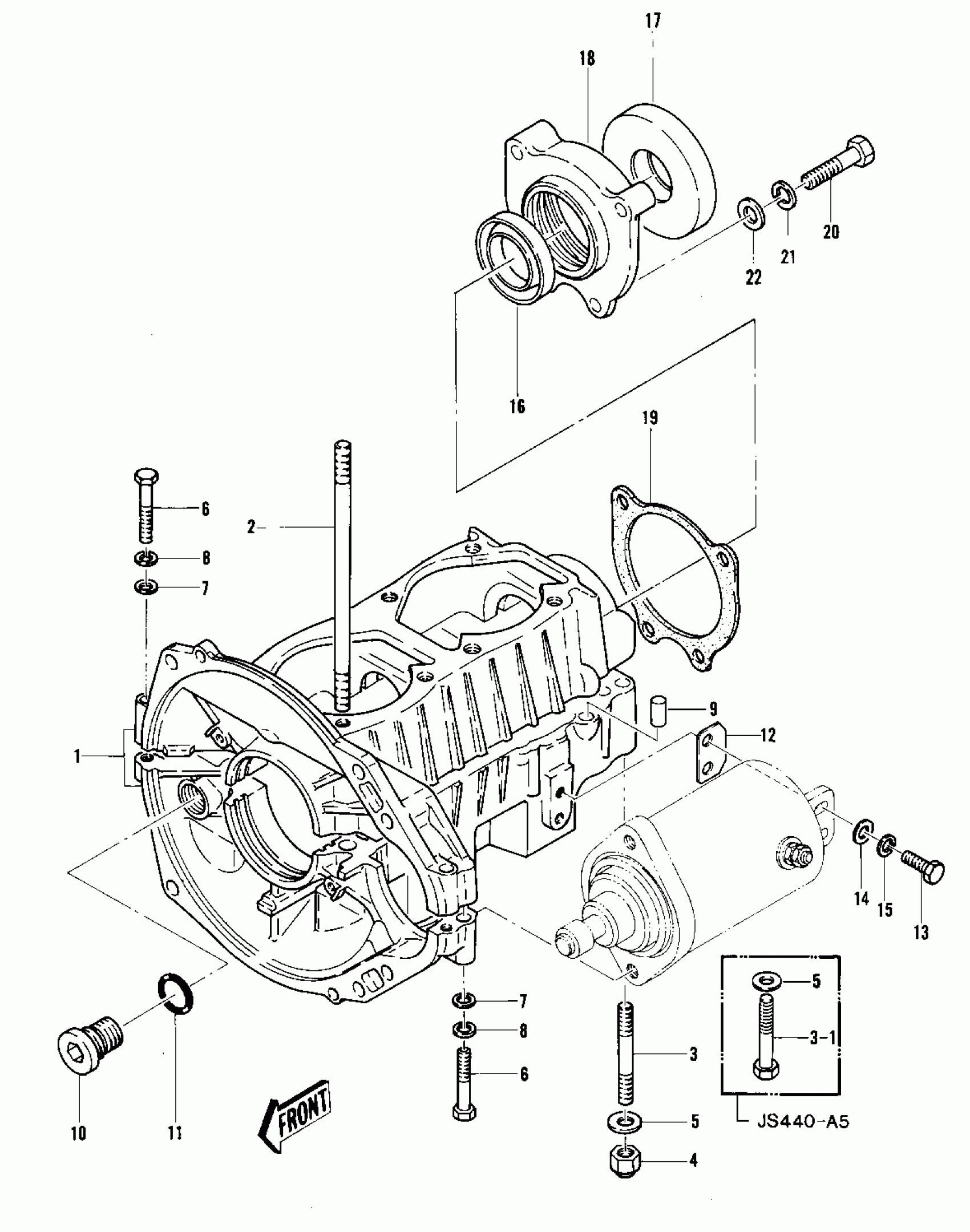

Kawasaki JS440 CRANKCASE ('79-'81 A3/A4/A4A/A5) Diagram

#

Description
Price

1

CRANKCASE SET

14001-3015

Unavailable

2

STUD,8X167

92004-507

$11.39

3

STUD

92004-514

$4.04

4

NUT-CAP,8MM

92015-3003

$6.60

5

WASHER-PLAIN-SMALL,8MM

410S0800

$2.58

6

BOLT 6X40

110R0640

$5.78

7

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

8

WASHER-SPRING,6MM

461S0600

$1.07

9

PIN,DOWEL,6.3X8X14

92042-007

$5.70

10

JOINT

59071-516

Unavailable

11

O RING,16MM

670B2016

$1.36

12

SHIM,STARTER,T=0.4

92025-3012

Unavailable

12

SHIM,STARTER,T=0.6

92025-3013

Unavailable

12

SHIM,STARTER,T=0.8

92025-3014

Unavailable

13

BOLT,6X20

110R0620

$5.31

14

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

15

WASHER-SPRING,6MM

461S0600

$1.07

16

SEAL,OIL DC305513

92050-512

Unavailable

17

SEAL,OIL SCY547410

92050-508

Unavailable

18

HOUSING,OIL SEAL

23072-513-9G

$102.01

19

GASKET,HOUSING

92065-515

Unavailable

20

BOLT,8X38

92001-3017

$10.34

21

WASHER SPRING 8MM

461S0800

$0.65

22

WASHER-PLAIN-SMALL,8MM

410S0800

$2.58
