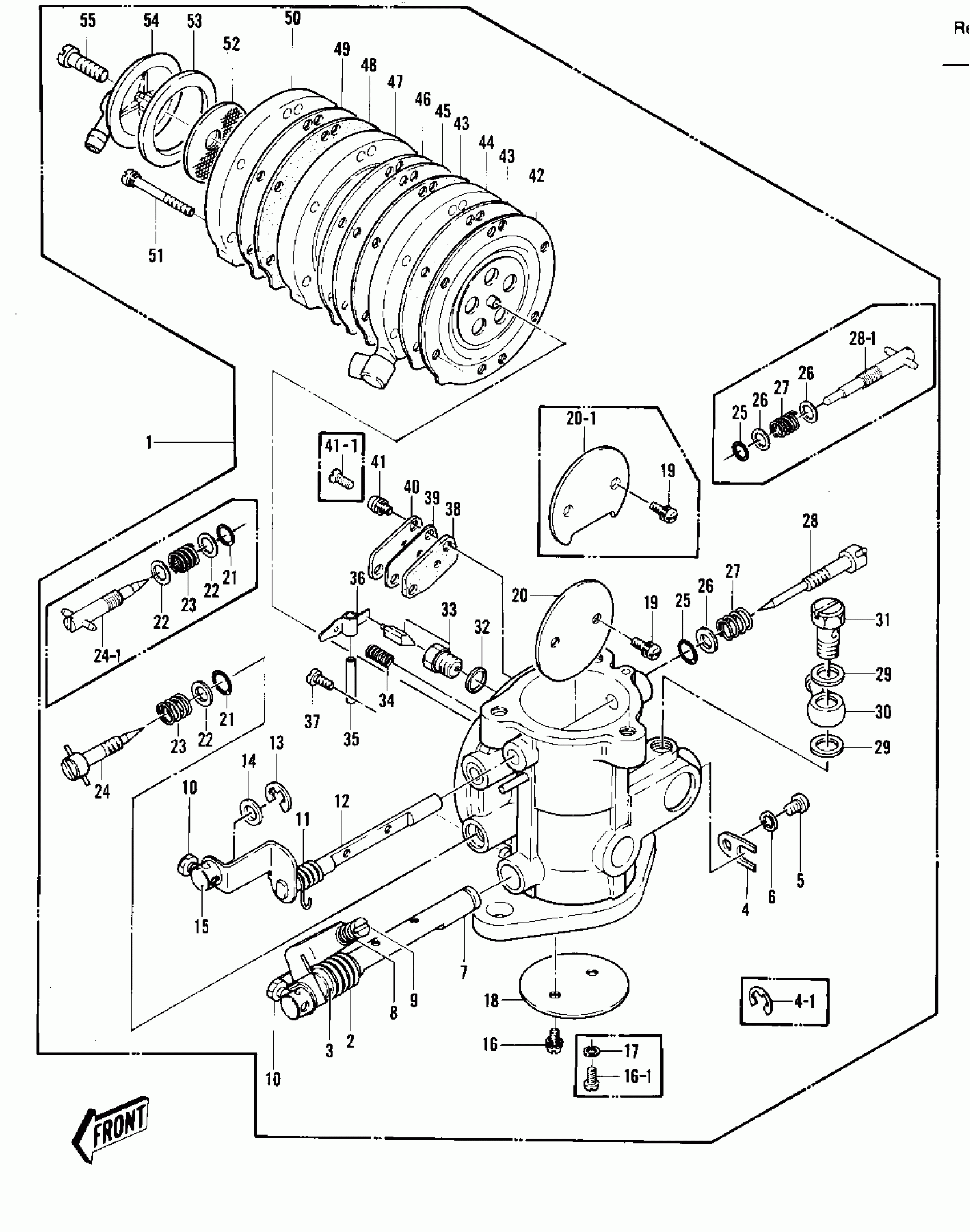

Kawasaki JS440 CARBURETOR ('79-'81 A3/A4/A4A/A5) Diagram

#

Description
Price

1

CARBURETOR

16001-3003-YR

$383.00

2

SPRING,THROTTLE SHAFT

92081-547

$6.59

3

BUSHING,THRTLE SHAFT

92028-514

$26.24

4

PLATE,THROTTLE SHAFT

59086-543

$6.18

5

SCREW PAN HEAD 4X6

220B0406

$1.67

6

WASHER SPRING 4MM

461F0400

Unavailable

7

THROTTLE SHAFT ASSY

59111-520

$82.80

8

SPRING,CABLE PULLY

16040-022

Unavailable

9

SCREW,4X20

92009-3009

$6.64

10

BOLT,4X8

92001-3026

Unavailable

11

SPRING

92081-525

Unavailable

12

CHOKE SHAFT ASS'Y

59111-513

$27.90

13

CIRCLIP,5M/M,SUS304

92033-3004

Unavailable

14

WASHER,PLAIN,6NYLON

92022-3020

Unavailable

15

TERMINAL,CHOKE SHAFT

21169-3008

Unavailable

16

SCREW 3X7

92011-516

Unavailable

18

VALVE,THROTTLE

16025-503

$43.92

19

SCREW 3X5

92011-517

Unavailable

20

VALVE,CHOKE

16126-3001

Unavailable

21

"0" RING

92055-510

Unavailable

22

WASHER

92022-537

Unavailable

23

SPRING

92081-528

Unavailable

24

SCREW,LOW SPEED

59271-506

$14.60

25

"0" RING,DRAIN PLUG

92055-1093

$7.29

26

WASHER

92065-528

Unavailable

27

SPRING

92081-534

Unavailable

28

SCREW,HIGH SPEED

59271-507

$47.22

29

GASKET-BANJO BOLT

92065-078

Unavailable

30

BANJO-CARB

59071-505

$29.91

31

BOLT,BANJO

92003-521

Unavailable

32

WASHER FLOAT VLV SEAT

16029-004

$3.89

33

VALVE-SEAT

16030-503

Unavailable

34

SPRING

92081-536

Unavailable

35

FLOAT PIN

16032-006

$7.29

36

ARM

59001-506

Unavailable

37

SCREW 3X7

92011-516

Unavailable

38

GASKET

11060-3706

Unavailable

39

DIAPHRAGM,CHECK SEAT

51069-501

Unavailable

40

PLATE-CARB. SIDE

59086-541

$14.92

41

SCREW 3X7

92011-516

Unavailable

42

DIAPHRAGM,MAIN

51069-502

$8.87

43

GASKET

11060-3704

Unavailable

44

BODY,DIAPHRAGM(1)

59021-514

$140.05

45

GASKET

11009-3036

Unavailable

46

DIAPHRAGM,PUMP

43028-3002

Unavailable

47

BODY,DIAPHRAGM(2)

59336-3002

Unavailable

48

GASKET

11060-3705

Unavailable

49

DIAPHRAGM,PUMP

43028-3001

Unavailable

50

BODY,DIAPHRAGM(3)

59336-3003

$77.43

51

SCREW 4X30

92011-515

Unavailable

52

FILTER

14037-504

$15.93

53

GASKET

92065-526

$15.19

54

COVER-CARB. SIDE

59036-530

$14.79

55

SCREW 4X12

92011-510

$7.65
