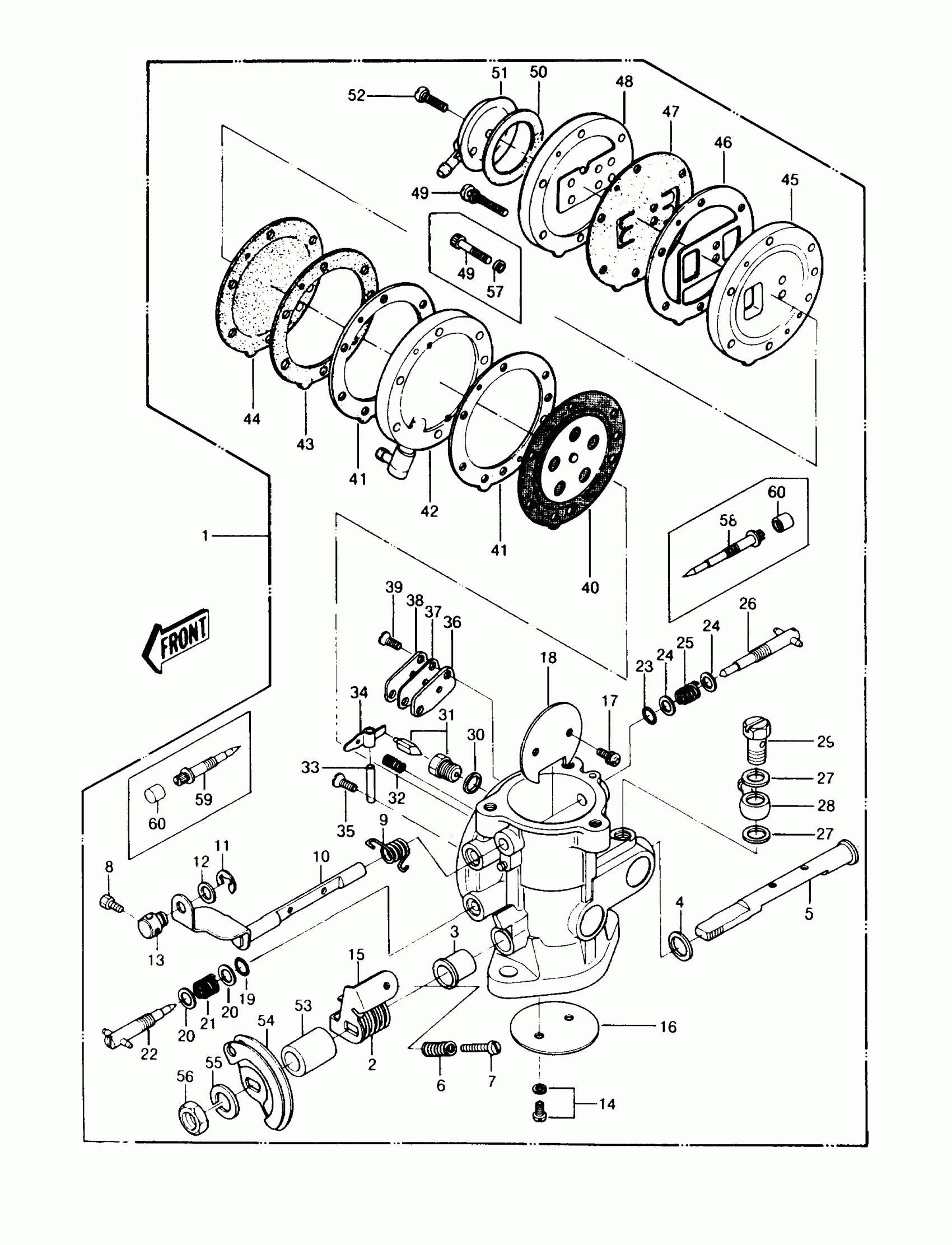

Kawasaki JS440 Carburetor Diagram

#

Description
Price

11

CIRCLIP,5M/M,SUS304

92033-3004

Unavailable

12

WASHER,PLAIN,6NYLON

92022-3020

Unavailable

13

TERMINAL,CHOKE SHAFT

21169-3008

Unavailable

15A

LEVER-THROTTLE

39075-3706

$26.63

19

"0" RING

92055-510

Unavailable

20

WASHER

92022-537

Unavailable

21

SPRING

92081-528

Unavailable

23

RING-O

92055-511

$7.29

24

WASHER

92065-528

Unavailable

25

SPRING

92081-534

Unavailable

27

GASKET-BANJO BOLT

92065-078

Unavailable

28

BANJO-CARB

59071-505

$29.91

29

BOLT,BANJO

92003-521

Unavailable

30

WASHER FLOAT VLV SEAT

16029-004

$3.89

31

VALVE-SEAT

16030-503

Unavailable

32

SPRING

92081-536

Unavailable

33

FLOAT PIN

16032-006

$7.29

34

ARM

59001-506

Unavailable

35

SCREW

92009-3714

Unavailable

1A

CARBURETOR-ASSY

15001-3752

$328.40

2

SPRING,THROTTLE SHAFT

92144-3715

$32.28

3

BUSHING,CARBURETOR

92028-3730

$24.93

6A

SPRING

92144-3722

$9.22

7A

SCREW,4X18

92009-2245

$7.65

8

BOLT,4X8

92001-3026

Unavailable

36

GASKET

92065-544

Unavailable

37

DIAPHRAGM,CHECK SEAT

51069-501

Unavailable

38

PLATE-CARB. SIDE

59086-541

$14.92

39

SCREW

92009-3714

Unavailable

40

DIAPHRAGM,MAIN

51069-502

$8.87

41

GASKET

92065-531

Unavailable

42

BODY,DIAPHRAGM(1)

59021-514

$140.05

43

GASKET

11009-3036

Unavailable

44

DIAPHRAGM,PUMP

43028-3002

Unavailable

45

BODY,DIAPHRAGM(2)

59336-3002

Unavailable

46

GASKET

92065-532

Unavailable

47

DIAPHRAGM,PUMP

43028-3001

Unavailable

48

BODY,DIAPHRAGM(3)

59336-3003

$77.43

49A

BOLT

92150-3757

$11.10

50

GASKET

92065-526

$15.19

51

COVER-CARB. SIDE

59036-530

$14.79

52

SCREW 4X12

92011-510

$7.65

53

COLLAR,THROTTLE SHAFT

92027-3709

$29.41

54

LEVER-ASSY-THROTTLE,THROTTLE

39074-3704

$45.84

55

WASHER,THROTTLE LEVER

92022-3722

Unavailable

56

NUT,THROTTLE LEVER

92015-3717

$6.41

57

WASHER

92022-3758

$4.58

58

NEEDLE-JET,HIGH SPEED

16009-3709

Unavailable

59

NEEDLE-JET

16009-3710

Unavailable

60

CAP,JET NEEDLE

11012-3739

Unavailable
