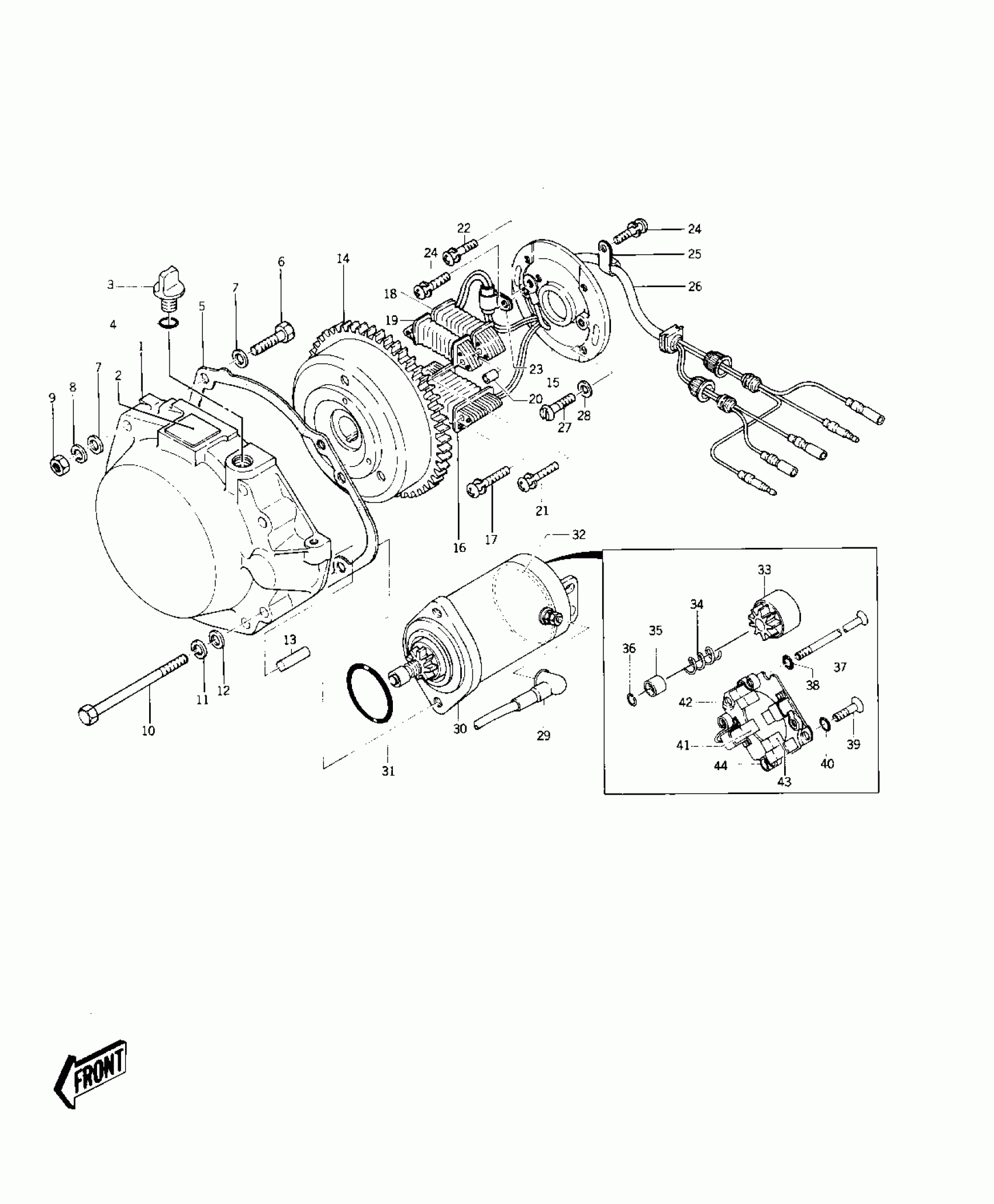

Kawasaki JS400 GENERATOR/STARTER MOTOR Diagram
#
1
COVER,MAGNETO
59036-560-9G
$61.11
2
LABEL,HORSE POWER
56019-535
$1.28
3
PLUG,MAGNETO COVER
92066-505
$2.42
4
RING-O
92055-515
$2.70
5
GASKET,MAGNETO COVER
92065-516
$17.36
6
BOLT 8X50
110R0850
$7.10
7
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
8
WASHER SPRING 8MM
461S0800
$0.65
9
NUT 8MM
311R0800
$0.70
10
BOLT,8X80
92001-3011
Unavailable
11
WASHER SPRING 8MM
461S0800
$0.65
12
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
13
PIN-DOWEL
551R0612
$4.69
14-0
MAGNETO ASS'Y
21002-522
$261.77
14
.FLYWHEEL ASS'Y
21050-513
$591.92
15
.BASE ASS'Y
21003-521
$552.02
16
COIL,CHARGE
59031-501
Unavailable
17
SCREW,5X34
92011-530
Unavailable
18
COIL,EXCITING
21049-506
Unavailable
19
COIL,PULSING
59026-504
$126.54
20
COLLAR,COIL
92027-509
$4.28
21
SCREW 5X40
92011-533
$3.02
22
SCREW 4X6
92011-559
$0.28
23
CLAMP
92037-520
Unavailable
24
SCREW,4X8
92011-560
Unavailable
25
..CLAMP-STATOR WIRE
92037-518
$0.92
26
..WIRE ASSY
26001-514
$36.87
27
SCREW 5X20
232B0520A
$0.17
28
WASHER
92022-544
$2.67
29
CAP,STARTER
59176-506
$6.57
30
STARTER-ELECTRIC
21163-3710
Unavailable
31
O RING,65MM
671B2565
$8.86
32
RING-O
92055-517
Unavailable
33
.PINION ASS'Y
59051-504
$265.18
34
SPRING,RETURN
92081-541
Unavailable
35
COLLAR,STOPPER,PINION
92027-513
Unavailable
36
RING-SNAP
92036-517
Unavailable
37
SCREW,6X107
92011-549
Unavailable
38
O RING,5MM
670B1505
$3.26
39
SCREW,4X8
92011-550
$6.30
40
'O'RING(1)
92055-519
$4.11
41
BRUSH,(+)
21039-3003
Unavailable
42
HOLDER-ASSY,BRUSH
14079-3002
$224.34
43
BRUSH,(-)
21039-3004
Unavailable
44
SPRING,BRUSH
92081-540
$12.75
