Description

Price

1

TANK-FUEL

51004-3702

Unavailable

2

BAND,FUEL TANK

92072-521

Unavailable

3

CAP-TANK

51049-3001

$10.80

4

GASKET

92065-504

$15.31

5

UNAVAILABLE IN PRICE BOOK

92014-562

Unavailable

6

WASHER

92022-563

$1.13

7

FILLER,FUEL TANK

59231-3001

$17.77

8

CLAMP

92037-506

$5.22

9

HOSE,FUEL INLET

92059-525

Unavailable

10

OUTLET,FUEL

59151-514

$16.49

11

GASKET

92065-504

$15.31

12

RETAINER

23072-501

Unavailable

13

TUBE,FUEL,6X10X940

92059-3025

Unavailable

14

CLAMP

92037-1173

$3.49

15

TUBE

92059-544

Unavailable

16

FILTER,FUEL

59236-507

$82.47

17

HOLDER

16065-514

$3.69

18

SCREW 6X22

214R0622

$1.01

19

WASHER-SPRING,6MM

461S0600

$1.07

20

NUT-HEX,6MM

311R0600

$0.70

21

WASHER

92095-508

$2.67

22

WASHER-PLAIN,6MM

411S0600

$2.06

23

UNAVAILABLE IN PRICE BOOK

16087-304

Unavailable

24

PIPE,FUEL (1)

92059-527

Unavailable

25

BAND,L=123

92072-030

$5.00

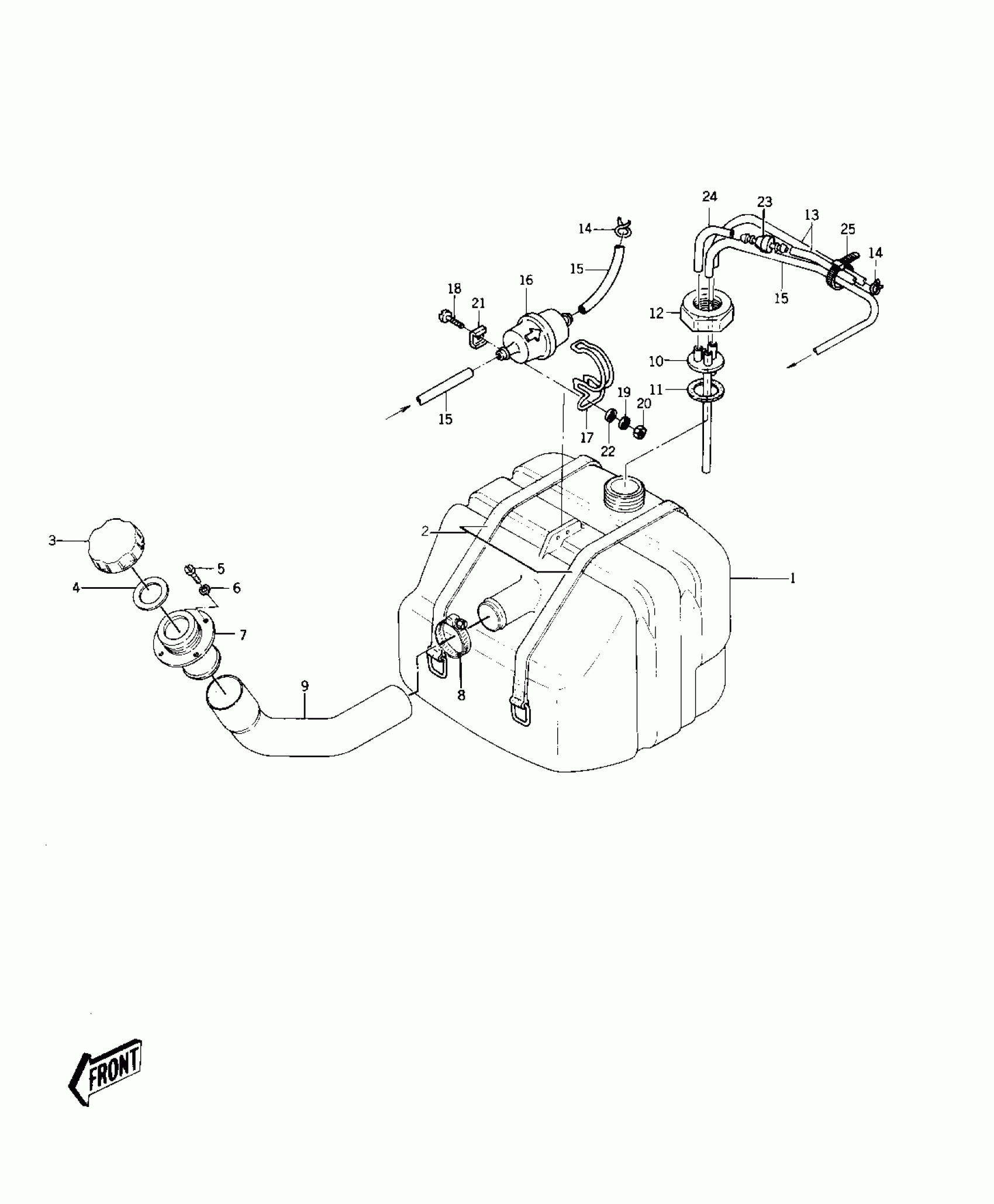

Kawasaki JS400 FUEL TANK Diagram

TANK-FUEL

BAND,FUEL TANK

CAP-TANK

GASKET

UNAVAILABLE IN PRICE BOOK

WASHER

FILLER,FUEL TANK

CLAMP

HOSE,FUEL INLET

OUTLET,FUEL

GASKET

RETAINER

TUBE,FUEL,6X10X940

CLAMP

TUBE

FILTER,FUEL

HOLDER

SCREW 6X22

WASHER-SPRING,6MM

NUT-HEX,6MM

WASHER

WASHER-PLAIN,6MM

UNAVAILABLE IN PRICE BOOK

PIPE,FUEL (1)

BAND,L=123
