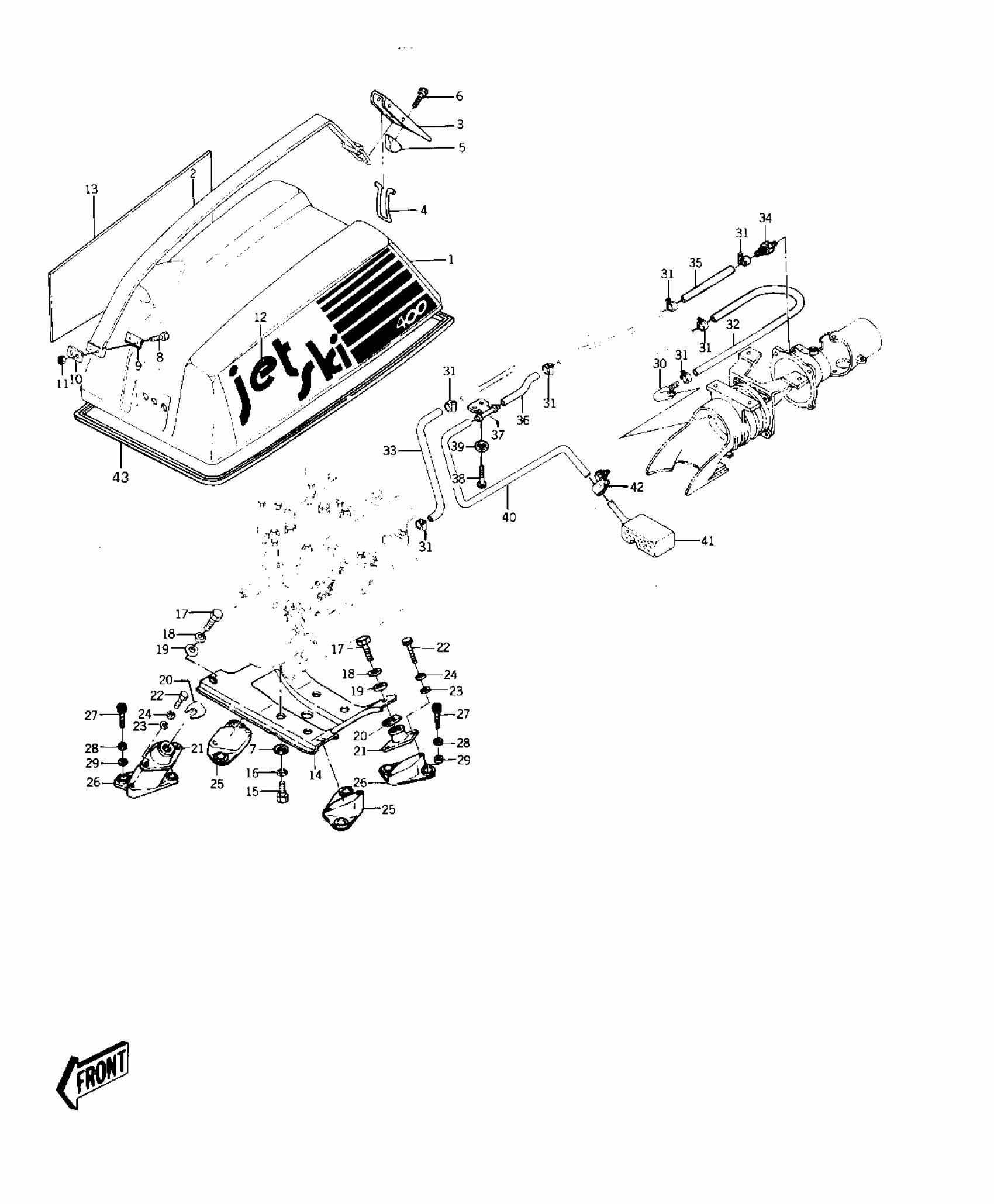

Kawasaki JS400 ENGINE HOOD/COOLING & BILGE Diagram
#
1
ENGINE COVER
59246-3001-8A
$261.39
2
BAND,HOOD
92072-3746
Unavailable
3
LEVER
59126-506
$9.37
4
HINGE
53009-503
$14.87
5
DETENT
59346-503
Unavailable
6
SCREW
92011-562
$1.65
7
WASHER-PLAIN,14MM
411S1400
$5.10
8
BOLT,6X30
92001-3022
Unavailable
9
WASHER,BAND
92022-509
$4.73
10
BRACKET,PLATE
59086-501
$18.58
11
NUT-HEX,6MM
311R0600
$0.70
12
LABEL-ENG COVER-LH
56027-512
Unavailable
13
LABEL-ENG COVER-RH
56027-513
Unavailable
14
MOUNT-ENGINE
59181-509-9G
$129.88
15
BOLT,1/2"X31
92003-533
Unavailable
16
WASHER-SPRING,14MM
461S1400
$2.98
17
BOLT,10X25
110R1025
$7.02
18
WASHER-SPRING,10MM
461S1000
$1.03
19
WASHER,32X10.5X4
92022-3023
$8.84
20
SHIM-1.0T
92025-529
Unavailable
20
SHIM 0.3T
92025-510
Unavailable
20
SHIM 0.5T
92025-511
Unavailable
20
SHIM 1.0T
92025-512
Unavailable
21
DAMPER,ENGINE MOUNT
92160-3756
Unavailable
22
BOLT,8X20
110R0820
$4.67
23
WASHER-PLAIN,8MM
411S0800
$3.09
24
WASHER SPRING 8MM
461S0800
$0.65
25
BRACKET,ENGINE MOUNT
59016-532
Unavailable
26
BRACKET,ENGINE MOUNT
59016-533
Unavailable
27
BOLT,8X22
92003-528
$7.24
28
WASHER SPRING 8MM
461S0800
$0.65
29
WASHER-PLAIN,8MM
411S0800
$3.09
30
ELBOW
52014-503
$13.71
31
CLAMP
92037-504
$13.67
32
TUBE,9X360
92059-503
Unavailable
33
HOSE,WATER (3)
92059-534
$9.21
34
FITTING,HOSE
92005-3001
$10.88
35
HOSE,BILGE (3)
92059-536
$3.05
36
TUBE,9X280
92059-535
Unavailable
37
BREATHER-BILGE LINE
43056-501
$18.97
38
SCREW
92011-562
$1.65
39
WASHER
92022-563
$1.13
40
HOSE,BILGE (1)
92059-506
$5.79
41
FILTER,BILGE
59236-504
Unavailable
42
CLAMP
92037-537
$8.95
43
GROMMET
92071-532
Unavailable
