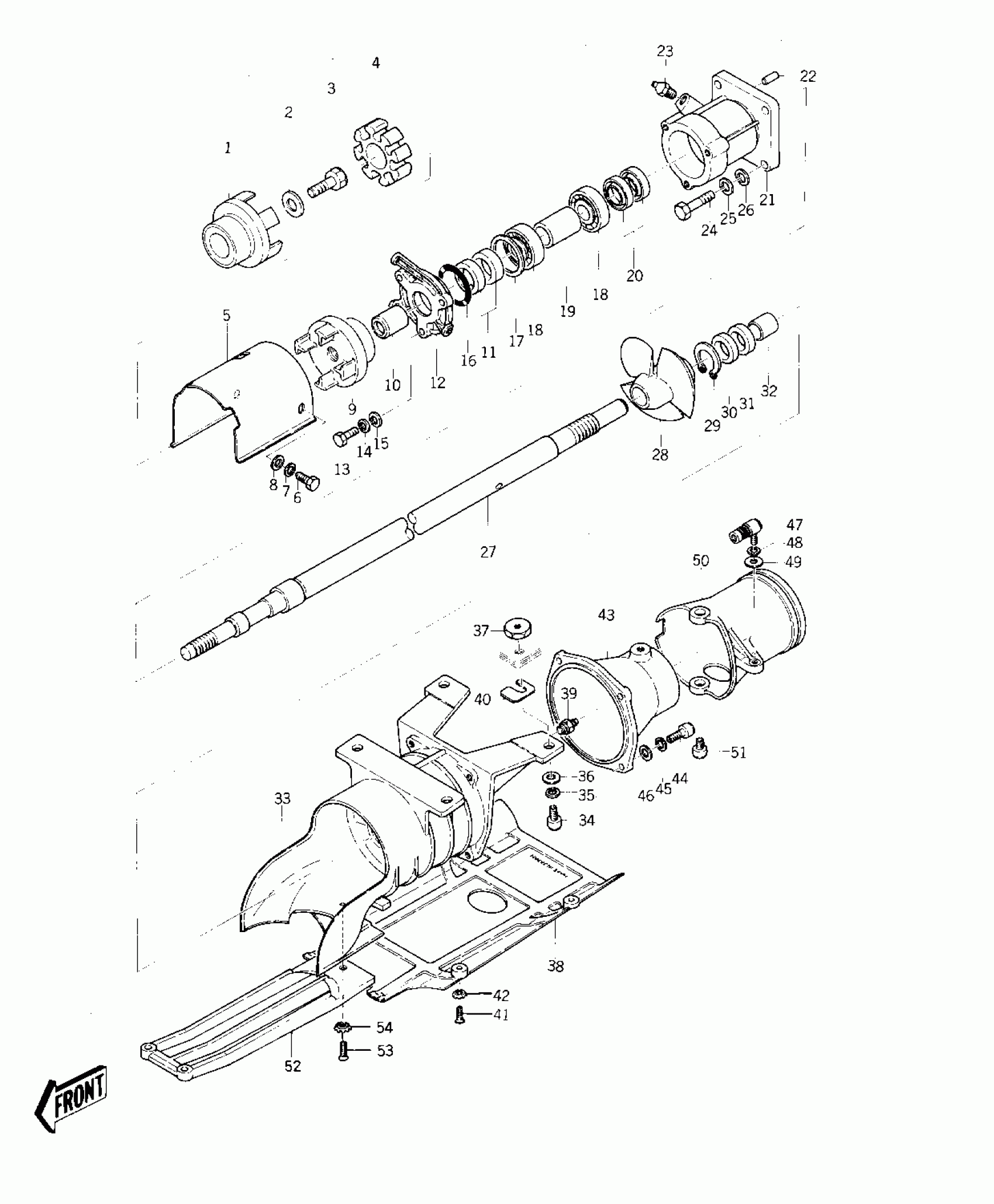

Kawasaki JS400 DRIVE SHAFT/JET PUMP Diagram
#
1
COUPLING ASSY,DRIVER
42053-3004
$263.06
2
WASHER
92022-514
$6.05
3
BOLT,1/2 INCHX27
92003-537
Unavailable
4
RUBBER,COUPLING
92075-501
$105.93
5
COVER,COUPLING
59036-567
Unavailable
6
BOLT 6X12
110R0612
$1.75
7
WASHER-SPRING,6MM
461S0600
$1.07
8
WASHER-PLAIN,6MM
411S0600
$2.06
9
COUPLING,DRIVEN
42034-501
$77.87
10
SLEEVE,BEARING
42036-501
Unavailable
11
SEAL-OIL,AC1799EX
92050-501
Unavailable
12
COVER,BEARING
14025-3008
Unavailable
13
BOLT,8X25
110R0825
$2.43
14
WASHER SPRING 8MM
461S0800
$0.65
15
WASHER-PLAIN,8MM
411S0800
$3.09
16
RING-O
92055-501
Unavailable
17
SHIM,T=0.15
92025-502
Unavailable
17
SHIM,T=0.3
92025-503
Unavailable
18
BEARING-BALL,#6305C3
601B6305
$25.78
19
COLLAR
92027-502
$15.69
20
SEAL-OIL,AC1799EX
92050-501
Unavailable
21
HOUSING-BEARING
41046-502
$169.04
22
PIN-DOWEL
551R0612
$4.69
23
FITTING,GREASE
92005-501
Unavailable
24
BOLT,8X25
110R0825
$2.43
25
WASHER SPRING 8MM
461S0800
$0.65
26
WASHER-PLAIN,8MM
411S0800
$3.09
27
SHAFT,DRIVE
59111-515
$596.58
28
IMPELLER
59256-504
Unavailable
29
RING-SNAP
92036-502
Unavailable
30
SEAL-OIL,SC20367
92050-503
$24.91
31
SEAL-OIL,SCY20368
92050-502
$27.73
32
BUSHING
92028-503
Unavailable
33
CASE-PUMP
59336-3701
Unavailable
34
BOLT-SOCKET
120R1025
$9.17
35
WASHER-SPRING,10MM
461S1000
$1.03
36
WASHER-PLAIN,10MM
411S1000
$2.67
37
NUT 10M/M
92015-527
$11.56
38
COVER,PUMP
59036-558
$90.62
39
FITTING,GREASE
92005-501
Unavailable
40
SHIM 0.15T
92025-504
Unavailable
40
SHIM 0.3T
92025-505
Unavailable
40
SHIM 0.5T
92025-506
Unavailable
40
SHIM 1.0T
92025-507
Unavailable
41
SCREW 6X16
92011-563
$7.06
42
WASHER
92095-512
Unavailable
43
NOZZLE-PUMP
59136-3001
$111.30
44
BOLT,8X22
92003-528
$7.24
45
WASHER SPRING 8MM
461S0800
$0.65
46
WASHER
92022-562
$2.41
47
JOINT-BALL
59266-3707
$66.16
48
WASHER-SPRING,6MM
461S0600
$1.07
49
WASHER
92022-567
$2.67
50
NOZZLE-STRG
59476-3702
Unavailable
51
BOLT 6X11
92003-532
$9.11
52
GRATE
59366-3001
Unavailable
53
SCREW 6X16
92011-563
$7.06
54
WASHER
92095-512
Unavailable
55
BUSH
92028-511
$5.04
