1976 Kawasaki JS400 Cylinder Head/cylinder Diagram

← All diagrams

Find the part on the Cylinder Head/cylinder diagram for your 1976 Kawasaki JS400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

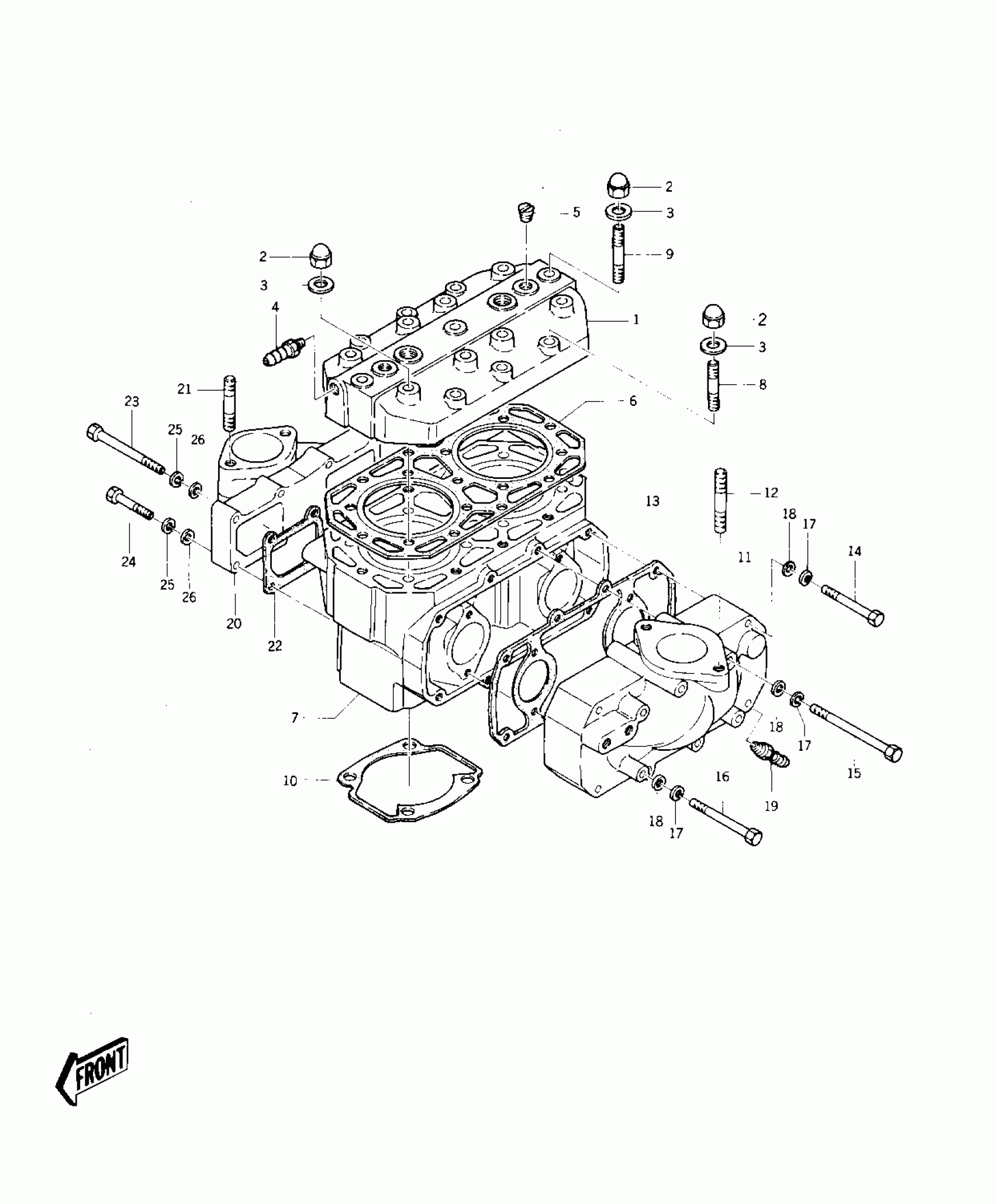

1976 Kawasaki JS400 Cylinder Head/cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD,CYLINDER

11001-558-9G

1
Out of stock

2

.NUT 8M/M

92015-503

1
Out of stock

3

WASHER

92022-504

1
Out of stock

4

FITTING,HOSE

92005-3001

1
Out of stock

5

PLUG,CYLINDER HEAD

92066-3001

1
Out of stock

6

GASKET-HEAD

11004-3711

1
Out of stock

7

CYLINDER,ASSY

11005-568-9G

1
Out of stock

8

STUD,8X42

92004-3009

1
Out of stock

9

STUD,8X50

92004-3010

1
Out of stock

10

GASKET-CYLINDER

11009-505

1
Out of stock

11

MANIFOLD-EXHAUST

59081-504-YR

1
Out of stock

12

STUD

172R0834

1
Out of stock

13

GASKET,EXHAUST MANIFOLD

11009-3779

1
Out of stock

14

BOLT 6X55

110R0655

1
Out of stock

15

BOLT 6X90

110R0690

1
Out of stock

16

BOLT 6X75

110R0675

1
Out of stock

17

WASHER-SPRING,6MM

461S0600

1
Out of stock

18

WASHER-PLAIN-SMALL,6MM

410S0600

1
Out of stock

19

FITTING,HOSE

92005-3001

1
Out of stock

20

MANIFOLD-INTAKE

59076-505-YR

1
Out of stock

21

STUD

172R0834

1
Out of stock

22

GASKET,INTAKE

11009-3785

1
Out of stock

23

BOLT,6X70

110R0670

1
Out of stock

24

BOLT 6X35

110R0635

1
Out of stock

25

WASHER-SPRING,6MM

461S0600

1
Out of stock

26

WASHER-PLAIN-SMALL,6MM

410S0600

1
Out of stock
