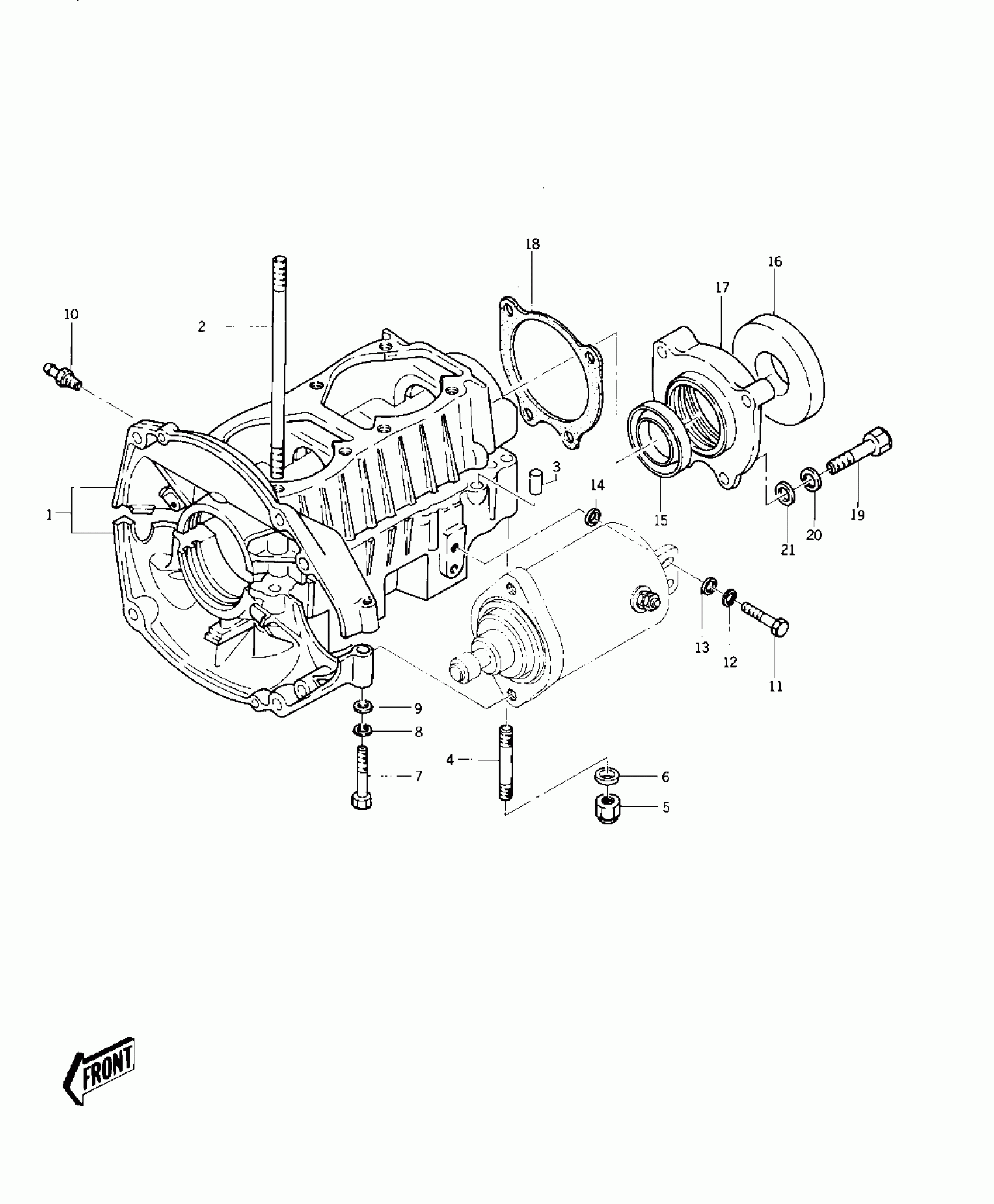

Kawasaki JS400 CRANKCASE Diagram

#

Description
Price

1

CRANK CASE ASS'Y

14001-519-9G

Unavailable

2

STUD,8X167

92004-507

$10.93

3

PIN,DOWEL,6.3X8X14

92042-007

$4.31

4

STUD

92004-514

$3.49

5

.NUT 8M/M

92015-503

$3.22

6

WASHER-PLAIN-SMALL,8MM

410S0800

$1.62

7

BOLT 6X40

110R0640

Unavailable

8

WASHER-SPRING,6MM

461S0600

$0.84

9

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

10

JOINT,PULS

59071-506

$7.39

11

BOLT,6X20

110R0620

$4.68

12

WASHER-SPRING,6MM

461S0600

$0.84

13

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

14

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

15

SEAL,OIL DC305513

92050-512

Unavailable

16

SEAL,OIL SCY547410

92050-508

Unavailable

17

HOUSING,OIL SEAL

23072-513-9G

$103.29

18

GASKET,HOUSING

92065-515

Unavailable

19

BOLT,8X38

92001-3017

$9.85

20

WASHER SPRING 8MM

461S0800

$0.57

21

WASHER-PLAIN-SMALL,8MM

410S0800

$1.62
