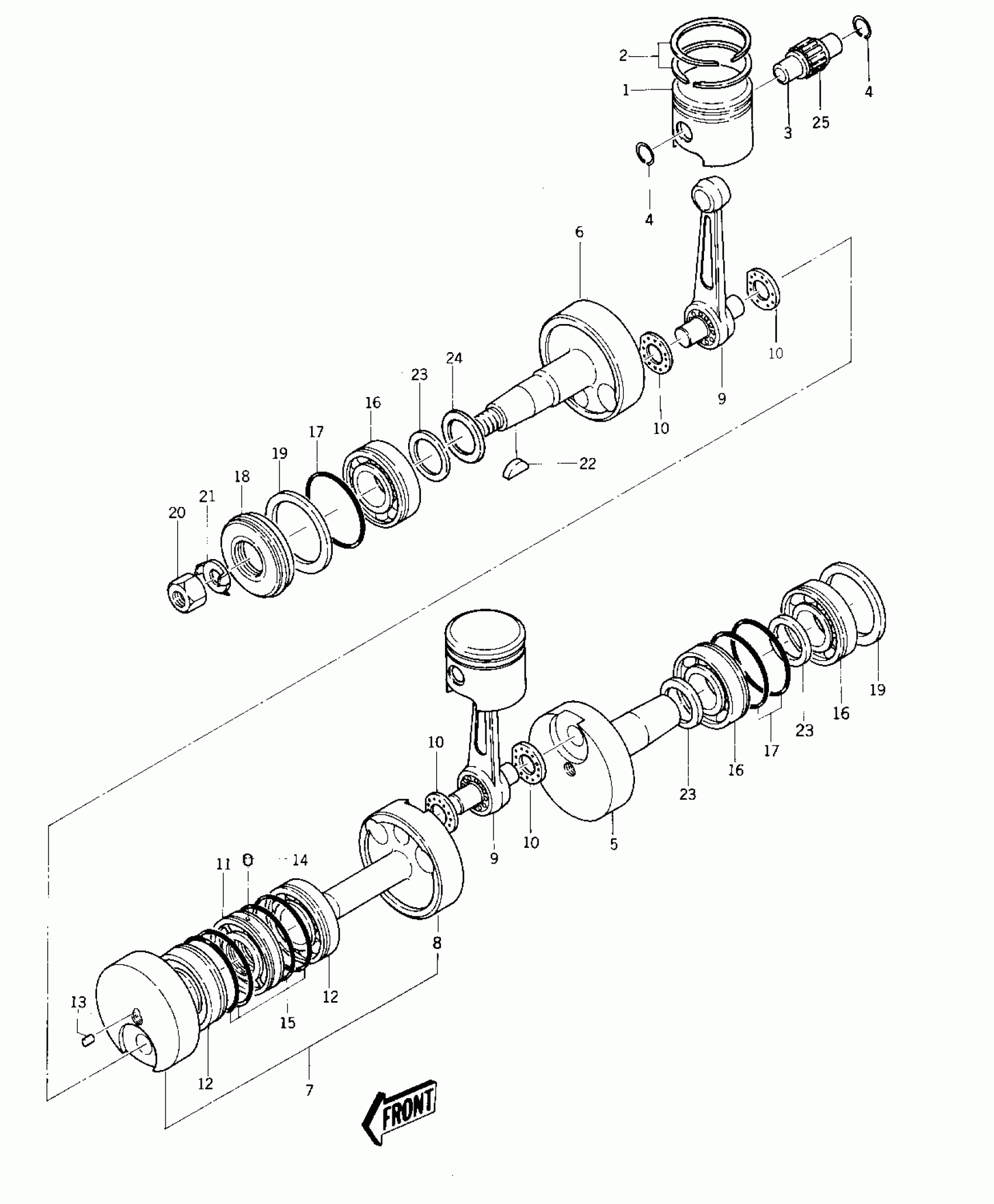

Kawasaki JS400 CRANKSHAFT/PISTONS Diagram
#
Description
Price
1
PISTON
13001-506
Unavailable
1
PISTON 0.25
13030-501
Unavailable
1
PISTON 0.50
13029-501
Unavailable
2
PISTON RING SET
13008-518
Unavailable
2
PISTON RING SET 0.25
13026-501
Unavailable
2
PISTON RING SET 0.50
13025-501
Unavailable
3
PIN-PISTON
13002-505
Unavailable
4
CIRCLIP PISTON PIN
92036-004
$0.65
5-0
CRANK SHAFT ASS'Y
13036-522
Unavailable
5
.CRANKSHAFT(1)
13037-501
Unavailable
6
.CRANKSHAFT (3)
13037-504
Unavailable
7
.CRANK WEB SET
13044-502
Unavailable
8
.CRANKSHAFT(2)
13037-502
Unavailable
9
.CON ROD SET
13044-501
Unavailable
10
.WASHER
92022-517
$2.69
11
.SEAL,LABYRINTH
59096-502
$30.04
12
.BEARING 6305NC3
92045-512
$34.01
13
ROLLER,5X12
610A0512
$4.78
14
PIN-DOWEL,4X10
551A0410
$0.65
15
RING-O
92055-504
Unavailable
16
BEARING-BALL,6206NC3
92045-505
Unavailable
17
RING-O
92055-504
Unavailable
18
SEAL-OIL,TCY306210
92050-507
Unavailable
19
WASHER,CRANK,RH
92022-3021
$5.68
20
NUT 18M/M
315B1800A
Unavailable
21
WASHER
92095-506
$5.13
22
WOODRUFF KEY
510A5200
$2.82
23
SHIM,T=0.1
92025-513
Unavailable
23
SHIM,T=0.2
92025-518
Unavailable
23
SHIM,T=0.3
92025-523
Unavailable
23
SHIM,T=0.4
92025-527
Unavailable
23
SHIM,T=0.5
92025-530
Unavailable
23
SHIM,T=0.6
92025-533
Unavailable
24
SHIM,T=1.0MM
92025-532
$2.47
25
BEARING-NEEDLE,KBK16X20X22.8X6
13033-3005
$21.61
