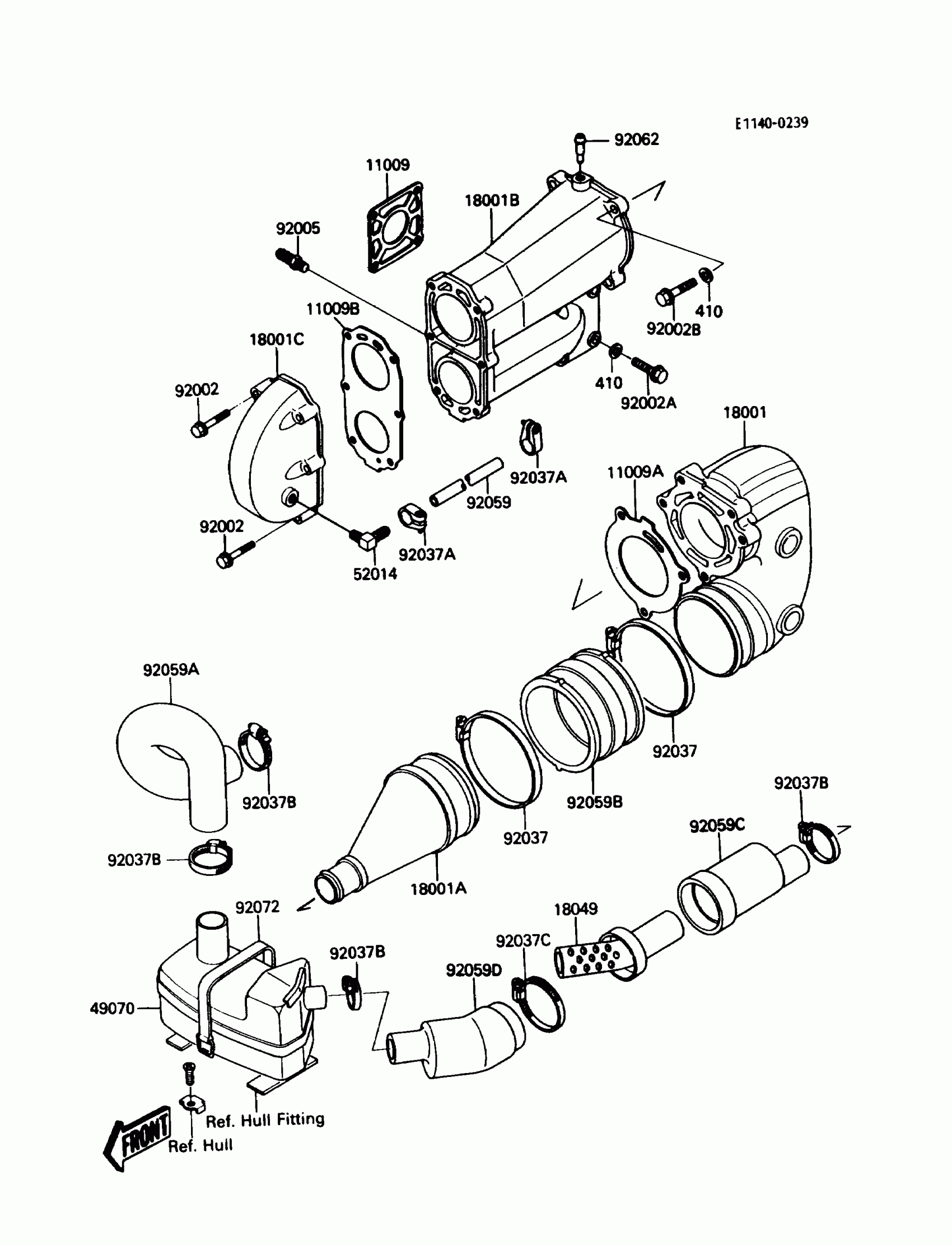

Kawasaki JS300 Muffler(s) Diagram
#
Description
Price
11009
GASKET,MUFFLER MANIFOLD
11009-3709
Unavailable
11009A
GASKET,MUFFLER
11009-3713
Unavailable
11009B
GASKET,MUFFLER
11009-3744
Unavailable
18001
MUFFLER,TUNED
18001-3709
$457.48
18001A
MUFFLER,BODY
18001-3710
$299.41
18001B
MUFFLER,MANIFOLD
18001-3711
$236.96
18001C
MUFFLER,TUNED
18001-3717
$115.66
18049
PIPE-EXHAUST
59151-528
$116.78
49070
MUFFLER-COMP,WATER BOX
49070-3702
$94.07
52014
ELBOW
52014-3002
$34.82
92002
BOLT,6X45
92002-3717
$6.05
92002A
BOLT,8X70
92002-3719
$12.14
92002B
BOLT,8X35
92002-3740
$5.03
92005
FITTING,HOSE
92005-3001
$10.88
92037
CLAMP,MAX120.7MM
92037-3733
$13.94
92037A
CLAMP
92037-504
$13.67
92037B
CLAMP
92037-509
$5.58
92037C
CLAMP
92037-541
$10.24
92059
TUBE,9X16X460
92059-3718
$8.06
92059A
TUBE,EXHAUST
92059-3722
Unavailable
92059B
TUBE,MUFFLER CONNECTING
92059-3768
$52.95
92059C
TUBE
92059-542
$130.82
92059D
TUBE
92059-543
Unavailable
92062
NOZZLE
92062-3705
$8.44
92072
BAND
92072-511
Unavailable
410
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
