Description

Price

11009

GASKET,MUFFLER MANIFOLD

11009-3750

Unavailable

11009A

GASKET,MUFFLER

11009-3713

Unavailable

11009B

GASKET,MUFFLER

11009-3744

Unavailable

18001

MUFFLER,TUNED

18001-3709

$457.48

18001A

MUFFLER,BODY

18001-3710

$299.41

18001B

MUFFLER,MANIFOLD

18001-3724

$236.96

18001C

MUFFLER,TUNED

18001-3717

$115.66

18049

PIPE-EXHAUST

59151-528

$116.78

49070

MUFFLER-COMP,WATER BOX

49070-3713

$94.07

52014

ELBOW

52014-3002

$34.82

92002

BOLT,6X45

92002-3717

$6.05

92002A

BOLT,8X70

92150-3725

$12.14

92002B

BOLT,8X35

92002-3740

$5.03

92005

FITTING,HOSE

92005-3001

$10.88

92037

CLAMP,MAX120.7MM

92037-3733

$13.94

92037A

CLAMP

92037-504

$13.67

92037B

CLAMP

92037-509

$5.58

92037C

CLAMP

92037-541

$10.24

92059

TUBE,9X16X460

92059-3718

$8.06

92059A

TUBE,EXHAUST

92059-3722

Unavailable

92059B

TUBE,MUFFLER CONNECTING

92059-3768

$52.95

92059C

TUBE

92059-542

$130.82

92059D

TUBE

92059-543

Unavailable

92062

NOZZLE

92062-3705

$8.44

92072

BAND

92072-511

Unavailable

410

WASHER-PLAIN-SMALL,8MM

410S0800

$2.58

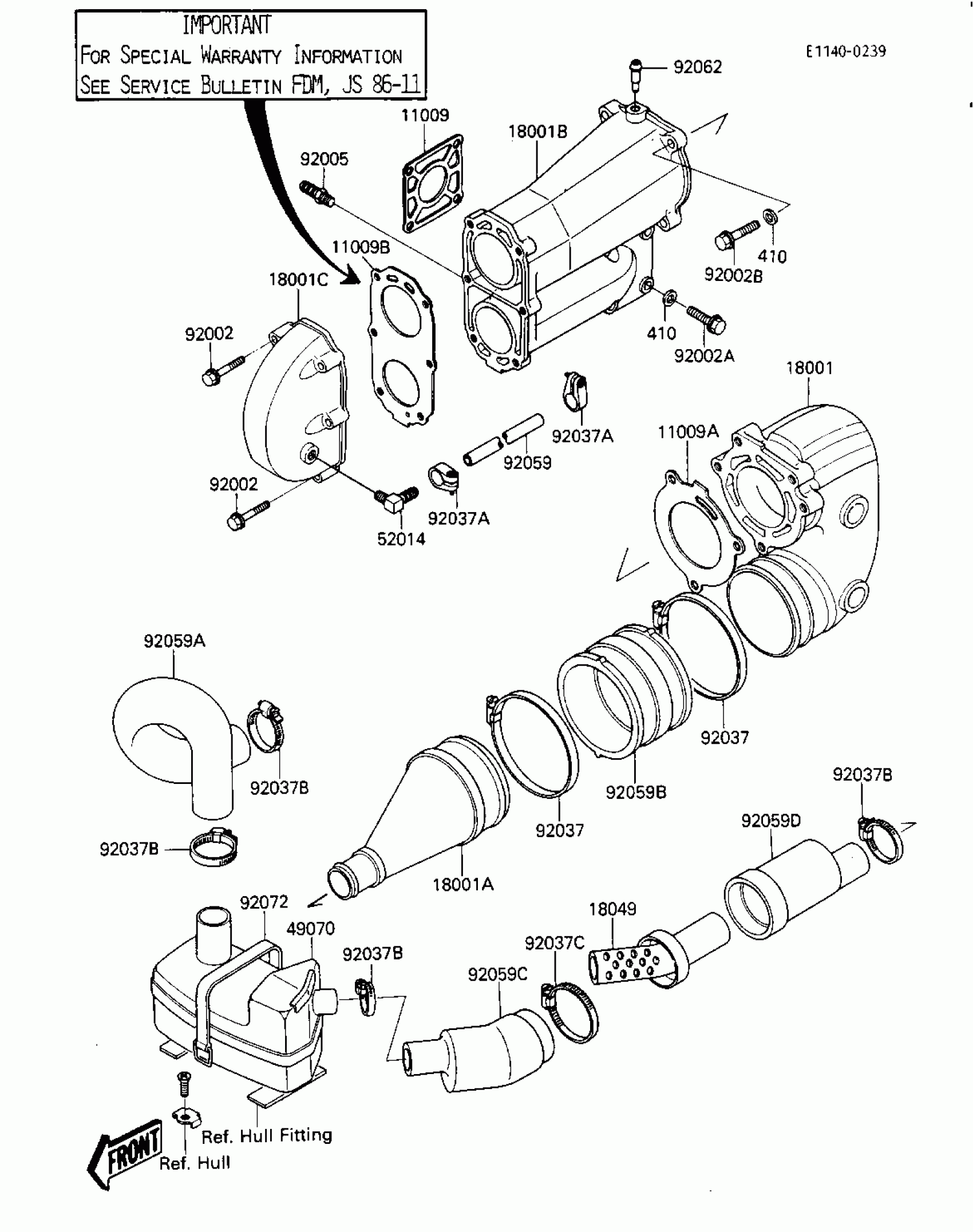

Kawasaki JS300 MUFFLER Diagram

GASKET,MUFFLER MANIFOLD

GASKET,MUFFLER

GASKET,MUFFLER

MUFFLER,TUNED

MUFFLER,BODY

MUFFLER,MANIFOLD

MUFFLER,TUNED

PIPE-EXHAUST

MUFFLER-COMP,WATER BOX

ELBOW

BOLT,6X45

BOLT,8X70

BOLT,8X35

FITTING,HOSE

CLAMP,MAX120.7MM

CLAMP

CLAMP

CLAMP

TUBE,9X16X460

TUBE,EXHAUST

TUBE,MUFFLER CONNECTING

TUBE

TUBE

NOZZLE

BAND

WASHER-PLAIN-SMALL,8MM
