Description

Price

11009

GASKET,ENGINE HOOD

92065-539

$74.38

11012

CAP

11012-3721

$10.51

14024

COVER,DASHBOARD

14025-3706

$7.80

27012

HOOK

27012-501

Unavailable

27012A

HOOK

27012-502

Unavailable

46075

GRIP,HULL

46075-3701

Unavailable

53004

MAT,DECK FIN,RH

53004-3701

$170.95

53004A

MAT,DASHBOARD COVER

53004-3705

$51.82

53004B

MAT,DASHBOARD,RH

53004-3709

$41.75

53004C

MAT,DASHBOARD,LH

53004-3710

$41.75

53004D

MAT,DECK FIN,LH

53004-3714

$188.77

53004E

MAT

59131-502

Unavailable

59201

BUMPER

59201-3691

$14.97

59251

HULL,RH,EXTENSION,JET WHITE

59251-3005-8C

$20.65

59251A

HULL,LH,EXTENSION,JET WHITE

59251-3006-8C

Unavailable

59426

HULL-COMP,JET WHITE

59426-5513-8C

$1,084.84

59446

COVER-JET PUMP

59446-3002

$164.32

92009

SCREW,TAPPING

92011-561

Unavailable

92015

NUT,20MM

92015-3721

Unavailable

92015A

NUT,INSERT,6MM

92015-523

Unavailable

92028

BUSHING,L=18

92028-3724

Unavailable

92039

RIVET,4MM

92039-3703

$4.69

92049

SEAL-OIL

92049-3709

Unavailable

92075

DAMPER,69X16T

92075-3710

$7.65

156

BOLT-WP,6X25

156R0625

$4.76

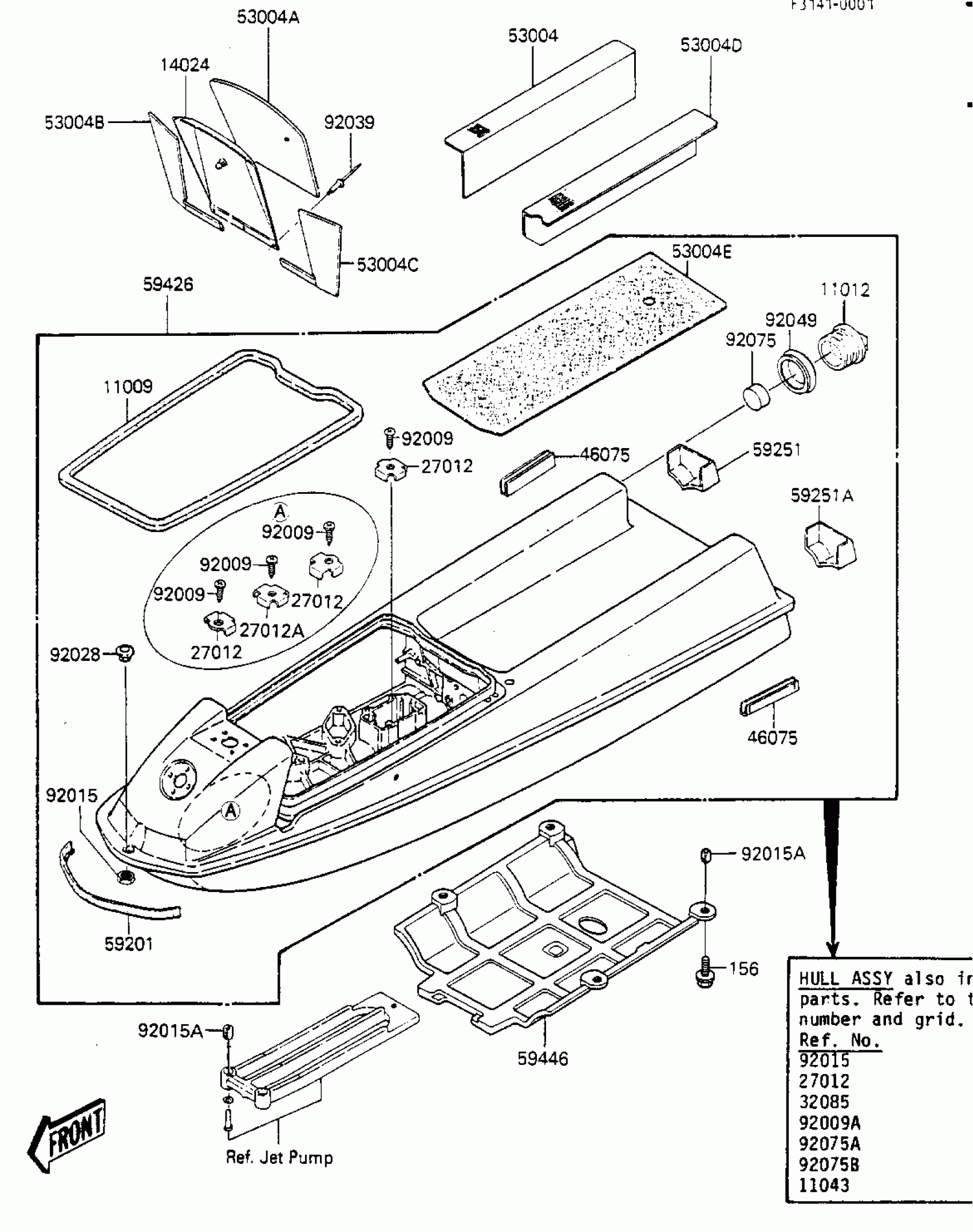

Kawasaki JS300 HULL Diagram

GASKET,ENGINE HOOD

CAP

COVER,DASHBOARD

HOOK

HOOK

GRIP,HULL

MAT,DECK FIN,RH

MAT,DASHBOARD COVER

MAT,DASHBOARD,RH

MAT,DASHBOARD,LH

MAT,DECK FIN,LH

MAT

BUMPER

HULL,RH,EXTENSION,JET WHITE

HULL,LH,EXTENSION,JET WHITE

HULL-COMP,JET WHITE

COVER-JET PUMP

SCREW,TAPPING

NUT,20MM

NUT,INSERT,6MM

BUSHING,L=18

RIVET,4MM

SEAL-OIL

DAMPER,69X16T

BOLT-WP,6X25
