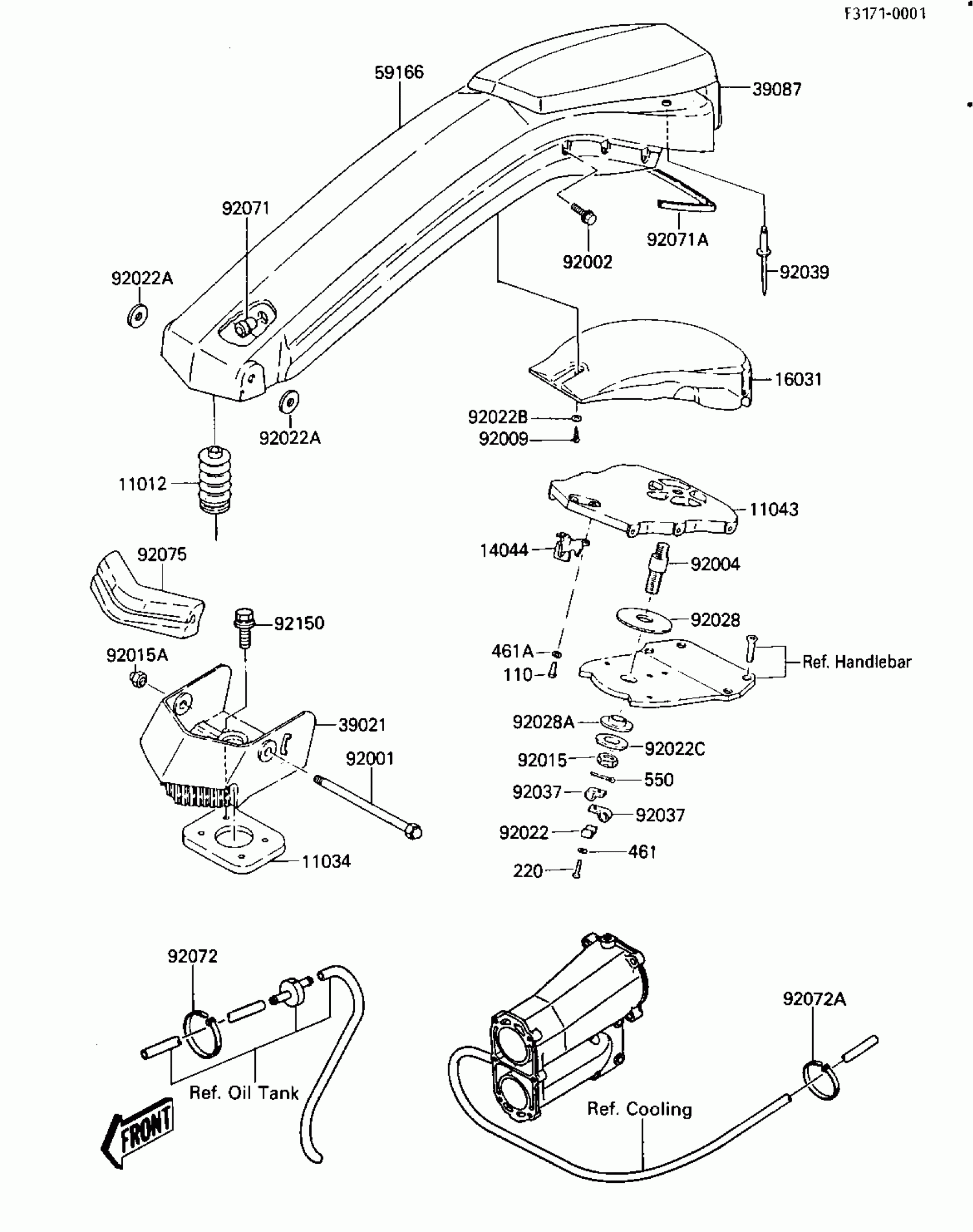

Kawasaki JS300 HANDLE POLE Diagram
#
Description
Price
11012
CAP.
59176-514
Unavailable
11034
BRACKET,PLATE,HANDLE
59086-538
$34.31
11043
BRACKET,SUPPORT
11046-3847
Unavailable
14044
HOLDER-CABLE
14044-3001
Unavailable
16031
FLOAT
16031-506
Unavailable
39021
BRACKET,HANDLE POLE
39021-3701
Unavailable
39087
PAD-HANDLE,POLE
39087-3701
Unavailable
59166
POLE-HANDLE,JET WHITE
59166-3002-8C
Unavailable
92001
BOLT,14X183
92001-3018
Unavailable
92002
BOLT,6X16
92002-3728
$4.69
92004
STUD
92004-3701
$38.19
92009
SCREW,5X16
92009-3736
$5.20
92009A
SCREW
92011-562
$1.65
92015
NUT,CASTLE,18MM
92015-3006
$37.87
92015A
NUT,14MM
92015-507
Unavailable
92022
WASHER,CLAMP
92022-3014
$4.76
92022A
WASHER,15X36X4.5
92022-3024
Unavailable
92022B
WASHER
92022-563
$1.13
92022C
WASHER
92022-571
$36.16
92028
BUSHING
92028-512
Unavailable
92028A
BUSHING
92028-513
Unavailable
92037
CLAMP,LEAD WIRE
92037-3007
$7.31
92039
RIVET
92039-3712
$4.83
92071
GROMMET
92071-530
$6.55
92071A
GROMMET
92071-534
Unavailable
92072
BAND,L=123
92072-030
$5.00
92072A
BAND,L=149
92072-031
$5.00
92075
DAMPER
92075-519
Unavailable
92150
BOLT,6X12
92150-3709
Unavailable
92150A
BOLT,8X30
92150-3721
$6.88
550
PIN-COTTER,4X40
550S4040
$6.35
