Description

Price

11009

GASKET,TANK CAP

11009-3020

$13.51

11009A

GASKET

92065-504

$15.31

11034

BRACKET,FUEL FILTER

11047-3743

Unavailable

11043

BRACKET

11034-3701

Unavailable

14020

RETAINER

23072-501

Unavailable

31064

PIPE-COMP,FUEL

31064-3703

$61.35

49019

FILTER-FUEL

49019-3704

Unavailable

49057

VALVE-RELIEF

49057-3001

$64.85

51004

TANK-FUEL

51004-3702

Unavailable

51023

TAP-ASSY,FUEL

51023-3705

Unavailable

51036

CUP,FUEL FILTER

51036-3701

Unavailable

51049

CAP-TANK

51049-3001

$10.80

59071

JOINT

59071-3705

$4.91

59231

FILLER,FUEL TANK

59231-3001

$17.77

92009

SCREW

92011-562

$1.65

92015

NUT,RING

92015-3013

Unavailable

92022

WASHER

92022-563

$1.13

92037

CLAMP,TUBE

92037-3005

$5.04

92037A

CLAMP

92037-3009

$3.70

92037B

CLAMP

92037-1173

$3.49

92037C

CLAMP

92037-1173

$3.49

92037D

CLAMP

92037-551

$3.49

92039

RIVET

92039-3702

Unavailable

92055

RING-O,FILTER CUP

92055-3006

$3.07

92057

CHAIN,COVER,L=100

92057-3704

$19.34

92059

TUBE,6X1300

92059-552

Unavailable

92059A

TUBE,6X1300,RESERVE

92059-553

Unavailable

92059B

TUBE,6X10X960

92059-3007

Unavailable

92059C

TUBE,GUARD

92059-3008

Unavailable

92059D

TUBE,6X10X200

92059-3011

Unavailable

92059E

TUBE,6X10X760

92059-3012

$11.18

92059F

TUBE,VINYL,22X350

92059-3018

$30.46

92059G

TUBE,FUEL INLET

92059-3020

Unavailable

92059H

TUBE,FUEL,6X10X940

92059-3025

Unavailable

92059I

TUBE,5.8X12.2X55

92059-3026

Unavailable

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,FUEL TANK

92072-521

Unavailable

92077

KNOB,FUEL TAP

92077-503

Unavailable

110

BOLT,5X12

110R0512

$0.58

110A

BOLT 6X12

110R0612

$1.75

220

SCREW-PAN-CROS,4X8

220R0408

$2.15

311

NUT-HEX,6MM

311R0600

$0.70

411

WASHER-PLAIN,5MM

411S0500

$0.94

461

WASHER-SPRING,6MM

461S0600

$1.07

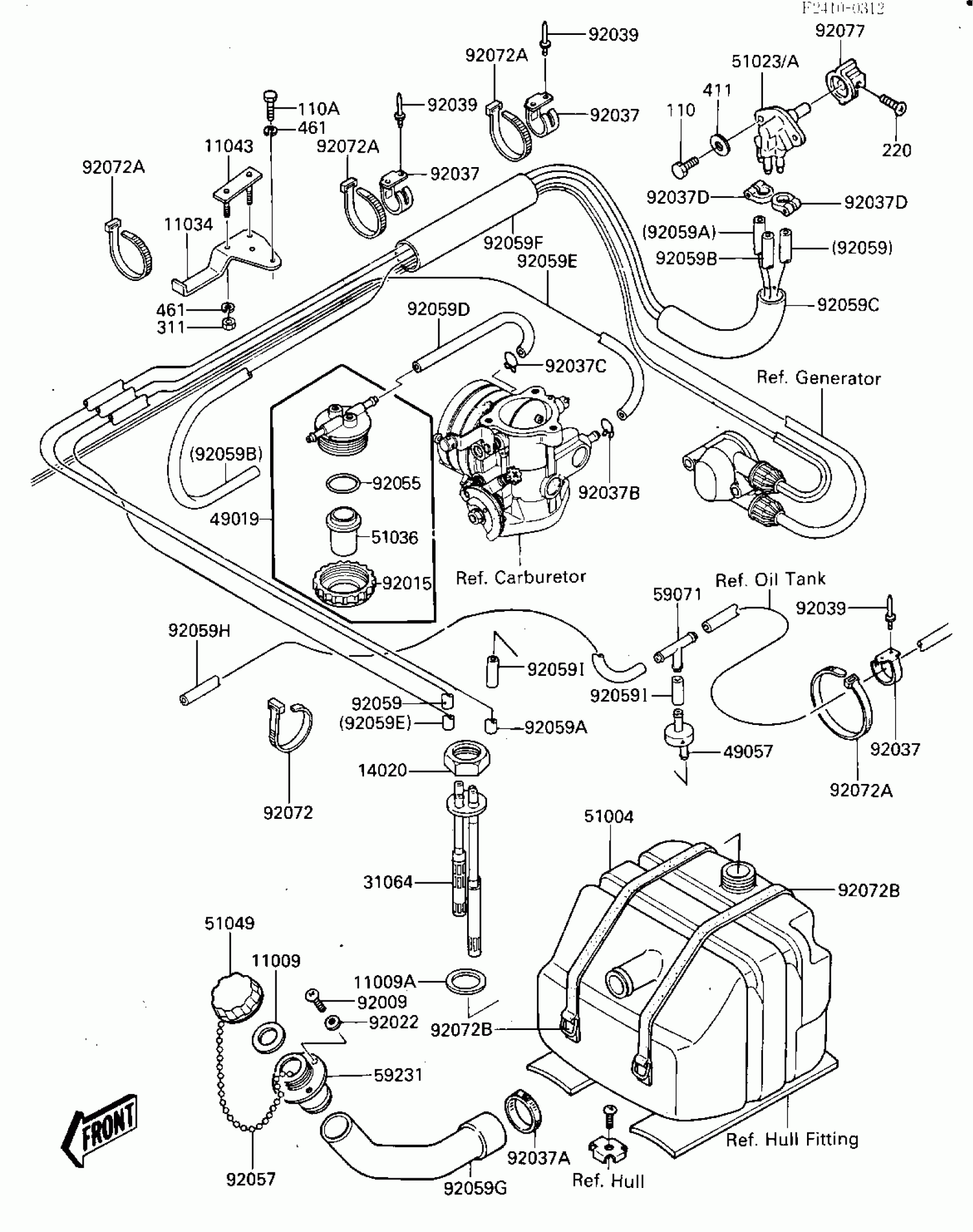

Kawasaki JS300 FUEL TANK Diagram

GASKET,TANK CAP

GASKET

BRACKET,FUEL FILTER

BRACKET

RETAINER

PIPE-COMP,FUEL

FILTER-FUEL

VALVE-RELIEF

TANK-FUEL

TAP-ASSY,FUEL

CUP,FUEL FILTER

CAP-TANK

JOINT

FILLER,FUEL TANK

SCREW

NUT,RING

WASHER

CLAMP,TUBE

CLAMP

CLAMP

CLAMP

CLAMP

RIVET

RING-O,FILTER CUP

CHAIN,COVER,L=100

TUBE,6X1300

TUBE,6X1300,RESERVE

TUBE,6X10X960

TUBE,GUARD

TUBE,6X10X200

TUBE,6X10X760

TUBE,VINYL,22X350

TUBE,FUEL INLET

TUBE,FUEL,6X10X940

TUBE,5.8X12.2X55

BAND,L=123

BAND,L=149

BAND,FUEL TANK

KNOB,FUEL TAP

BOLT,5X12

BOLT 6X12

SCREW-PAN-CROS,4X8

NUT-HEX,6MM

WASHER-PLAIN,5MM

WASHER-SPRING,6MM
