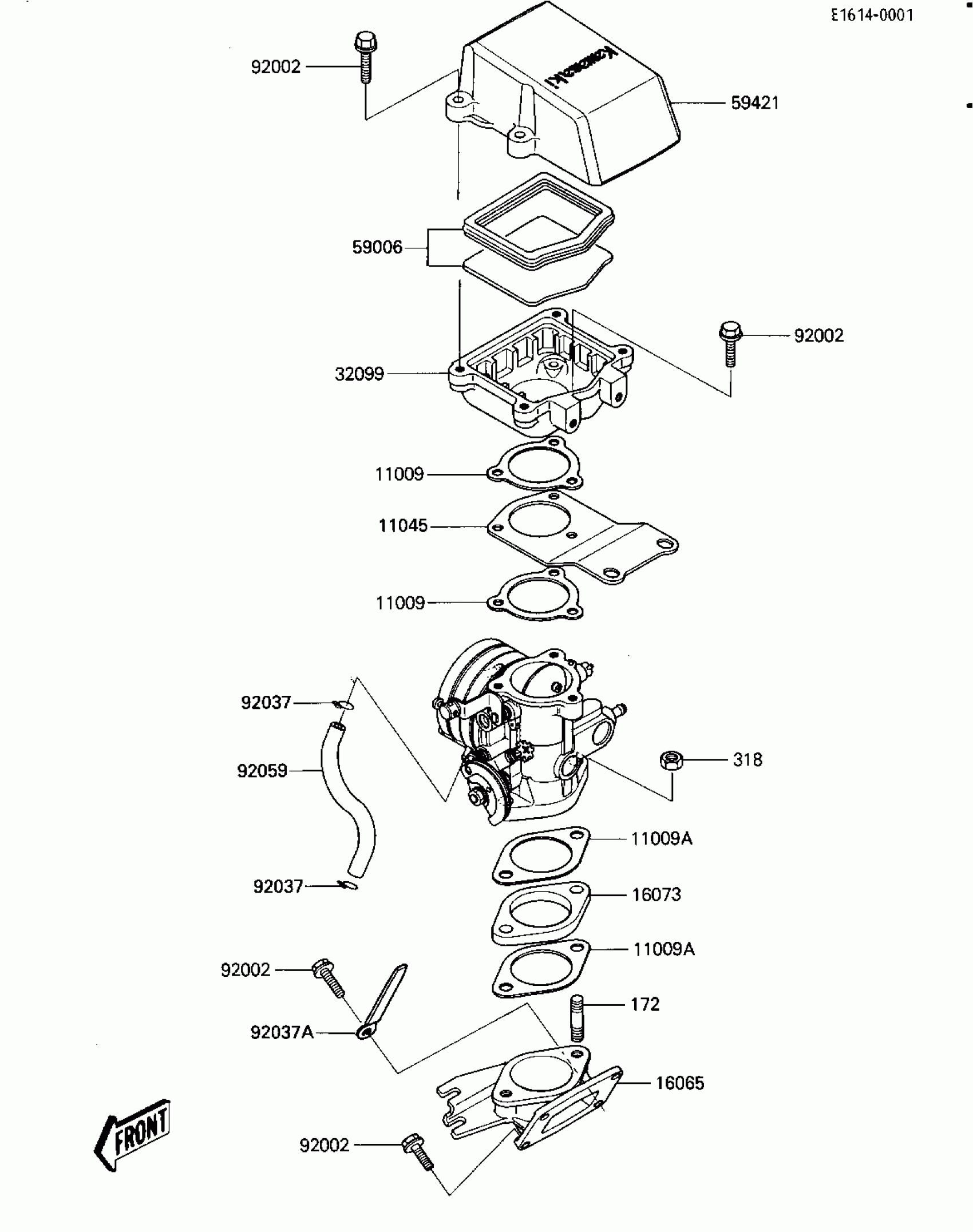

Kawasaki JS300 FLAME ARRESTER/CARBURETOR BRACKETS Diagram

Description

Price

11009

GASKET,ARRESTER CASE

11060-3702

Unavailable

11009A

GASKET,INSULATOR

11009-3786

Unavailable

11045

BRACKET,CARBURETOR

11045-3724

Unavailable

16065

HOLDER-CARBURETOR

16065-3701

$56.73

16073

INSULATOR

16073-3701

$9.31

32099

CASE,FLAME ARRESTER

32099-3702

$44.62

59006

ARRESTER-FLAME

59006-3706

$75.68

59421

COVER-INTAKE

59421-3703

$51.63

92002

BOLT,6X25

92002-3714

$5.00

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP,L=100

92037-3736

$5.52

92059

TUBE,5.8X10.8X250

92059-3757

$9.11

172

BOLT-STUD

172R0825

$7.65

318

NUT-HEX-SMALL

318R0800

$4.18
