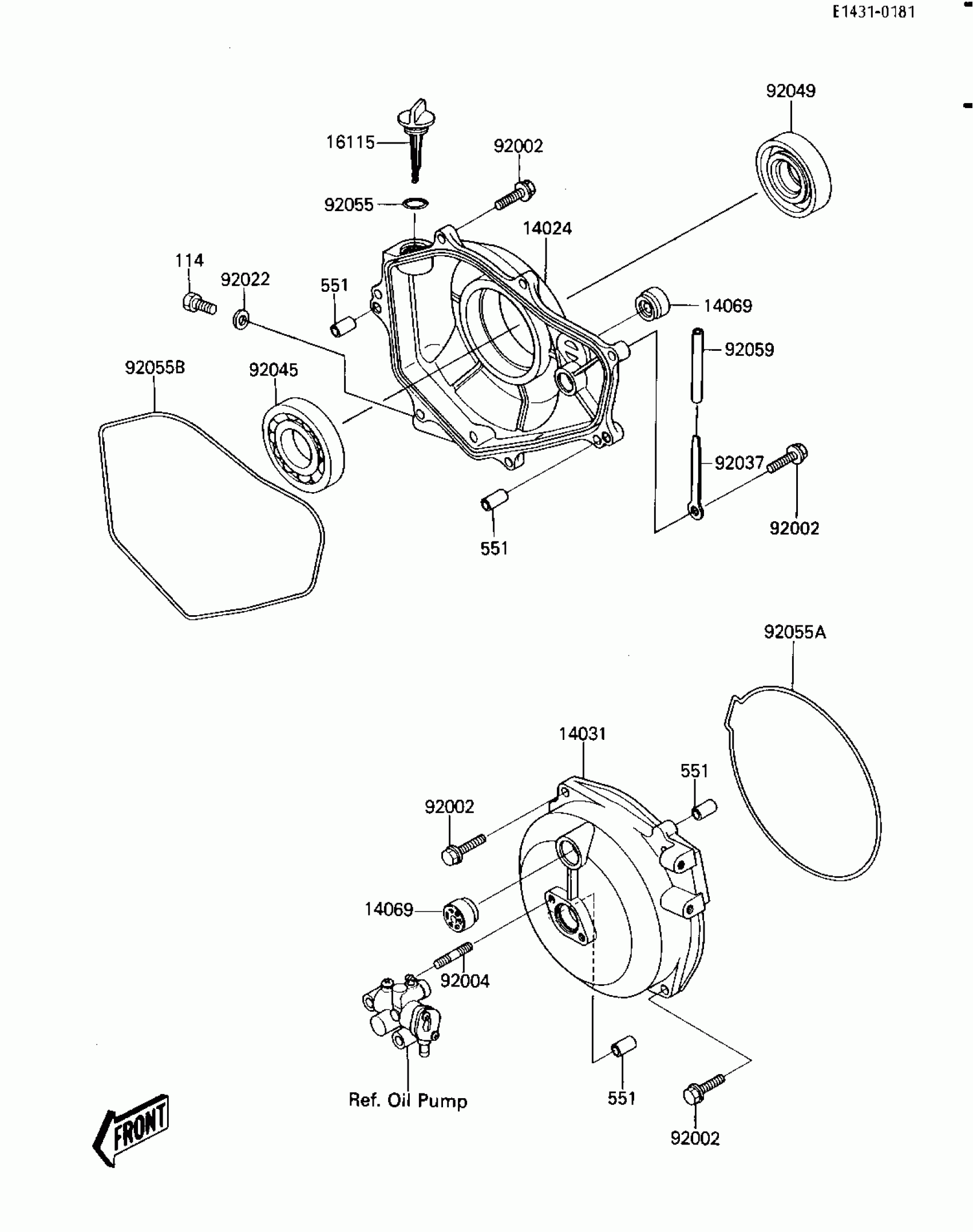

Kawasaki JS300 ENGINE COVERS Diagram

Description

Price

14024

COVER,CLUTCH ONEWAY

14025-3705

Unavailable

14031

COVER-GENERATOR

14031-3703

Unavailable

14069

BREATHER

14069-3702

Unavailable

16115

CAP-OIL FILLER

16115-3701

$7.58

92002

BOLT,6X25

92002-3714

$5.00

92004

STUD

92004-3710

$8.13

92022

WASHER,8.2X16X1

92022-1086

$3.92

92037

CLAMP,L=100

92037-3736

$5.52

92045

BEARING-BALL,16005Z

92045-1030

Unavailable

92049

SEAL-OIL,DC254510

92049-3701

Unavailable

92055

RING-O

92055-012

$1.01

92055A

RING-O,GENERATOR COVER

92055-3704

Unavailable

92055B

RING-O,ONEWAY COVER

92055-3705

Unavailable

114

BOLT-SMALL

114R0814

$3.38

551

PIN-DOWEL

551R0812

$7.91
