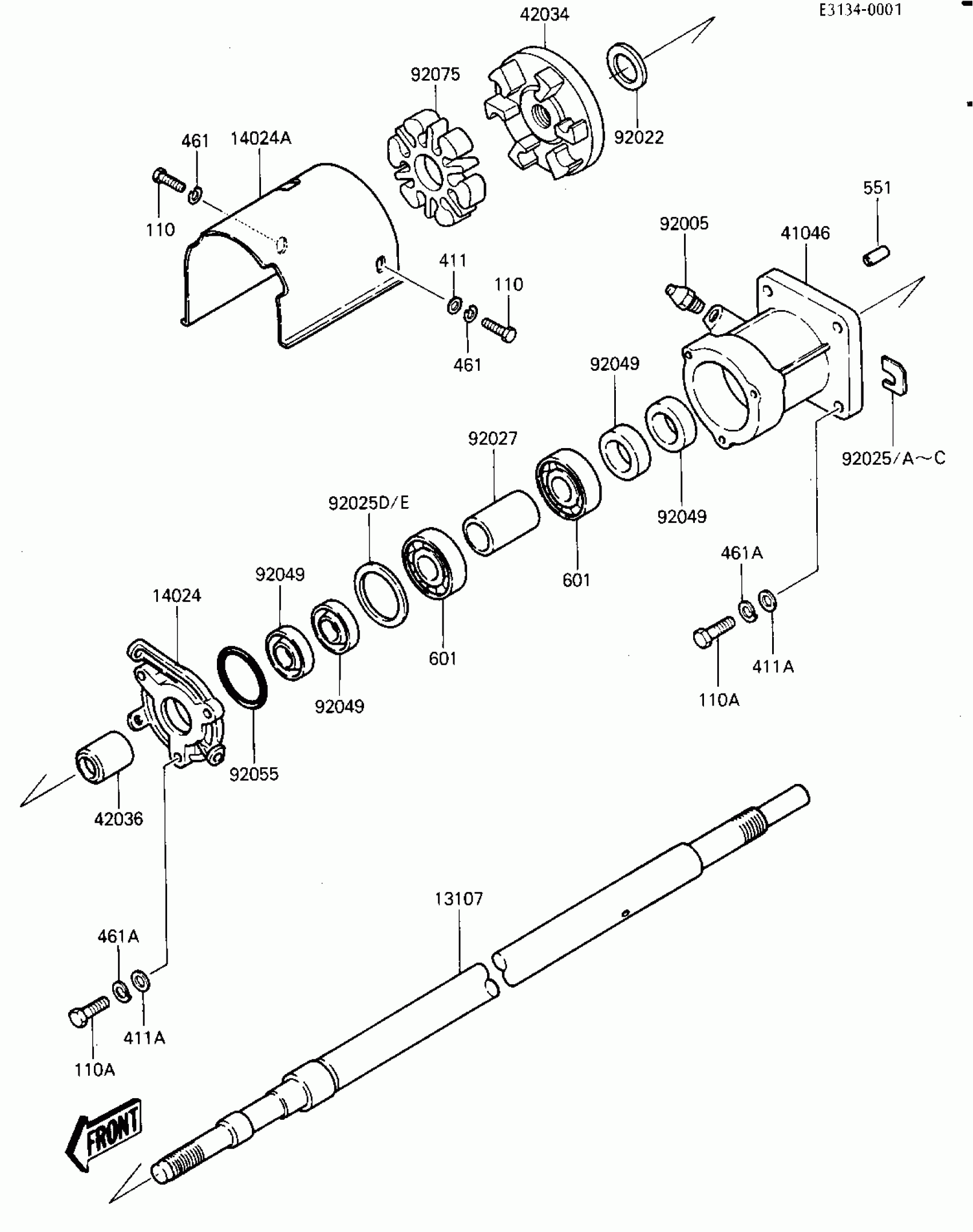

Kawasaki JS300 DRIVE SHAFT Diagram

#

Description
Price

13107

SHAFT,DRIVE

59111-515

$596.58

14024

COVER,BEARING

14025-3008

Unavailable

14024A

COVER,COUPLING

59036-567

Unavailable

41046

HOUSING-BEARING

41046-502

$169.04

42034

COUPLING

42034-3706

Unavailable

42036

SLEEVE,BEARING

42036-501

Unavailable

92005

FITTING,GREASE

92005-501

Unavailable

92022

WASHER,18X26X2.0

92022-3728

Unavailable

92025

SHIM,T=0.3MM

92025-3701

Unavailable

92025A

SHIM,T=0.5MM

92025-3702

Unavailable

92025B

SHIM,T=1.0MM

92025-3703

Unavailable

92025C

SHIM,T=1.5MM

92025-3704

Unavailable

92025D

SHIM,T=0.15

92025-502

Unavailable

92025E

SHIM,T=0.3

92025-503

Unavailable

92027

COLLAR

92027-502

$15.69

92049

SEAL-OIL,AC1799EX

92050-501

Unavailable

92055

RING-O

92055-501

Unavailable

92075

DAMPER,COUPLING

92075-520

$91.03

110

BOLT,6X16

110R0616

$3.13

110A

BOLT,8X25

110R0825

$2.43

411

WASHER-PLAIN,6MM

411S0600

$2.06

411A

WASHER-PLAIN,8MM

411S0800

$3.09

461

WASHER-SPRING,6MM

461S0600

$1.07

461A

WASHER SPRING 8MM

461S0800

$0.65

551

PIN-DOWEL

551R0612

$4.69

601

BEARING-BALL,#6305C3

601B6305

$25.78
