1987 Kawasaki JS300 Cylinder Head/cylinder Diagram

← All diagrams

Find the part on the Cylinder Head/cylinder diagram for your 1987 Kawasaki JS300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

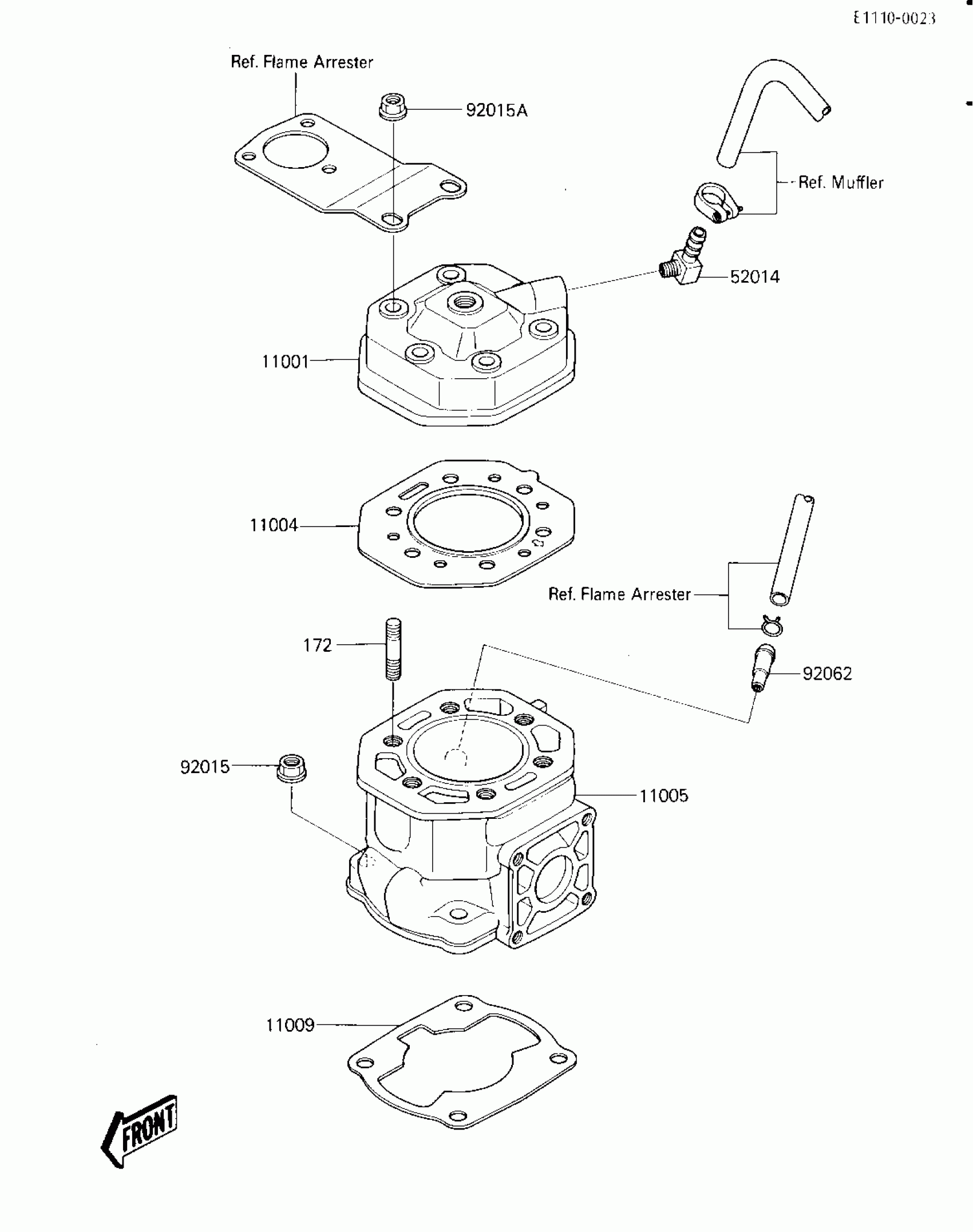

1987 Kawasaki JS300 Cylinder Head/cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11001

HEAD-CYLINDER

11001-3703

1
Out of stock

11004

GASKET-HEAD

11004-3703

1
Out of stock

11005

CYLINDER-ENGINE

11005-3701

1
Out of stock

11009

GASKET,CYLINDER BASE

11009-3706

1
Out of stock

52014

ELBOW

52014-3002

1
Out of stock

92015

NUT,10MM

92015-1649

1
Out of stock

92015A

NUT,FLANGED,8MM

92015-3709

1
Out of stock

92062

NOZZLE

92062-3705

1
Out of stock

172

STUD

92004-3718

1
Out of stock
