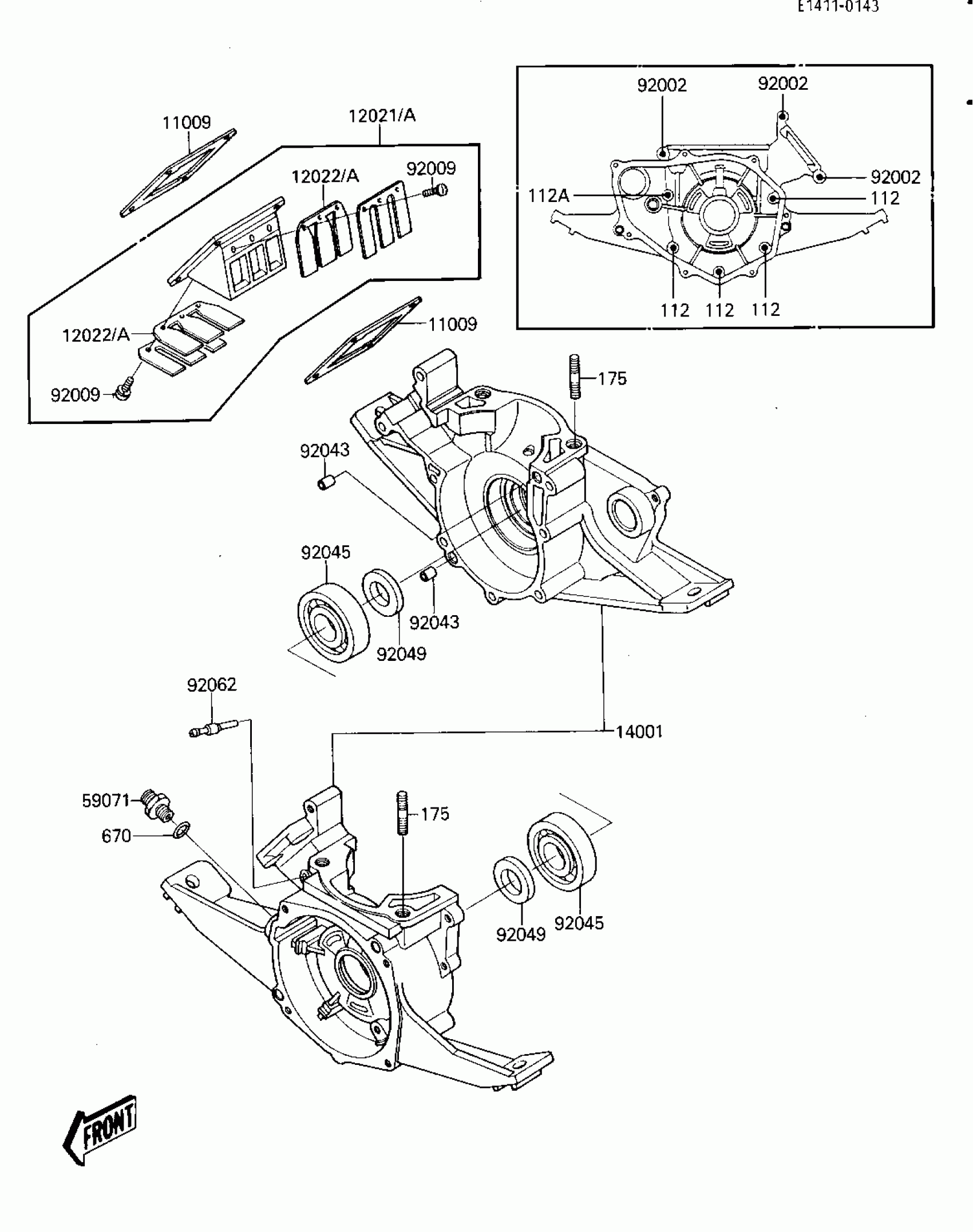

Kawasaki JS300 CRANKCASE/REED VALVE Diagram

Description

Price

11009

GASKET,REED VALVE

11060-3703

$11.22

12021

VALVE ASSY,REED

12021-1007

Unavailable

12022

VALVE-REED

12022-1001

Unavailable

14001

SET-CRANKCASE

14001-5199

Unavailable

59071

JOINT

59071-3001

$4.72

92002

BOLT,6X45

92002-3717

$5.51

92009

SCREW,REED VALVE

92009-1014

$2.05

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92045

BEARING,BALL,#6305SH

92045-1024

Unavailable

92049

SEAL-OIL

92049-1047

$12.40

92062

NOZZLE

92062-3703

$14.61

112

BOLT-UPSET

112H0645

Unavailable

112A

BOLT-UPSET

112H0665

Unavailable

175

BOLT-STUD-FINE,10X35

175R1035

$8.41

670

O RING,16MM

670B2016

$1.04
