Description

Price

13001

PISTON-ENGINE,STD

13001-3705

Unavailable

13002

PIN-PISTON

13002-017

$29.98

13008

RING-SET-PISTON,STD

13008-3701

$65.57

13024

RING-SET-PISTON LL,O/S,1.00

13024-3701

Unavailable

13025

RING-SET-PISTON L,O/S,0.50

13025-3701

Unavailable

13027

PISTON-ENGINE LL,O/S 1.00

13027-3703

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-3703

Unavailable

13031

CRANKSHAFT-COMP

13031-3703

Unavailable

13033

BEARING-SMALL END

13033-1010

$25.15

13034

BEARING,BIG END NEEDL

13034-049

$38.29

13035

PIN-CRANK

13035-3701

Unavailable

13037

CRANKSHAFT,FR

13037-3701

Unavailable

13037A

CRANKSHAFT,RR

13037-3706

Unavailable

13044

SET-CONNECTING ROD

13044-5055

Unavailable

42034

COUPLING

42034-3706

Unavailable

92026

SPACER

92026-3701

$8.43

92027

COLLAR,19X25X24

92027-3701

$34.87

92033

CIRCLIP-PISTON PIN

92036-015

$4.95

670

O RING,14MM

670B2014

$1.19

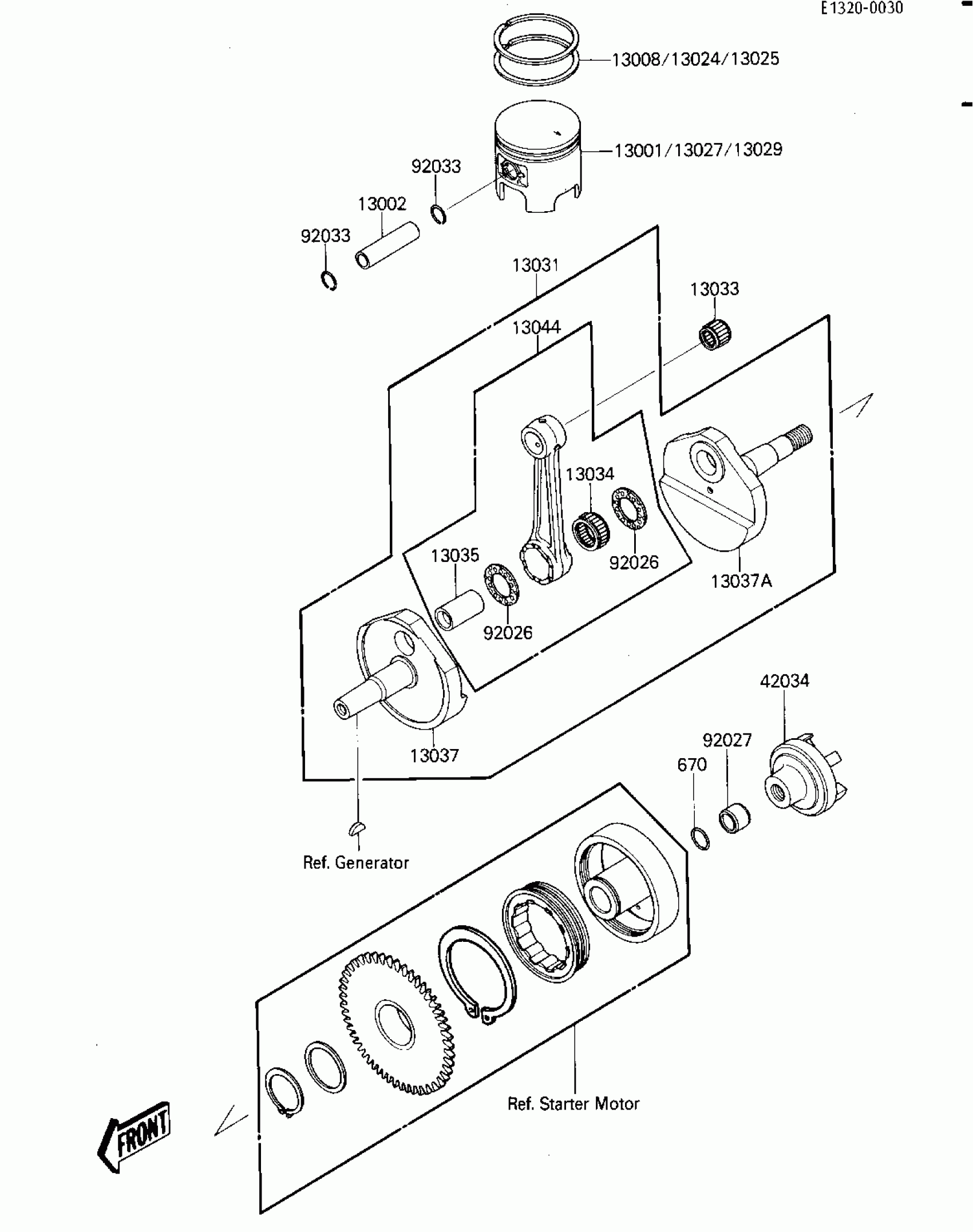

Kawasaki JS300 CRANKSHAFT/PISTON Diagram

PISTON-ENGINE,STD

PIN-PISTON

RING-SET-PISTON,STD

RING-SET-PISTON LL,O/S,1.00

RING-SET-PISTON L,O/S,0.50

PISTON-ENGINE LL,O/S 1.00

PISTON-ENGINE L,O/S 0.50

CRANKSHAFT-COMP

BEARING-SMALL END

BEARING,BIG END NEEDL

PIN-CRANK

CRANKSHAFT,FR

CRANKSHAFT,RR

SET-CONNECTING ROD

COUPLING

SPACER

COLLAR,19X25X24

CIRCLIP-PISTON PIN

O RING,14MM
