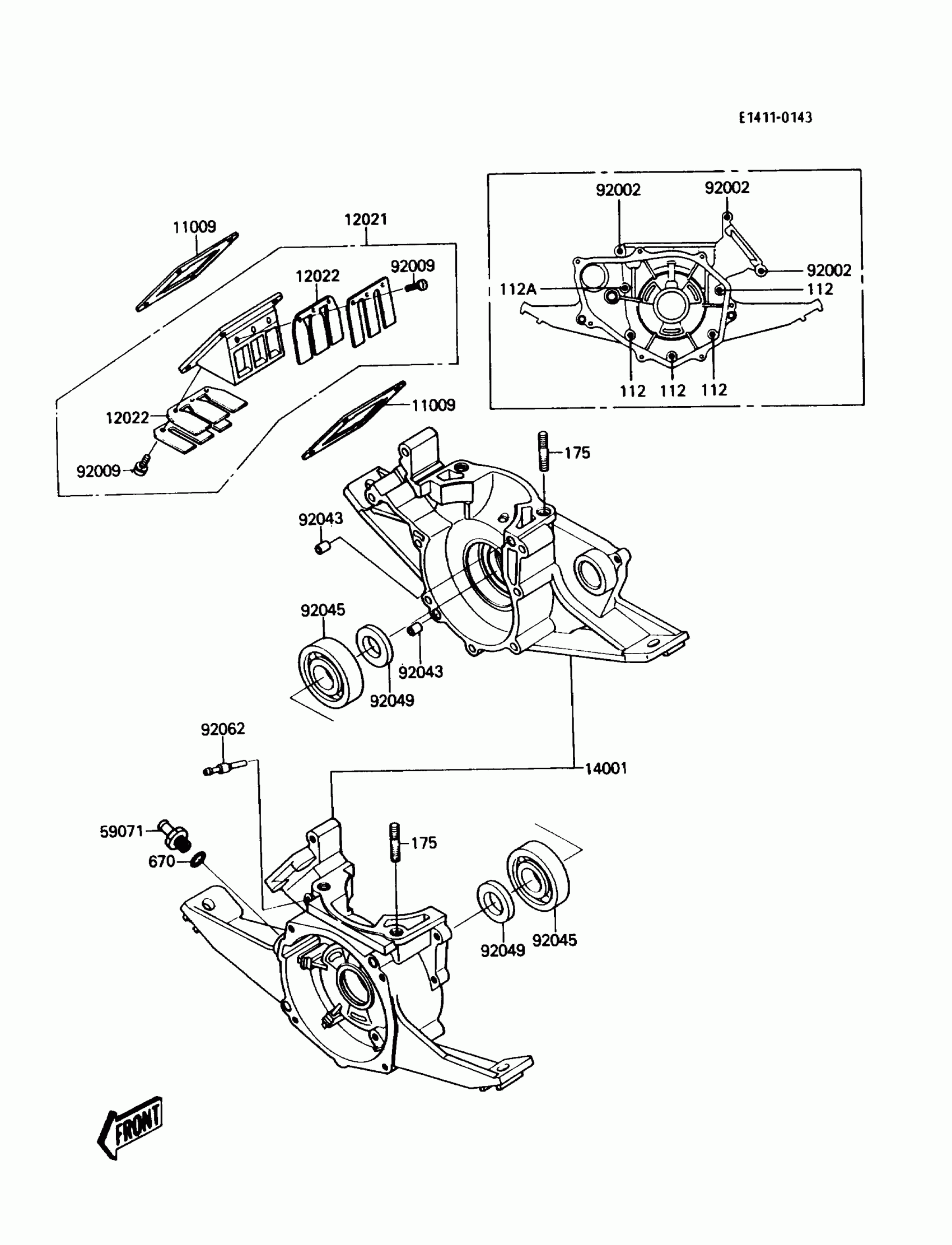

Kawasaki JS300 Crankcase Diagram

Description

Price

11009

GASKET,REED VALVE

11009-3731

Unavailable

12021

VALVE ASSY,REED

12021-1007

Unavailable

12022

VALVE-REED

12022-1001

Unavailable

14001

SET-CRANKCASE

14001-5199

Unavailable

59071

JOINT

59071-3718

Unavailable

92002

BOLT,6X45

92002-3717

$6.05

92009

SCREW,REED VALVE

92009-1014

$2.49

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92045

BEARING,BALL,#6305SH

92045-1024

Unavailable

92049

SEAL-OIL

92049-1047

$16.33

92062

NOZZLE

92062-3703

$15.43

112

BOLT-UPSET

112H0645

$1.78

112A

BOLT-UPSET

112H0665

$1.78

175

BOLT-STUD-FINE,10X35

175R1035

$10.56

670

O RING,16MM

670B2016

$1.36
