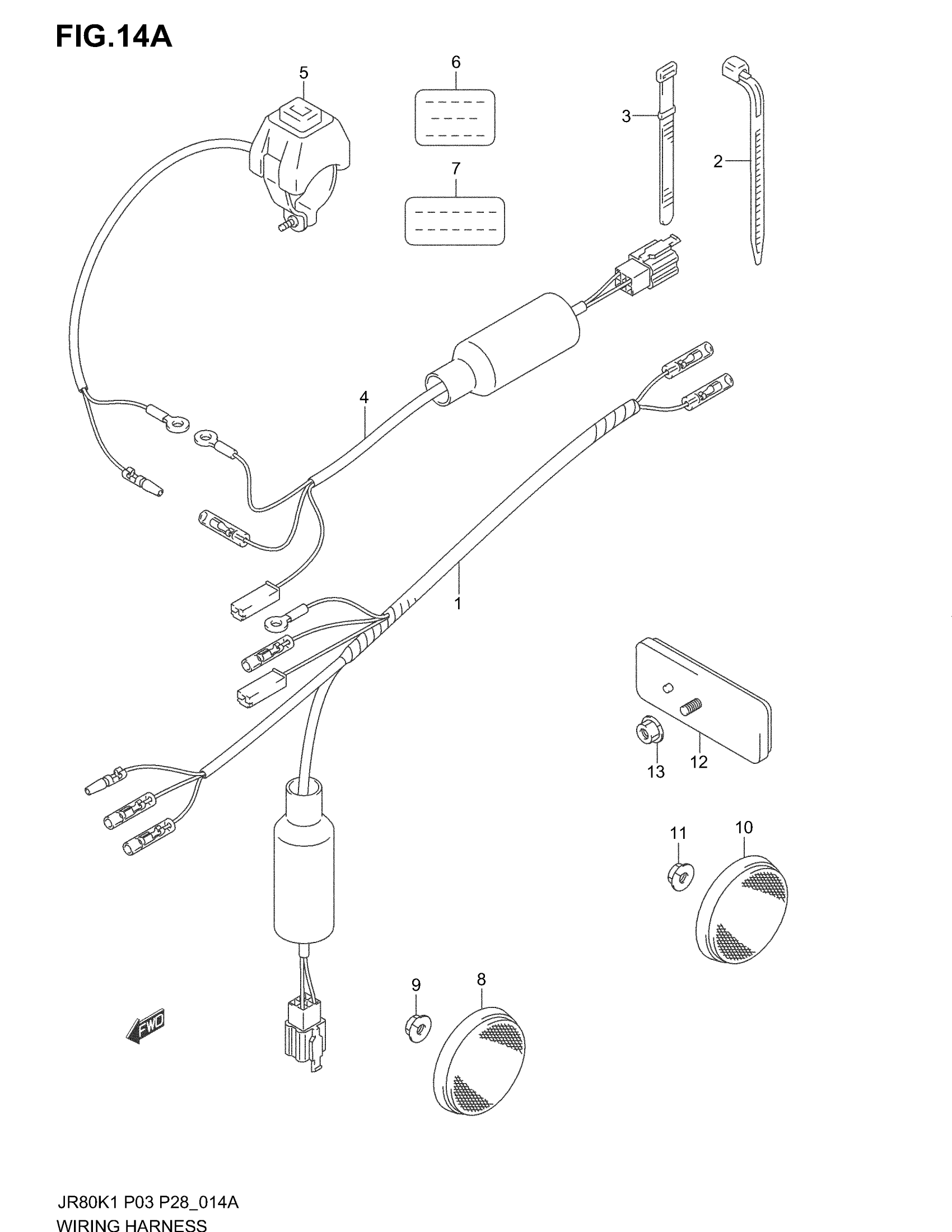

Suzuki JR80 (2004) WIRING HARNESS (MODEL K2/K3/K4) Diagram

#

Description

Price

1

HARNESS, WIRING | P28

36610-03430

Unavailable

2

CLAMP (L:125)

09407-14403

$2.26

2

CLAMP (L:165)

09407-18402

$2.19

3

CLAMP

09407-12402

$3.04

4

WIRE, MAGNETO LEAD | P3

36853-03400

Unavailable

5

SWITCH ASSY, ENGINE STOP

37820-14X50

$48.54

6

LABEL, ENGINE STOP | P3

37238-46401

Unavailable

7

LABEL, ENGINE STOP | P28

37238-46411

Unavailable

8

REFLEX REFLECTOR ASSY, FR SIDE | P28

35950-30910

$30.05

9

NUT | P28 This part replaces 08316-10053.

08316-1005A

$2.19

10

REFLEX REFLECTOR ASSY, REAR | P28

35970-30910

$44.56

11

NUT | P28 This part replaces 08316-20053.

08316-2005A

$2.19

12

REFLECTOR ASSY, RR SIDE | P28 This part replaces 35970-07F00.

35970-07F01

$20.88

13

NUT | P28 This part replaces 08316-20053.

08316-2005A

$2.19
