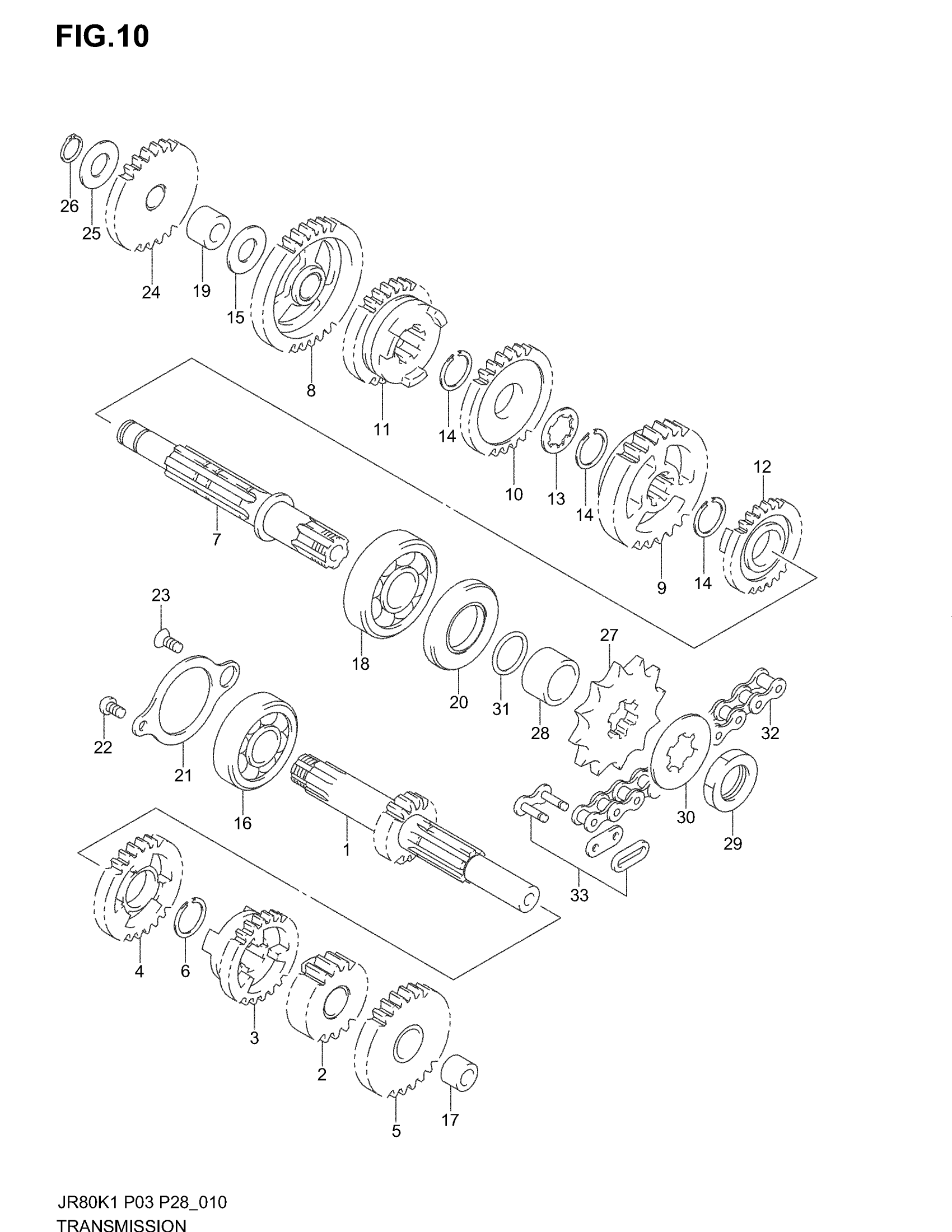

Suzuki JR80 (2004) TRANSMISSION Diagram

COUNTERSHAFT (NT:15)

24121-46001

Unavailable

GEAR, 2ND DRIVE (NT:19)

24220-46000

Unavailable

GEAR, 3RD DRIVE (NT:22)

24231-46001

Unavailable

GEAR, 4TH DRIVE (NT:24)

24241-46000

Unavailable

GEAR, 5TH DRIVE (NT:26) | MODEL K1

24251-46001

Unavailable

GEAR, 5TH DRIVE (NT:26) | MODEL K2/K3/K4 This part replaces 24251-46002.

24251-46001

Unavailable

CIRCLIP

09380-17007

Unavailable

DRIVE SHAFT

24131-46000

Unavailable

GEAR, 1ST DRIVEN (NT:35)

24310-46001

Unavailable

GEAR, 2ND DRIVEN (NT:32)

24321-46001

Unavailable

GEAR, 3RD DRIVEN (NT:29)

24331-46000

Unavailable

GEAR, 4TH DRIVEN (NT:26)

24341-46000

Unavailable

GEAR, 5TH DRIVEN (NT:24)

24351-46000

Unavailable

WASHER (13X24X1)

09160-13006

Unavailable

CIRCLIP

09380-17007

Unavailable

WASHER (17.1X23X1.0)

09167-17003

Unavailable

BEARING (17X40X12)

09262-17023

$16.75

BUSH | INCLUDED CRANKCASE

09303-13001

Unavailable

BEARING

08113-63030

$23.65

BUSH | INCLUDED CRANKCASE

09303-13001

Unavailable

OIL SEAL (21X40X6)

09283-21003

$6.17

HOLDER, BEARING

24741-46000

Unavailable

SCREW | MODEL K1/K2 This part replaces 02112-06103.

02112-0610B

$1.84

SCREW, 6X10 | MODEL K3/K4

09125-06112

$3.50

SCREW | MODEL K1/K2 This part replaces 02122-06123.

02122-0612A

$1.49

SCREW, 6X12 | MODEL K3/K4

09126-06011

$2.03

GEAR, KICK IDLE (NT:26)

26260-46001

Unavailable

WASHER

08211-12261

$2.50

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

SPROCKET, ENGINE (NT:12)

27511-46700

$15.26

SPACER (17X21X13)

09180-17008

$8.58

NUT

09140-16002

$3.16

WASHER (16.1X33X0.8)

09167-16001

$1.87

O RING (D:1,ID:16.8)

09280-17001

$1.49

CHAIN ASSY DRIV | L:112!96; Includes Item(s) 33 This part replaces 27600-20910-112.

27600-20911-112

$27.73

.JOINT SET, CHAIN This part replaces 27620-20910.

27620-20911

$5.30
